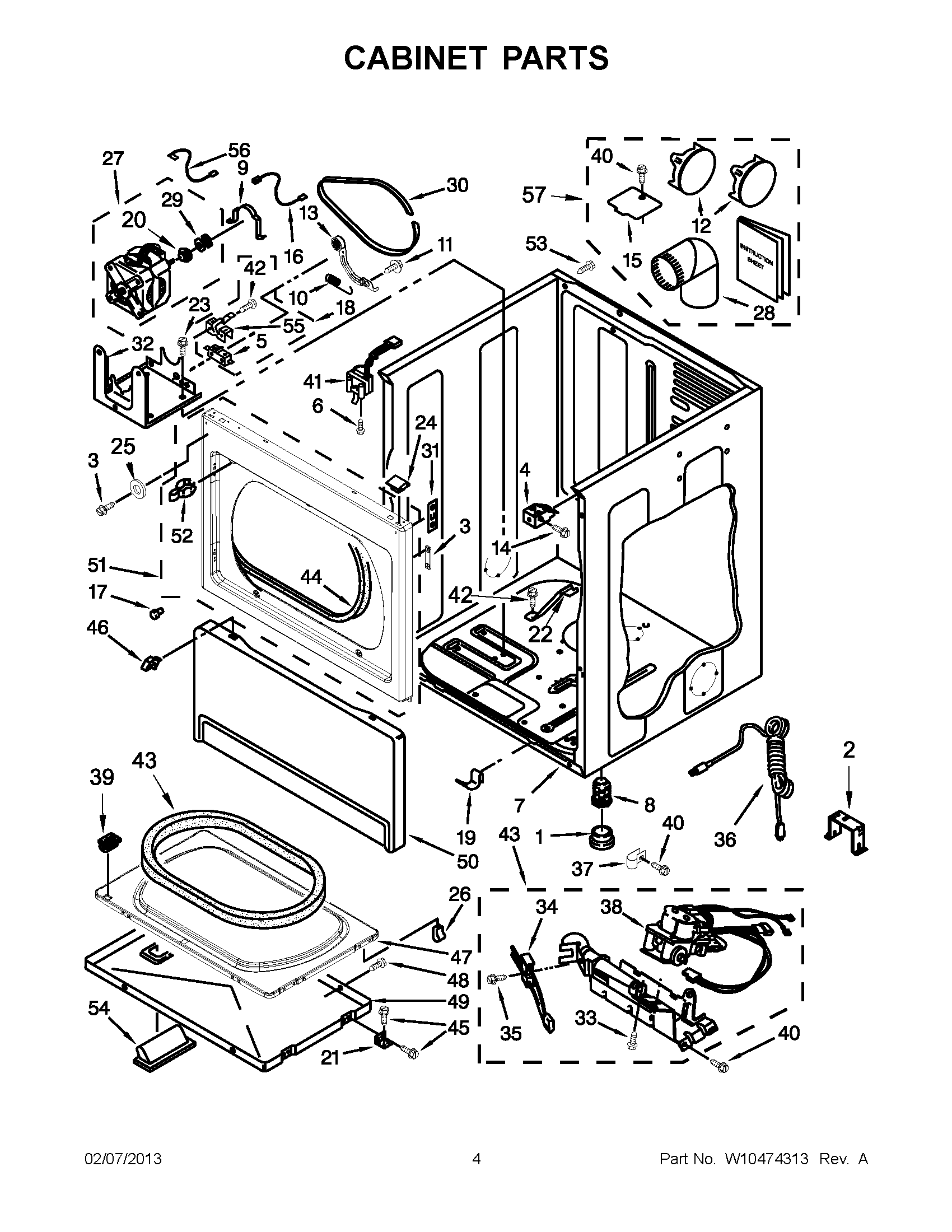

CGM2793BQ0 02 – CABINET PARTS

CGM2793BQ0 02 – CABINET PARTS

Written by

in

CGM2793BQ0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP3391943 Whirlpool Foot Boot
2	Bracket, Support
3	W10191265 Whirlpool Plug
4	3391846 Whirlpool Clip
5	279782 Whirlpool Lid Switch
6	WP3395530 Whirlpool Screw
7	W11417441 Whirlpool Cabinet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	WPW10344193 Whirlpool Idler Pulley
14	681615 Whirlpool Screw
15	WPW10354249 Whirlpool Cover
16	W10167612 Whirlpool Wire
17	693152 Whirlpool Bumper
19	WPW10291934 Whirlpool Clip
20	WP3393657 Whirlpool Belt Retainer
21	WPW10279703 Whirlpool Hinge Assembly
22	W10181903 Whirlpool Bracket
23	SCREW
24	WP345670 Whirlpool Lock
25	Washer
26	WPW10131123 Whirlpool Nut
27	W10841144 Whirlpool Drive Motor
28	WPW10416072 Whirlpool Elbow
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	WP3390902 Whirlpool Clip
32	WP3387118 Whirlpool Base Assembly
33	WP693995 Whirlpool Screw
34	279311 Whirlpool Dryer Flat Igniter with Bracket
35	WPW10366705 Whirlpool Screw
36	W11222083 Whirlpool Power Cord
37	3387561 Whirlpool Clamp
38	279923 Whirlpool Gas Valve
39	279570 Whirlpool Dryer Door Latch Kit
40	WP488729 Whirlpool Refrigerator Door Screw
41	SWITCH-DOOR DRYER
42	WP98129 Whirlpool Screw
43	WP3390735 Whirlpool Door Seal
44	WP3387242 Whirlpool Seal
45	WP488627 Whirlpool Refrigerator Screw
46	WP3388229 Whirlpool Dryer Spring Clip
47	280083 Whirlpool Rear Door
48	W11693756 Whirlpool Screw Assembly
49	W11663440 Whirlpool Door
50	WP3406797 Whirlpool Toe Panel
51	W10242810 Whirlpool Panel
53	W10850756 Whirlpool Screw
54	W11209427 Whirlpool Handle
55	WP8066120 Whirlpool Lever Assembly
56	3398948 Whirlpool Wire
57	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
