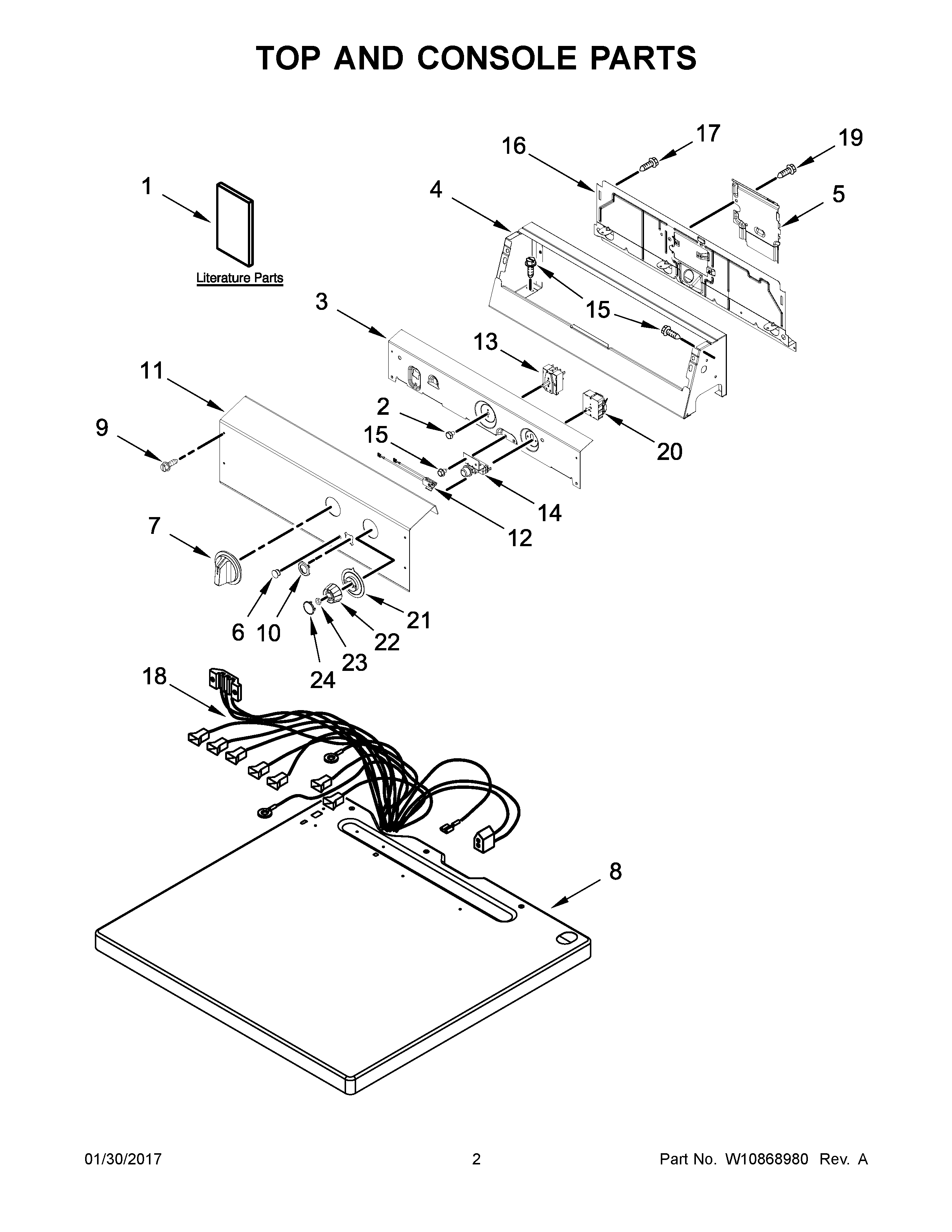

CGM2795FQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AWIRING DIAGRAM
12745 MODEL, INSTALLATION INSTRUCTIONS
2SCREW
3BACK BRACKET, NON-COIN
4W11124005 Whirlpool Console
5W10819767 Whirlpool Cover
6WPW10133502 Whirlpool Lens
7W10492415 Whirlpool Knob
8W10492414 Whirlpool Top
9WPW10131119 Whirlpool Screw
10W10510149 Whirlpool Bezel
11FASCIA
12W10662107 Whirlpool Light Bulb
13WPW10327105 Whirlpool Cycle Switch
14W11097274 Whirlpool Push-To-Start Switch
15WP90767 Whirlpool Screw
16W10863352 Whirlpool Rear Panel
17WP488729 Whirlpool Refrigerator Door Screw
18HARNESS, MAIN
19303776 Whirlpool Dishwasher Screw
20WPW10157942 Whirlpool Timer
21W10492417 Whirlpool Dial
22W10906062 Whirlpool Knob
23W10155650 Whirlpool Nut
24CAP, KNOB
