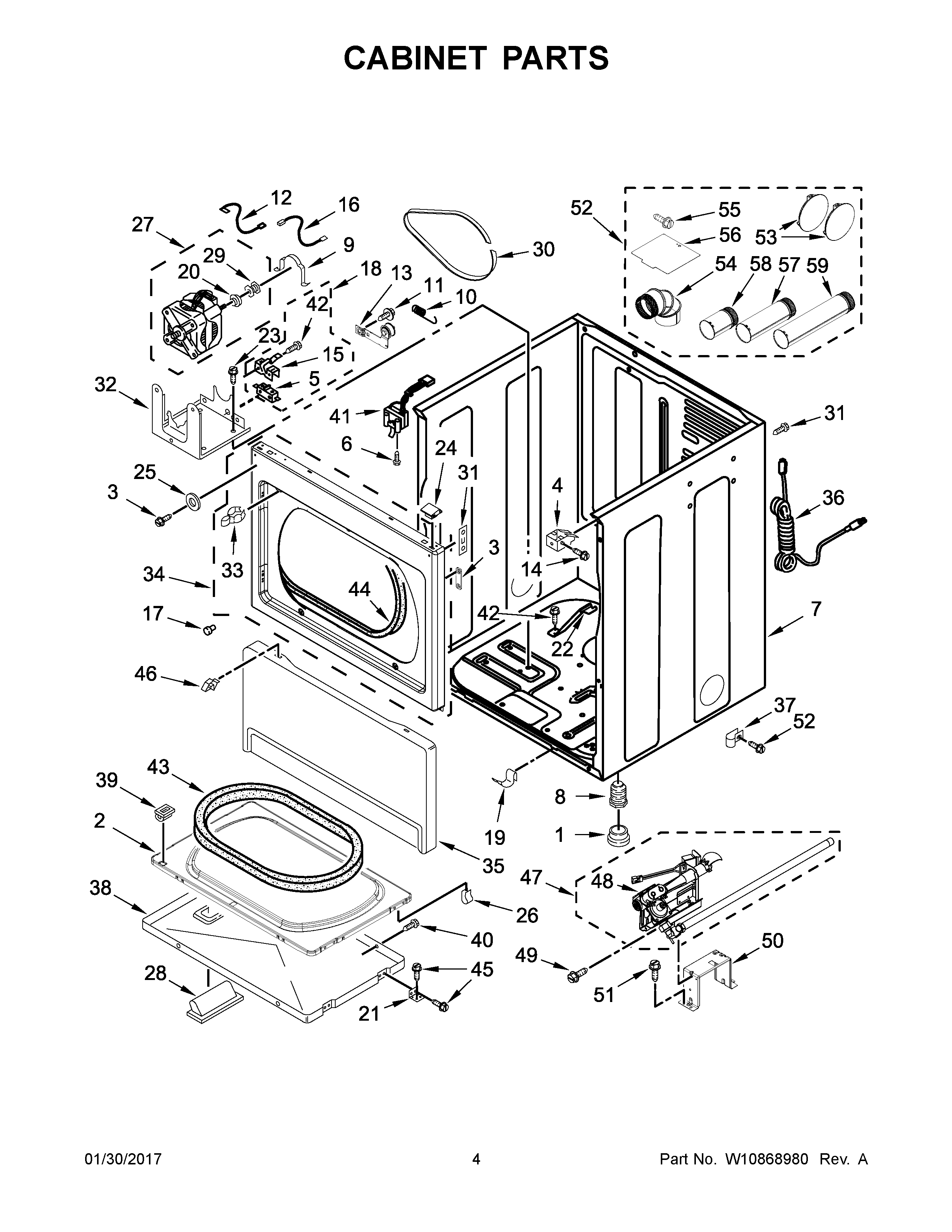

CGM2795FQ0 03 – CABINET PARTS

CGM2795FQ0 03 – CABINET PARTS

Written by

in

CGM2795FQ0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WP3391943 Whirlpool Foot Boot
2280083 Whirlpool Rear Door
3W10191265 Whirlpool Plug
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
6WP3395530 Whirlpool Screw
7W11417441 Whirlpool Cabinet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
123398948 Whirlpool Wire
13WPW10344193 Whirlpool Idler Pulley
14681615 Whirlpool Screw
15WP8066120 Whirlpool Lever Assembly
16W10167612 Whirlpool Wire
17693152 Whirlpool Bumper
19WPW10291934 Whirlpool Clip
20WP3393657 Whirlpool Belt Retainer
21WPW10279703 Whirlpool Hinge Assembly
22W10181903 Whirlpool Bracket
23WP3400077 Whirlpool Screw
24WP345670 Whirlpool Lock
25Washer
26WPW10131123 Whirlpool Nut
27W10841144 Whirlpool Drive Motor
28W11209427 Whirlpool Handle
29WP8066184 Whirlpool Dryer Motor Pulley
30WPW10131172 Whirlpool Belt
31W10850756 Whirlpool Screw
32WP3387118 Whirlpool Base Assembly
34W10242810 Whirlpool Panel
35WP3406797 Whirlpool Toe Panel
36W11628810 Whirlpool Power Cord
373387561 Whirlpool Clamp
38W11663440 Whirlpool Door
39279570 Whirlpool Dryer Door Latch Kit
40W11693756 Whirlpool Screw Assembly
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43WP3390735 Whirlpool Door Seal
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
48279923 Whirlpool Gas Valve
49SCREW
50Bracket, Support
51WP488729 Whirlpool Refrigerator Door Screw
52W10470674 Whirlpool Dryer Side Vent Exhaust Kit
54WPW10416072 Whirlpool Elbow
56WPW10354249 Whirlpool Cover
57WP8563747 Whirlpool Exhaust Pipe
58WPW10331278 Whirlpool Exhaust Pipe
59WP8563749 Whirlpool Exhaust Pipe
