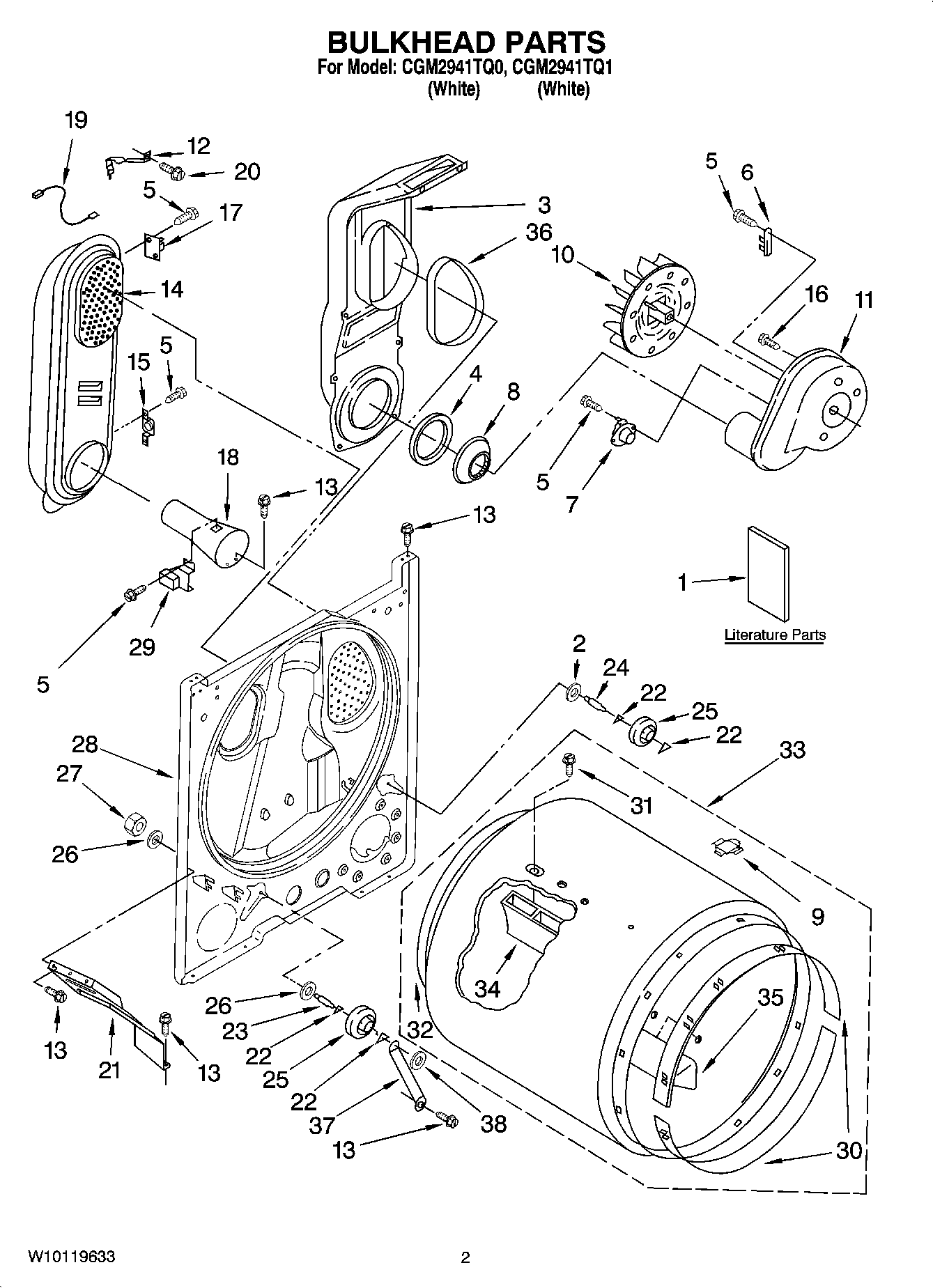

CGM2941TQ0 01 – BULKHEAD PARTS

Products

Position	Product
1	Repair Parts List
1	Label, Wiring Diagram
1	Instructions, Installation
2	WP3388703 Whirlpool Washer
3	W11117429 Whirlpool Chute Assembly
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP3387134 Whirlpool Dryer Cycling Thermostat
8	W11233063 Whirlpool Shield Assembly
9	8066086 Whirlpool Plug
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	279980 Whirlpool Box
16	WP488729 Whirlpool Refrigerator Door Screw
17	W11050897 Whirlpool Dryer High Limit Thermostat
18	WP8066049 Whirlpool Funnel Assembly
19	WP3401707 Whirlpool Wire Assembly
20	WP489463 Whirlpool Refrigerator Screw
21	W11398682 Whirlpool Bracket
22	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
23	SHAFT SUPPORT ROLLER DRYER
24	SHAFT SUPPORT ROLLER DRYER
25	349241T Whirlpool Dryer Drum Support Roller Kit
26	WP348197 Whirlpool Washer Assembly
27	WP3359452 Whirlpool Nut
28	W11178668 Whirlpool Bulkhead
29	WP338906 Whirlpool Dryer Gas Sensor
30	279441 Whirlpool Front Bearing Ring
31	WPW10109200 Whirlpool Screw
32	W10612022 Whirlpool Felt Seal
33	W10899578 Whirlpool Dryer Drum Assembly
34	BAFFLE-DRM
35	WP3403636 Whirlpool Drum Baffle
36	SEAL
37	W11684613 Whirlpool Bracket
38	WP90296 Whirlpool Clip
