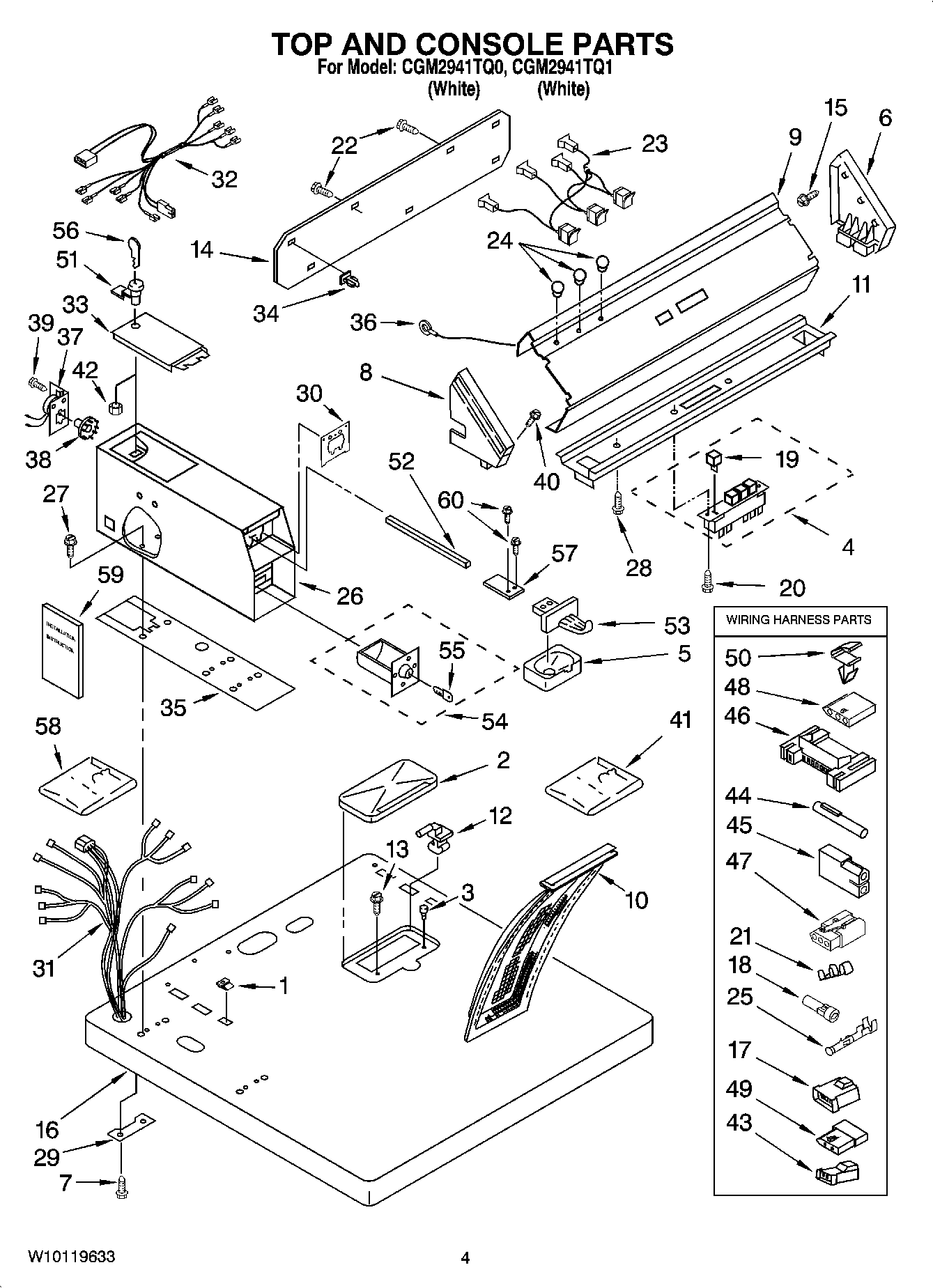

CGM2941TQ0 02 – TOP AND CONSOLE PARTS

CGM2941TQ0 02 – TOP AND CONSOLE PARTS

Written by

in

CGM2941TQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WP357213 Whirlpool Hinge Stopper
2Cover, Lint Screen
3Bumper, Lint Lid
5WP385421 Whirlpool Coin Operated Laundry Funnel
6Cap, End (R.H.)
7W10841059 Whirlpool Screw
8End Cap (L.H.)
9Panel, Control
10WP349639 Whirlpool Lint Filter
11Bracket, Control
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Panel, Rear
15WPW10109200 Whirlpool Screw
16Top
17WP3403498 Whirlpool Connector
18Plug
19SWITCH-PB
20WP489128 Whirlpool Refrigerator Screw
21W10113937 Whirlpool Clamp
22WP693995 Whirlpool Screw
23Lights, Indicator (240 Volts)
24WP3348109 Whirlpool Light Lens
25WP94614 Whirlpool Terminal
26Case, Meter
27W11715721 Whirlpool Screw Assembly
28WP3390631 Whirlpool Screw
293347825 Whirlpool Plate
30279950 Whirlpool Funnel
31Harness, Wiring
323401126 Whirlpool Wire Harness
33W11283272 Whirlpool Washer Dryer Meter Case Access Door
34WP689559 Whirlpool Nut
35WP3954812 Whirlpool Cushion
36Wire, Ground
37W11451464 Whirlpool Dryer Timer
38WP339853 Whirlpool Cam
38WP343777 Whirlpool Cam
38WP3387974 Whirlpool Cam
38WP339854 Whirlpool Cam
38WP339855 Whirlpool Cam
39339805 Whirlpool Screw
40WP388326 Whirlpool Screw
41WP3406965 Whirlpool Coin Chute
42WP90406 Whirlpool Nut
43WP3403499 Whirlpool Connector
44Receptacle
45Receptacle, Latching (2-Way) (Uses Terminal 94614)
463395683 Whirlpool Connector
47WPL 717315
483936144 Whirlpool Connector
49WP717253 Whirlpool Dishwasher Connector
50Following Parts Su
50WP3394427 Whirlpool Clip
51W11315637 Whirlpool Lock Assembly
52WP8576635 Whirlpool Bolt
53W11126319 Whirlpool Washer Dryer Coin Chute
53Inserts (Not Shown
53WPL 8316265
54W11190039 Whirlpool Coin Box Assembly
55WPL ARI144826A
56WPL ARI144827A
573390424 Whirlpool Extension
58WPL 8316524
59WPL 8316532
60WPL 3400086
