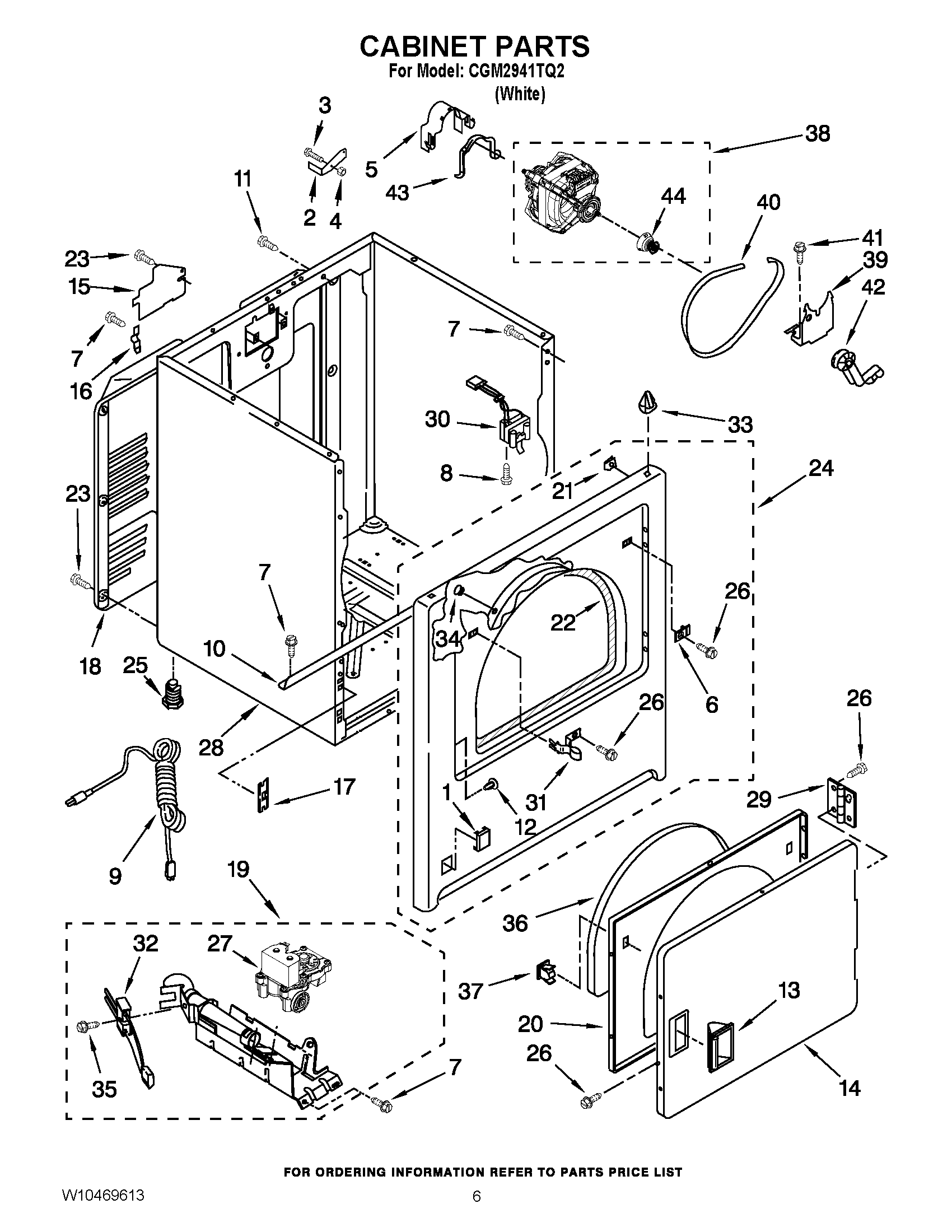

CGM2941TQ2 03 – CABINET PARTS

CGM2941TQ2 03 – CABINET PARTS

Written by

in

CGM2941TQ2 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10811916 Whirlpool Plug
2Bracket, Top Lock
3BOLT, 5/16-18 X 2 3/4
490984 Whirlpool Nut
5WP3404162 Whirlpool Clamp
6WP3403630 Whirlpool Plug
7WP3390631 Whirlpool Screw
8WP3395530 Whirlpool Screw
9W11222083 Whirlpool Power Cord
10BRACKET, CABINET
11W10850756 Whirlpool Screw
12WP3404413 Whirlpool Plug
13WP3405184 Whirlpool White Door Handle
14W10861227 Whirlpool Door Assembly
15W11539855 Whirlpool Refrigerator Pump
16WP8066217 Whirlpool Hinge
17W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
18280043 Whirlpool Rear Panel
19BURNER ASSEMBLY (60 HZ) (REFER TO PAGES 8 & 9 FOR FURTHER BURNER BREAKDOWN)
20WP3402341 Whirlpool Door
21WP98234 Whirlpool Nut
22W11035878 Whirlpool Bearing and Seal
23WP693995 Whirlpool Screw
24W10248059 Whirlpool Panel
26WP488627 Whirlpool Refrigerator Screw
27279923 Whirlpool Gas Valve
288533643 Whirlpool Dryer White Cabinet
29WPW10362431 Whirlpool Hinge Assembly
30SWITCH-DOOR DRYER
31W11429589 Whirlpool Strike
32279311 Whirlpool Dryer Flat Igniter with Bracket
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
35WPW10366705 Whirlpool Screw
36SEAL-DOOR DRYER
37WP3389441 Whirlpool Door Catch
38279827 Whirlpool Dryer Drive Motor
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
42WP691366 Whirlpool Dryer Idler Pulley Assembly
43CLAMP
44WP8066184 Whirlpool Dryer Motor Pulley
