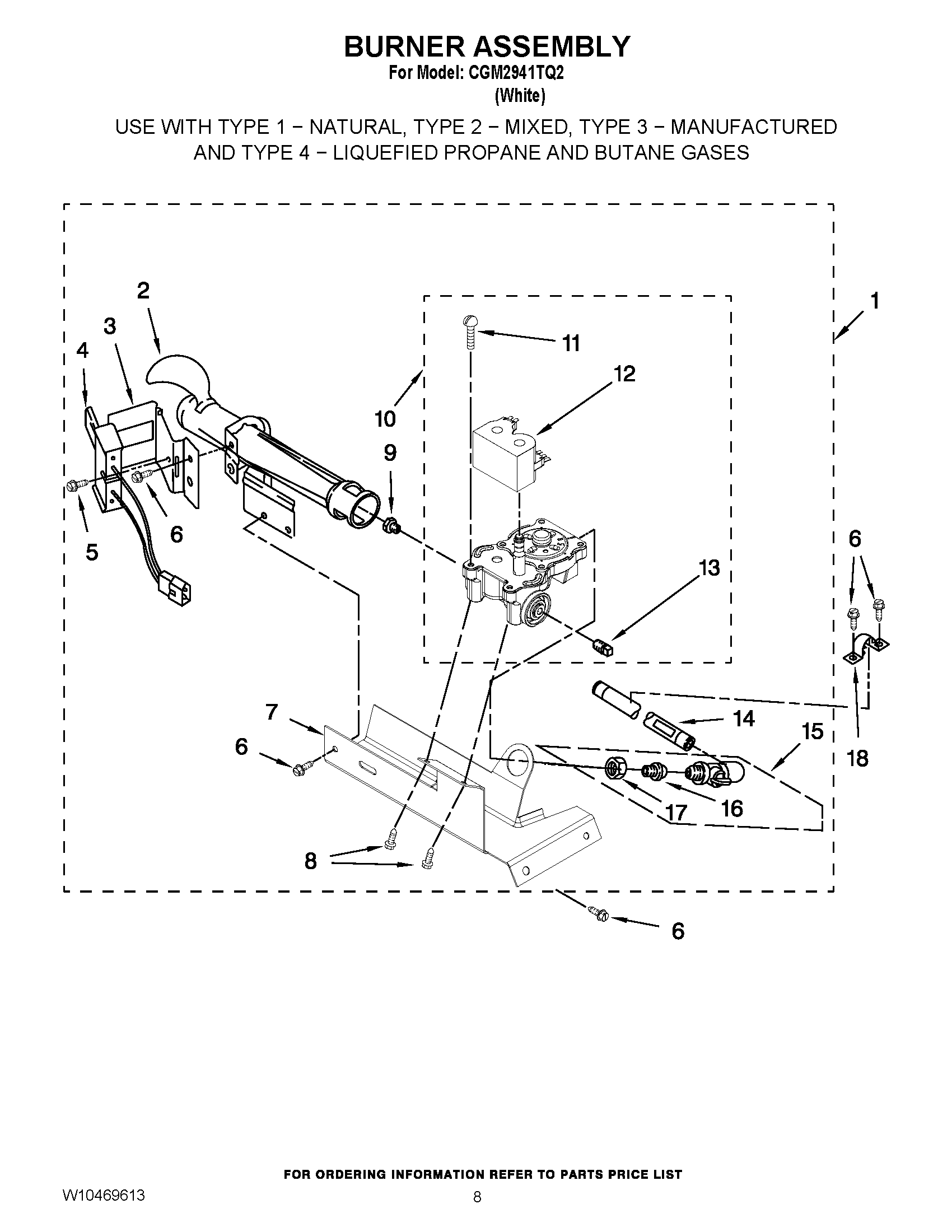

CGM2941TQ2 04 – BURNER ASSEMBLY

Products

Position	Product
NI	49572A Whirlpool Dryer Propane Gas Conversion Kit
1	BURNER ASSEMBLY (60 HZ) (REFER TO PAGES 8 & 9 FOR FURTHER BURNER BREAKDOWN)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP234868 Whirlpool Gas Orifice
9	Orifice, Burner (Type 1)
10	279923 Whirlpool Gas Valve
11	326049536 Whirlpool Screw
12	WPW10328463 Whirlpool Valve Coil
13	W10295523 Whirlpool Plug
14	PIPE, GAS SUPPLY
15	VALVE, GAS
16	3393767 Whirlpool Pipe
17	Nut, Compression
18	341029 Whirlpool Clamp
