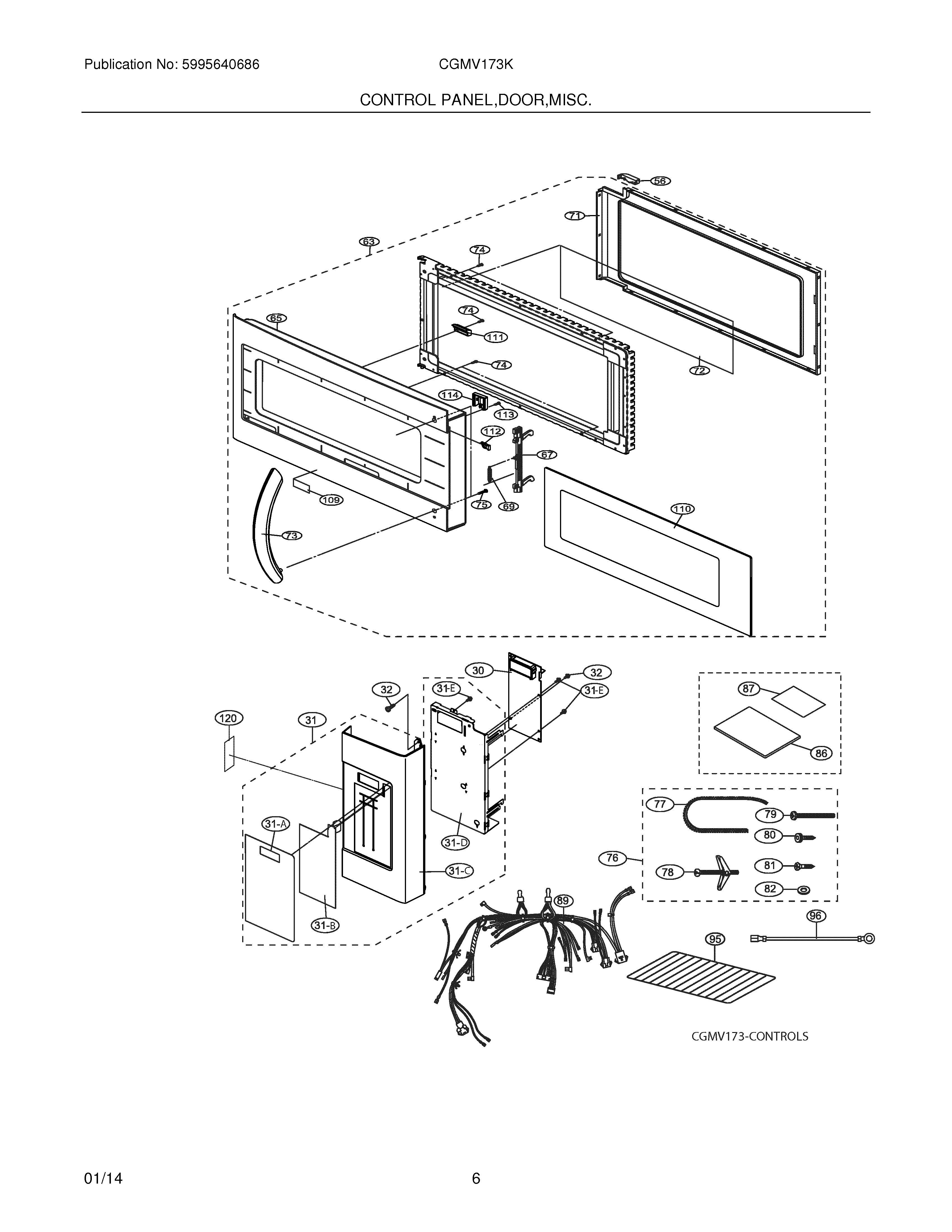

CGMV173KWC 05 – CONTROL PANEL,DOOR,MISCELLANEOUS

CGMV173KWC 05 – CONTROL PANEL,DOOR,MISCELLANEOUS

Written by

in

CGMV173KWC 05 – CONTROL PANEL,DOOR,MISCELLANEOUS

Products

PositionProduct
305304481625 Frigidaire Microwave Control Board
31AWCI 5304473810
31CCover,control panel ,whiteWhen replacing item 31C, items 31Aand 31B must also be
31WCI 5304473807
31ESCREW, 3MM X 8MM
31BWCI 5304473813
31DWCI 5304473819
325304467710 Frigidaire Microwave Screw
56WCI 5304468199
63WCI 5304473821
65WCI 5304473825
675304440314 Frigidaire Microwave Latch
695304440316 Frigidaire Microwave Spring Assembly
71WCI 5304440320
72WCI 5304468205
73WCI 5304473829
745304451517 Frigidaire Microwave Screw
75WCI 5304473832
765304464349 Frigidaire Microwave HARDWARE
77WCI 5303318761
78WCI 5303318762
795304453895 Frigidaire Microwave Screw
805304502863 Frigidaire Microwave Screw
81WCI 5304453723
82WCI 5304453724
86WCI 5304468216
87WCI 5304468217
89WCI 5304492946
95WCI 5304440338
96WCI 5304467828
109WCI 5304471837
110WCI 5304473833
111WCI 5304467794
112WCI 5304473836
1135304456930 Frigidaire Microwave Screw
114WCI 5304473839
120LABEL, USER CAUTION
