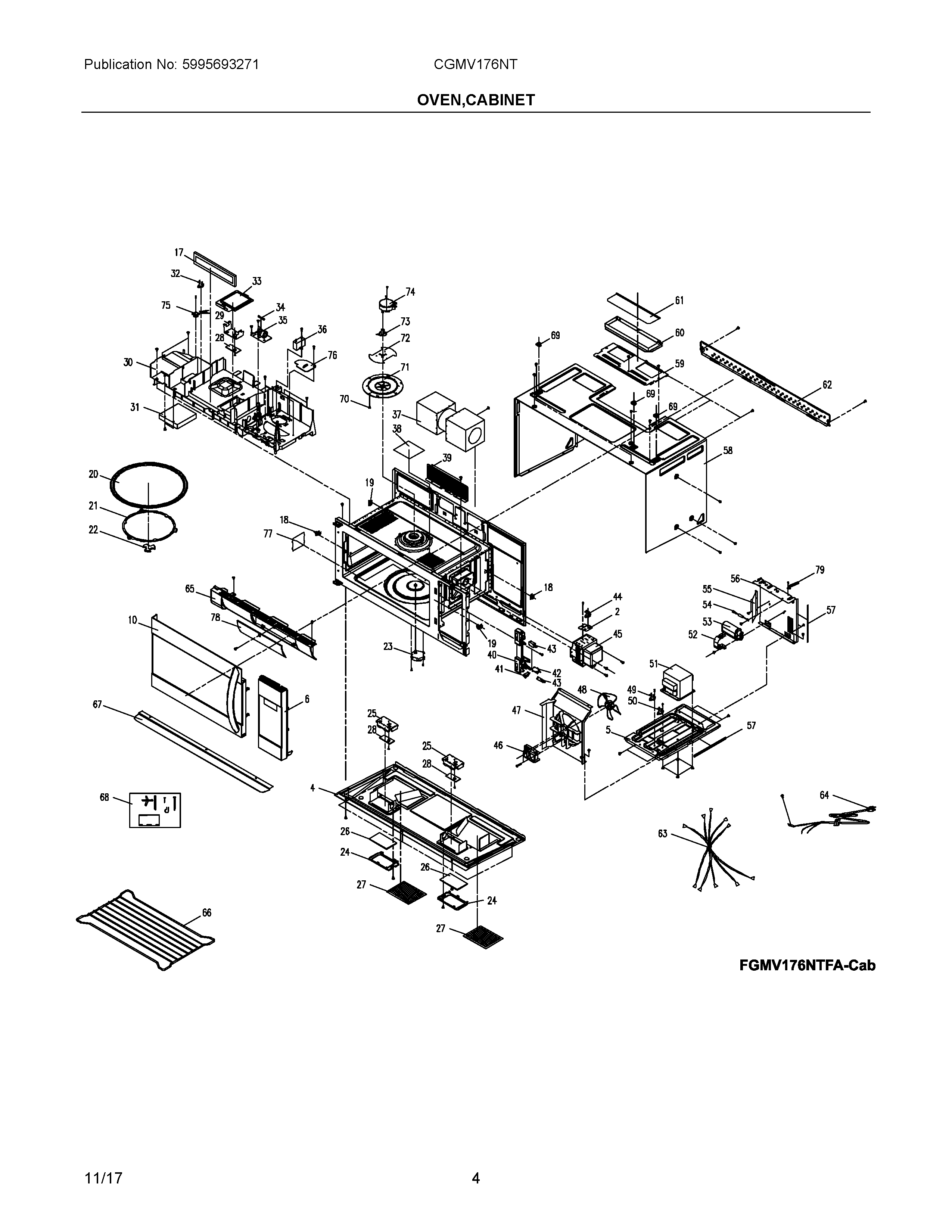

CGMV176NTFA 02 – OVEN, CABINET

CGMV176NTFA 02 – OVEN, CABINET

Written by

in

CGMV176NTFA 02 – OVEN, CABINET

Products

Position	Product
NI	WCI 5304472496
2	5304509333 Frigidaire Microwave Bracket
4	5304509660 Frigidaire Microwave Base
5	5304509418 Frigidaire Microwave Base
6	5304509661 Frigidaire Microwave Assembly-Control
10	5304509638 Frigidaire Microwave Assembly Door
17	OTRFILTER Frigidaire Microwave PureAir Carbon Filter
18	5304509642 Frigidaire Microwave Support Assembly
19	5304509643 Frigidaire Microwave Support Bracket
20	5304509621 Frigidaire Microwave Glass Tray
21	5304509438 Frigidaire Microwave Support Glass Tray
22	5304509622 Frigidaire Microwave Drive Coupling Glass Tray
23	5304509440 Frigidaire Microwave Motor
24	5304509441 Frigidaire Microwave Frame
25	5304509442 Frigidaire Microwave Cover
26	5304509443 Frigidaire Microwave Lens
27	5304509444 Frigidaire Microwave Filter
28	5304499540 Frigidaire Microwave Lamp Assembly
29	5304509446 Frigidaire Microwave Bracket
30	5304509644 Frigidaire Duct
31	5304509448 Frigidaire Microwave Vent
32	5304509449 Frigidaire Microwave Thermostat
33	5304509450 Frigidaire Microwave Cover
34	5304509451 Frigidaire Microwave Fuse
35	5304509452 Frigidaire Microwave Filter
36	CAPACITOR, START
37	5304509624 Frigidaire Microwave Motor
38	5304509455 Frigidaire Microwave Tape
39	5304509456 Frigidaire Microwave Cover
40	LATCH HOOK
41	5304509458 Frigidaire Microwave Lever Assembly
42	5304509459 Frigidaire Microwave Micro Switch
43	SWITCH
44	5304509469 Frigidaire Microwave Thermostat
45	5304509470 Frigidaire Microwave Magnetron
46	5304509471 Frigidaire Microwave Motor
47	5304509472 Frigidaire Microwave Duct
48	5304509473 Frigidaire Microwave Fan Blade
49	5304509474 Frigidaire Microwave High Limit Thermostat
50	5304509475 Frigidaire Microwave Thermostat
51	5304509476 Frigidaire Microwave Transformer
52	5304509477 Frigidaire Retainer
53	5304509478 Frigidaire Microwave Capacitor
54	5304509479 Frigidaire Microwave Diode
55	5304509480 Frigidaire Microwave Vent
56	5304509481 Frigidaire Microwave Plate
57	5304509482 Frigidaire Microwave Cushion
58	5304509483 Frigidaire Microwave Cabinet
59	5304509484 Frigidaire Microwave Cover
60	5304509485 Frigidaire Microwave Vent Damper
61	5304509486 Frigidaire Microwave Vent Damper
62	5304509487 Frigidaire Microwave Mounting Bracket
63	WCI 5304512517
64	5304512501 Frigidaire Power Cord
65	5304509646 Frigidaire Microwave Stainless Steel Vent Grille
66	5304509647 Frigidaire Microwave Shelf Assembly
67	5304509648 Frigidaire Microwave Shield
68	5304503192 Frigidaire Microwave Mounting Kit
69	5304509436 Frigidaire Microwave Mounting Nut Kit
70	5304509625 Frigidaire Microwave Pin
71	5304509626 Frigidaire Microwave Cover Assembly
72	5304509649 Frigidaire Microwave Blade Fan
73	5304509650 Frigidaire Microwave Shaft Assembly
74	5304509651 Frigidaire Microwave Motor
75	5304509652 Frigidaire Microwave Sensor
76	5304509628 Frigidaire Microwave Baffle
77	5304509435 Frigidaire Microwave Waveguide Cover
78	5304512503 Frigidaire Microwave Door
79	5304509491 Frigidaire Spacer
