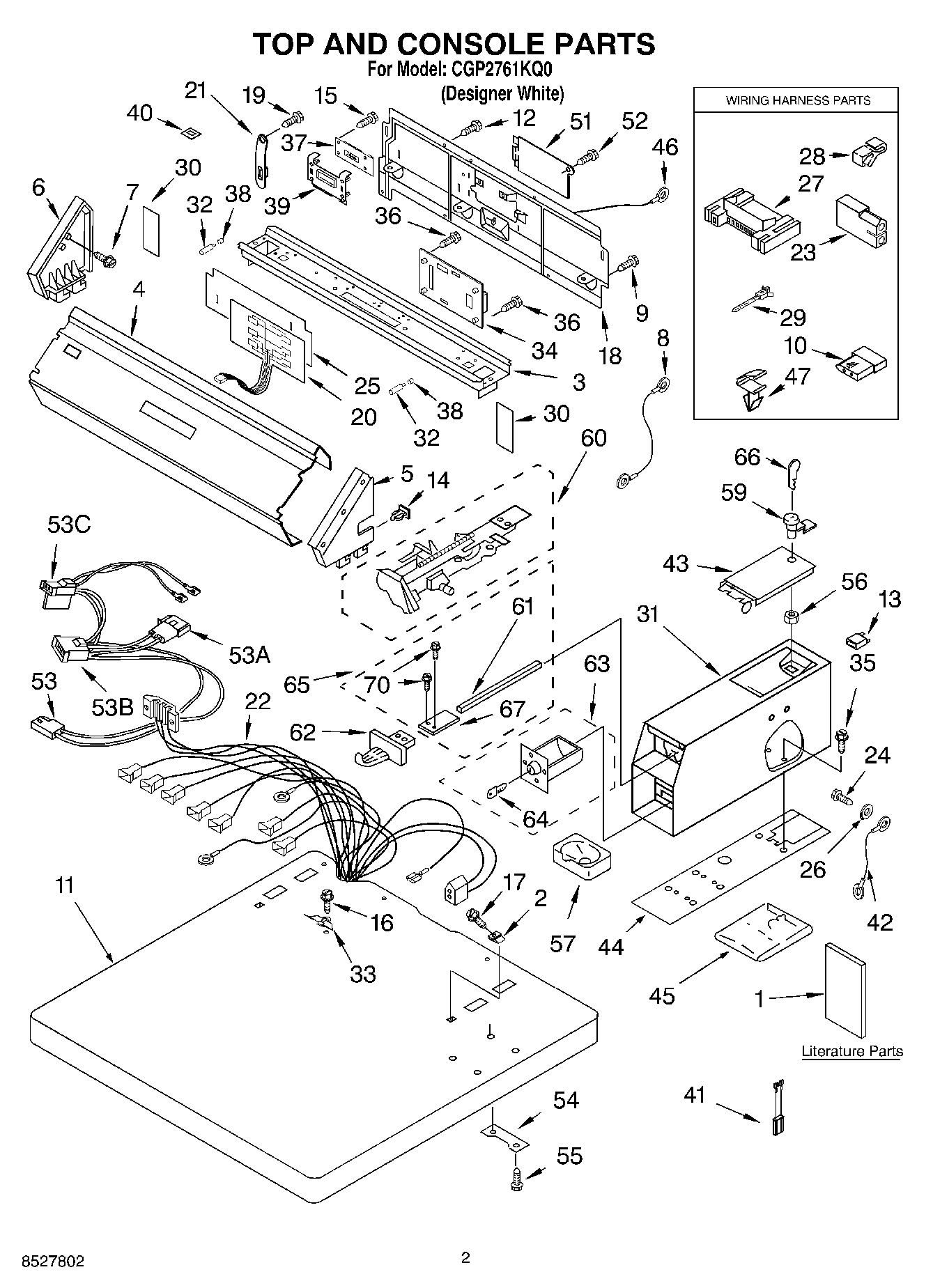

CGP2761KQ0 02 – TOP AND CONSOLE, LITERATURE

CGP2761KQ0 02 – TOP AND CONSOLE, LITERATURE

Written by

in

CGP2761KQ0 02 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Repair Parts List)
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Tech Sheet)
1Literature Parts (Instructions, Installation)
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Wire, Ground
9WP3390631 Whirlpool Screw
103936144 Whirlpool Connector
11Top
12WP693995 Whirlpool Screw
13Switch, Service Diagnostic
14WP689559 Whirlpool Nut
15WPW10139210 Whirlpool Screw
16WP355214 Whirlpool Screw
17WP8281182 Whirlpool Screw Assembly
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20Switch, Membrane
21WP8568314 Whirlpool Strap
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24339805 Whirlpool Screw
25Backer Plate
26W11170663 Whirlpool Washer
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
30Backer Plate, Side (2)
31WPW10461200 Whirlpool Case
32Mounting Stud
33Clip, Static Ground
34Control Board
35W11715721 Whirlpool Screw Assembly
36WPW10366705 Whirlpool Screw
37Board, Display
38Cap, Stud
39Lens, Display
40Clip (2)
41A.C. Line Filter
42Wire, Ground
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44WP3954812 Whirlpool Cushion
45279950 Whirlpool Funnel
46Wire, Ground
47WP3394427 Whirlpool Clip
51W10819767 Whirlpool Cover
52WP90767 Whirlpool Screw
53BWP3403498 Whirlpool Connector
53CWP3403499 Whirlpool Connector
53WP3401850 Whirlpool Wire Harness
53APlug, 3-Way
543347825 Whirlpool Plate
55W10841059 Whirlpool Screw
56WP90406 Whirlpool Nut
57WP385421 Whirlpool Coin Operated Laundry Funnel
