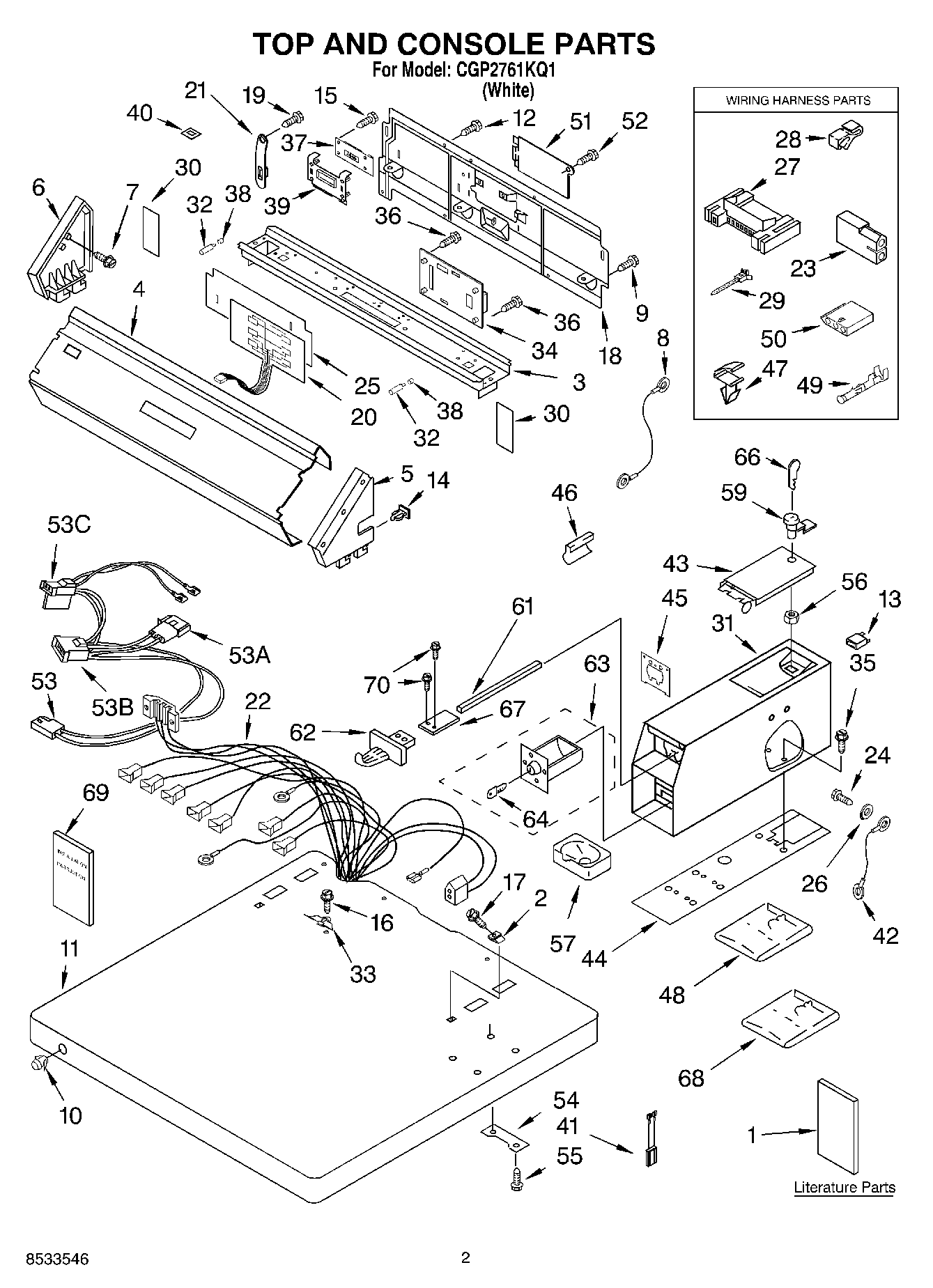

CGP2761KQ1 01 – TOP AND CONSOLE PARTS

CGP2761KQ1 01 – TOP AND CONSOLE PARTS

Written by

in

CGP2761KQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Repair Parts List)
1Literature Parts (Tech Sheet)
1Literature Parts (Instructions, Installation)
1Literature Parts (Wiring Diagram)
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Wire, Ground
9WP3390631 Whirlpool Screw
10Top Lock
10WP387371 Whirlpool Plug
11Top
12WP693995 Whirlpool Screw
13Switch, Service Diagnostic
14WP689559 Whirlpool Nut
15WPW10139210 Whirlpool Screw
16WP355214 Whirlpool Screw
17WP8281182 Whirlpool Screw Assembly
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20Switch, Membrane
21WP8568314 Whirlpool Strap
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24339805 Whirlpool Screw
25Backer Plate
26W11170663 Whirlpool Washer
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
30Backer Plate, Side (2)
31WPW10461200 Whirlpool Case
32Mounting Stud
33Clip, Static Ground
34Control Board
35W11715721 Whirlpool Screw Assembly
36WPW10366705 Whirlpool Screw
37Board, Display
38Cap, Stud
39Lens, Display
40Clip (2)
41A.C. Line Filter
42Wire, Ground
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44WP3954812 Whirlpool Cushion
45279950 Whirlpool Funnel
46Protector, Support
47WP3394427 Whirlpool Clip
48WP3406965 Whirlpool Coin Chute
49WP94614 Whirlpool Terminal
503936144 Whirlpool Connector
51W10819767 Whirlpool Cover
52WP90767 Whirlpool Screw
53WP3401850 Whirlpool Wire Harness
53APlug, 3-Way
53BWP3403498 Whirlpool Connector
53CWP3403499 Whirlpool Connector
543347825 Whirlpool Plate
55W10841059 Whirlpool Screw
56WP90406 Whirlpool Nut
57WP385421 Whirlpool Coin Operated Laundry Funnel
59W11315637 Whirlpool Lock Assembly
61WP8576635 Whirlpool Bolt
62W11126319 Whirlpool Washer Dryer Coin Chute
62Inserts (Not Shown
62WPL 8316265
63W11190039 Whirlpool Coin Box Assembly
64WPL ARI144835A
66WPL ARI144836A
673390424 Whirlpool Extension
68WPL 8316524
69WPL 8316532
70WPL 3400086
70WPL C4889201
70WPL B0592401
