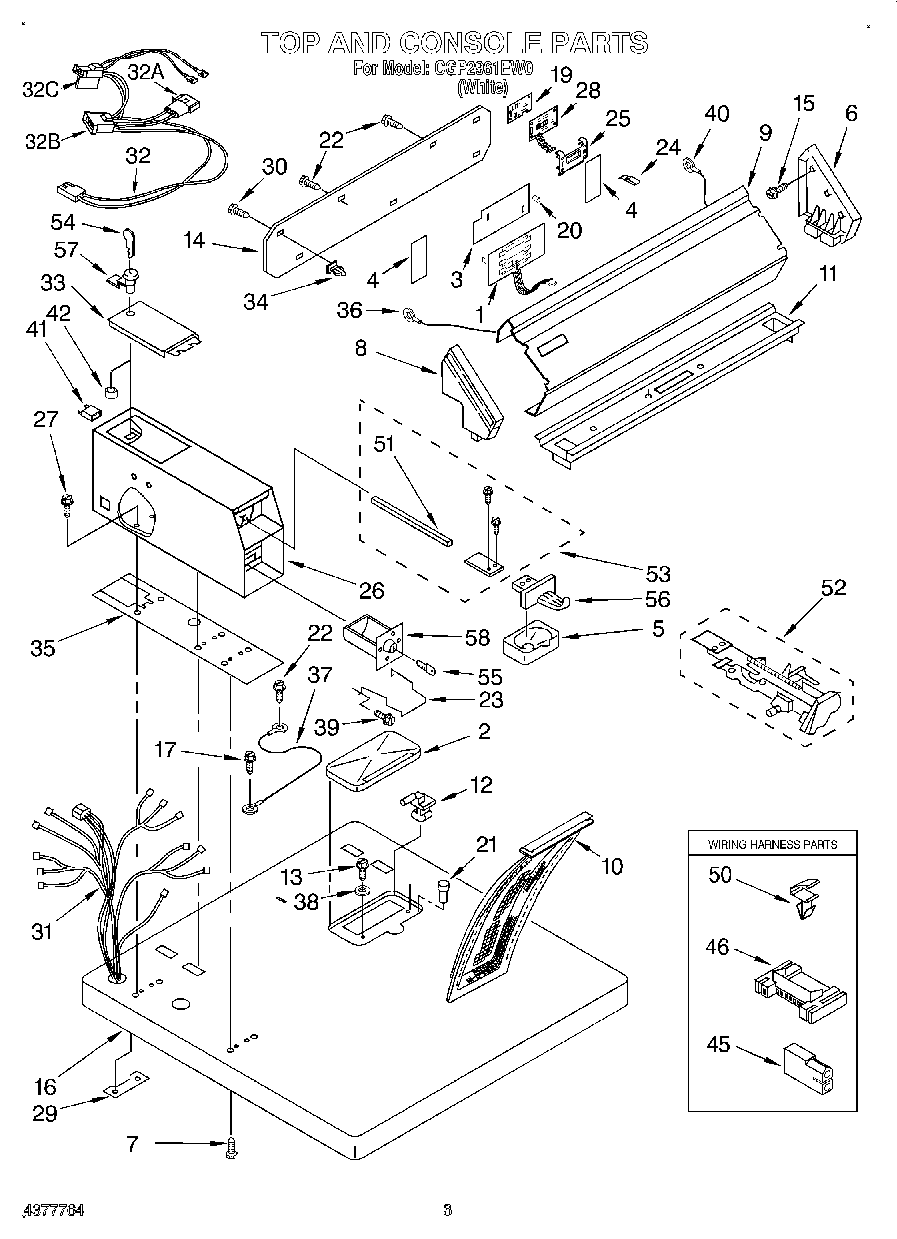

CGP2961EW0 02 – TOP AND CONSOLE

Products

Position	Product
1	Switch, Membrane
2	Cover, Lint Screen (White)
3	Backer Plate
4	Backer Plate, Side (2)
5	WP385421 Whirlpool Coin Operated Laundry Funnel
6	Cap, End (R.H.)
7	W10841059 Whirlpool Screw
8	W11686050 Whirlpool Drive Motor
9	Panel, Control
10	WP349639 Whirlpool Lint Filter
11	Bracket, Control
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Bracket, Control
15	WPW10109200 Whirlpool Screw
16	Top
17	WP90767 Whirlpool Screw
19	Control Board
20	Cap, Stud
21	Bumper, Lint Lid
22	SCREW
23	Guide, Drawer
24	Clip (2)
25	Lens, Display
26	Case, Meter
27	W11715721 Whirlpool Screw Assembly
28	Display Board
29	3347825 Whirlpool Plate
30	WP308685 Whirlpool Microwave Screw
31	Harness, Wiring
32	WP3401850 Whirlpool Wire Harness
32A	Plug, 3-Way
32C	WP3403499 Whirlpool Connector
32B	WP3403498 Whirlpool Connector
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
34	WP689559 Whirlpool Nut
35	WP3954812 Whirlpool Cushion
36	Wire, Ground
37	Wire, Ground
38	Washer
39	339805 Whirlpool Screw
40	Wire, Ground
41	Switch, Service Diagnostic
42	WP90406 Whirlpool Nut
45	Receptacle, Latching (2-Way) (Uses Terminal 94614)
46	3395683 Whirlpool Connector
50	WP3394427 Whirlpool Clip
