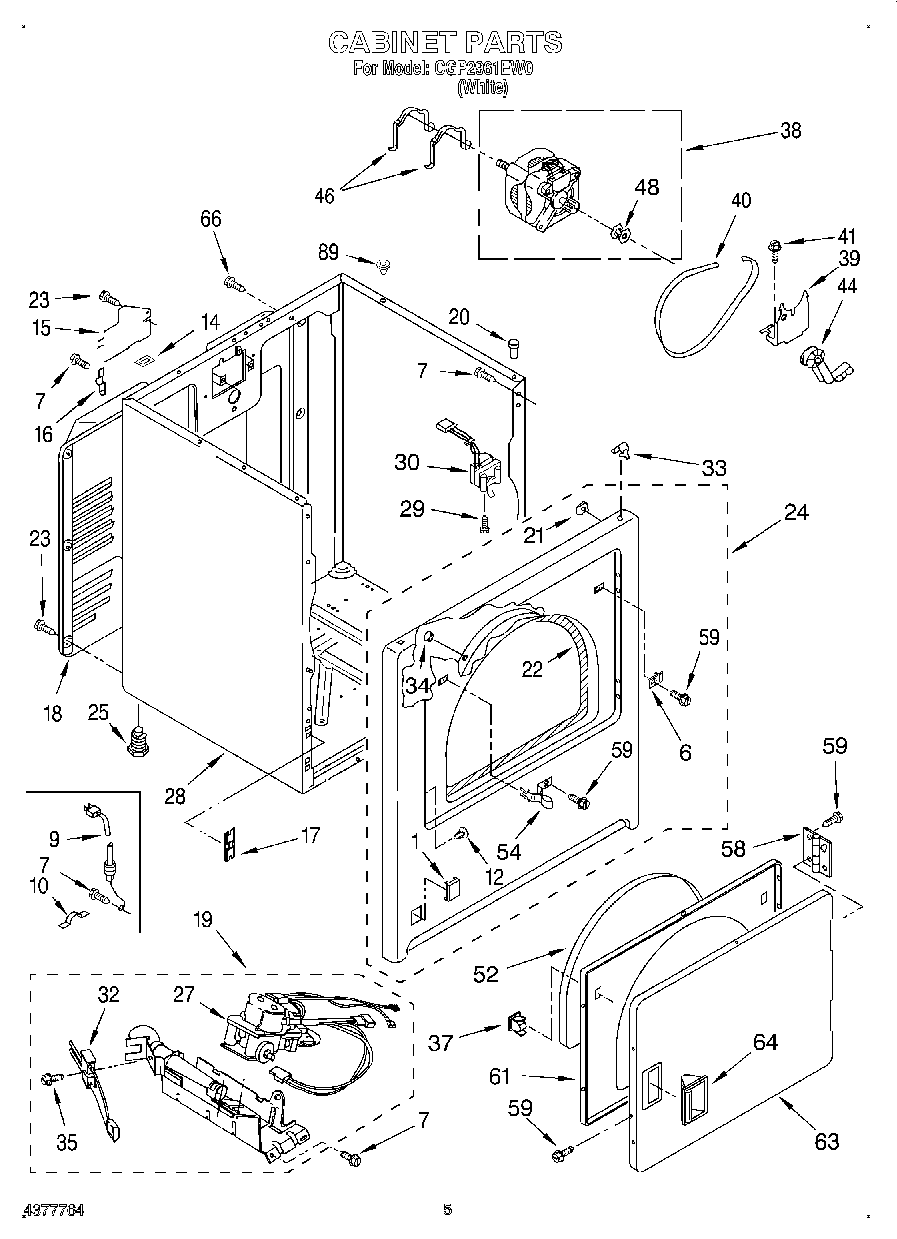

CGP2961EW0 03 – CABINET

CGP2961EW0 03 – CABINET

Written by

in

CGP2961EW0 03 – CABINET

Products

PositionProduct
1Plug, Front Panel (White)
6WP3403630 Whirlpool Plug
7SCREW
9W11222083 Whirlpool Power Cord
108528351 Whirlpool Clip
12WP3404413 Whirlpool Plug
1418849 Whirlpool Pad
15W11539855 Whirlpool Refrigerator Pump
16WP8066217 Whirlpool Hinge
17W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
18280043 Whirlpool Rear Panel
19Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
21WP98234 Whirlpool Nut
22W11035878 Whirlpool Bearing and Seal
23WP693995 Whirlpool Screw
24Front Panel Assembly
2549621 Whirlpool Leveling Feet
27279923 Whirlpool Gas Valve
28Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
29WP3395530 Whirlpool Screw
30WP3406105 Whirlpool Door Switch
32279311 Whirlpool Dryer Flat Igniter with Bracket
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
35WPW10366705 Whirlpool Screw
37279570 Whirlpool Dryer Door Latch Kit
38279827 Whirlpool Dryer Drive Motor
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
48WP8066184 Whirlpool Dryer Motor Pulley
52SEAL-DOOR DRYER
54W11429589 Whirlpool Strike
58WPW10362431 Whirlpool Hinge Assembly
59WP488627 Whirlpool Refrigerator Screw
61WP3402341 Whirlpool Door
63W10861227 Whirlpool Door Assembly
64WP3405184 Whirlpool White Door Handle
66W10850756 Whirlpool Screw
89Locator, Top
