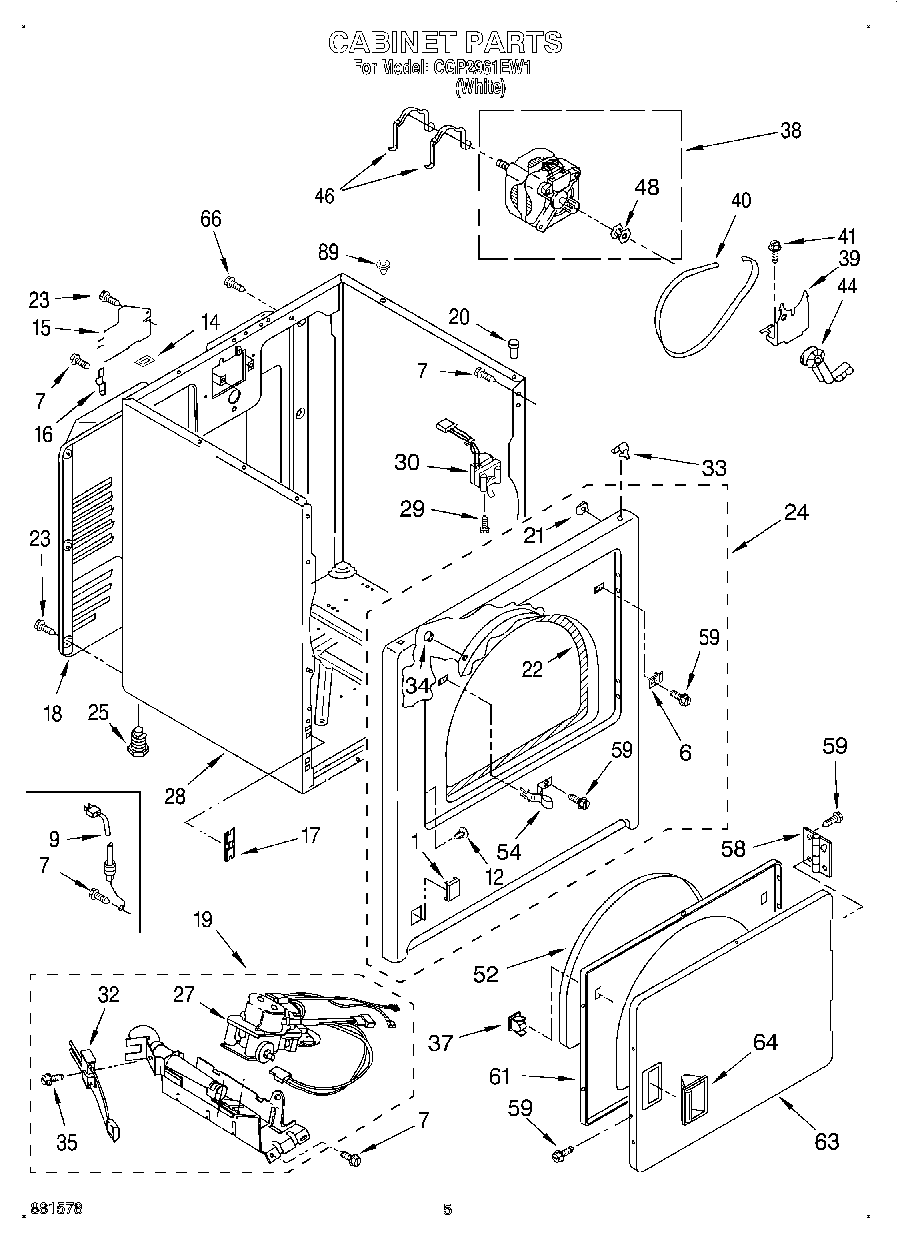

| 1 | Plug, Front Panel (White) |
| 6 | WP3403630 Whirlpool Plug |
| 7 | SCREW |
| 9 | W11222083 Whirlpool Power Cord |
| 12 | WP3404413 Whirlpool Plug |
| 14 | 18849 Whirlpool Pad |
| 15 | W11539855 Whirlpool Refrigerator Pump |
| 16 | WP8066217 Whirlpool Hinge |
| 17 | W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip |
| 18 | 280043 Whirlpool Rear Panel |
| 19 | Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown) |
| 20 | Locator, Top |
| 21 | WP98234 Whirlpool Nut |
| 22 | W11035878 Whirlpool Bearing and Seal |
| 23 | WP693995 Whirlpool Screw |
| 24 | Front Panel Assembly |
| 25 | 49621 Whirlpool Leveling Feet |
| 27 | 279923 Whirlpool Gas Valve |
| 28 | Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White) |
| 29 | WP3395530 Whirlpool Screw |
| 30 | WP3406105 Whirlpool Door Switch |
| 32 | 279311 Whirlpool Dryer Flat Igniter with Bracket |
| 33 | WP18776 Whirlpool Lock |
| 34 | 279220 Whirlpool Clip |
| 35 | WPW10366705 Whirlpool Screw |
| 37 | 279570 Whirlpool Dryer Door Latch Kit |
| 38 | 279827 Whirlpool Dryer Drive Motor |
| 39 | WP348780 Whirlpool Base |
| 40 | 341241 Whirlpool Dryer Drum Belt |
| 41 | 3400500 Whirlpool Screw |
| 44 | WP691366 Whirlpool Dryer Idler Pulley Assembly |
| 46 | WP660658 Whirlpool Clamp |
| 48 | WP8066184 Whirlpool Dryer Motor Pulley |
| 52 | SEAL-DOOR DRYER |
| 54 | W11429589 Whirlpool Strike |
| 58 | WPW10362431 Whirlpool Hinge Assembly |
| 59 | WP488627 Whirlpool Refrigerator Screw |
| 61 | WP3402341 Whirlpool Door |
| 63 | W10861227 Whirlpool Door Assembly |
| 64 | WP3405184 Whirlpool White Door Handle |
| 66 | W10850756 Whirlpool Screw |
| 89 | Locator, Top |
