CGP350SET1SS CONTROL PANEL & COOKTOP

CGP350SET1SS CONTROL PANEL & COOKTOP

Written by

in

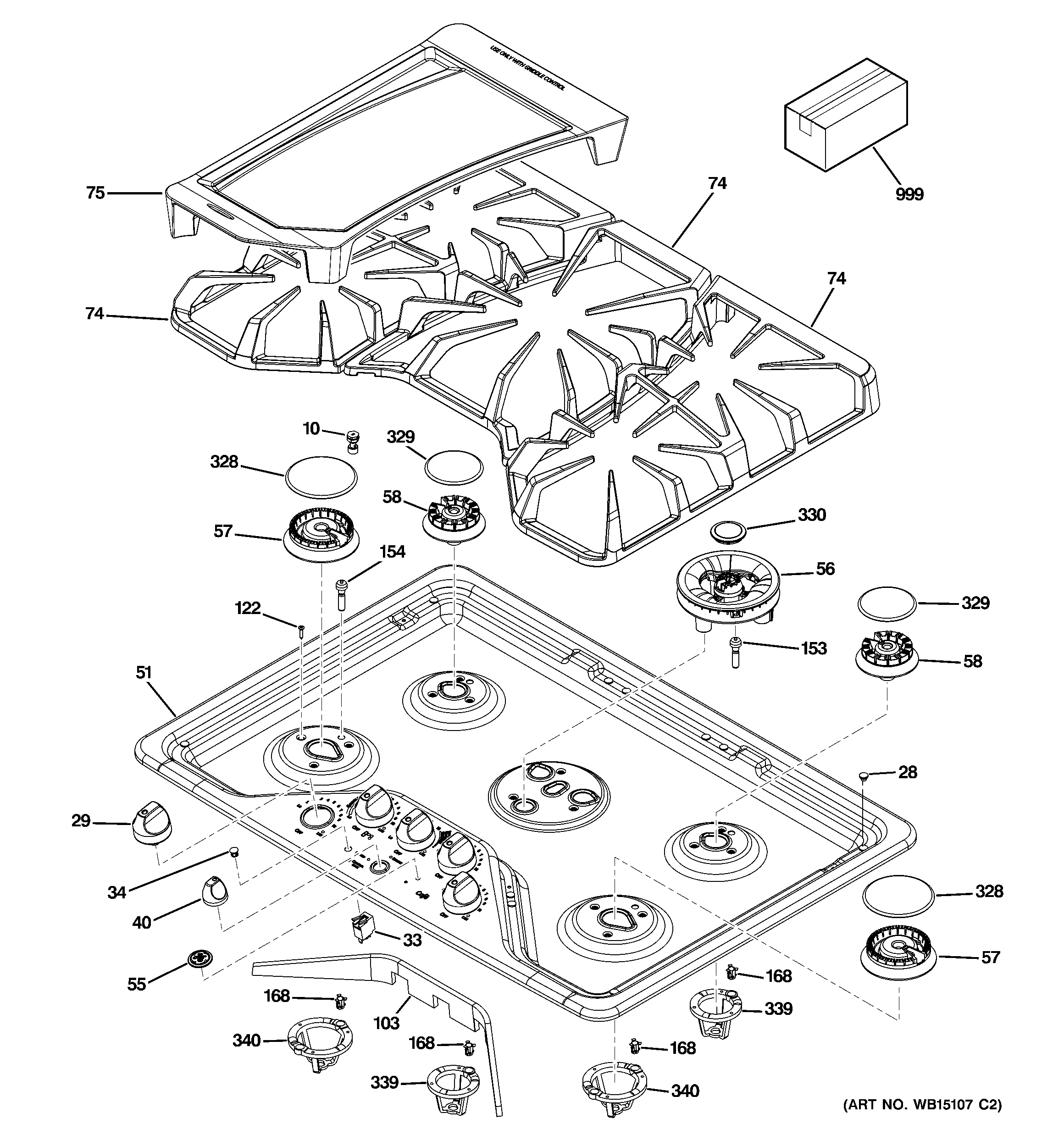

CGP350SET1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
10WB01T10122 GE Oven LP Adjustment Screw
28WB28T10278 GE Oven Black Bumper
29GEN WB03T10329
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
40WB03X32194 GE Oven Knob Kit
51WB62T10820 GE Gas Maintop Assembly 30
55GEN WB02T10531
56WB16K10079 BURNER ASSY
57WB16K10055 GE Oven Burner Base
58WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
74WB31T10148 GE Oven Center Grate 30 (PRF)
74WB31T10150 GE Oven Left Side Grate
74WB31T10149 GE Oven Right Grate 30 (PRF)
75GRIDDLE
103WB35T10246 GE Maintop Oven Insulation
122SCREW 6-32 5/8 OVAL PHILLIPS
153ELECTRODE TOP
154GEN WB13K10014
168WB01K10112 GE Range Oven Electrode Clip
328WB29K10023 GE Oven Burner Cap Assembly
329WB29K10022 GE Oven Burner Cap Assembly
330WB29K10045 GE Oven Surface Burner Cap
339WB02K10360 GE Oven Circuit Bracket Small
340WB02K10361 GE Oven Orifice Holder
999GEN 49-80636
999GEN 31-14984
999WB02T10111 GE Cleaner Stainless Steel
999GEN 31-10783
999WB28T10250 GE Oven Butane Kit Assembly
999GEN 31-10807
