CGP70362N3S1 CONTROL PANEL & COOKTOP

CGP70362N3S1 CONTROL PANEL & COOKTOP

Written by

in

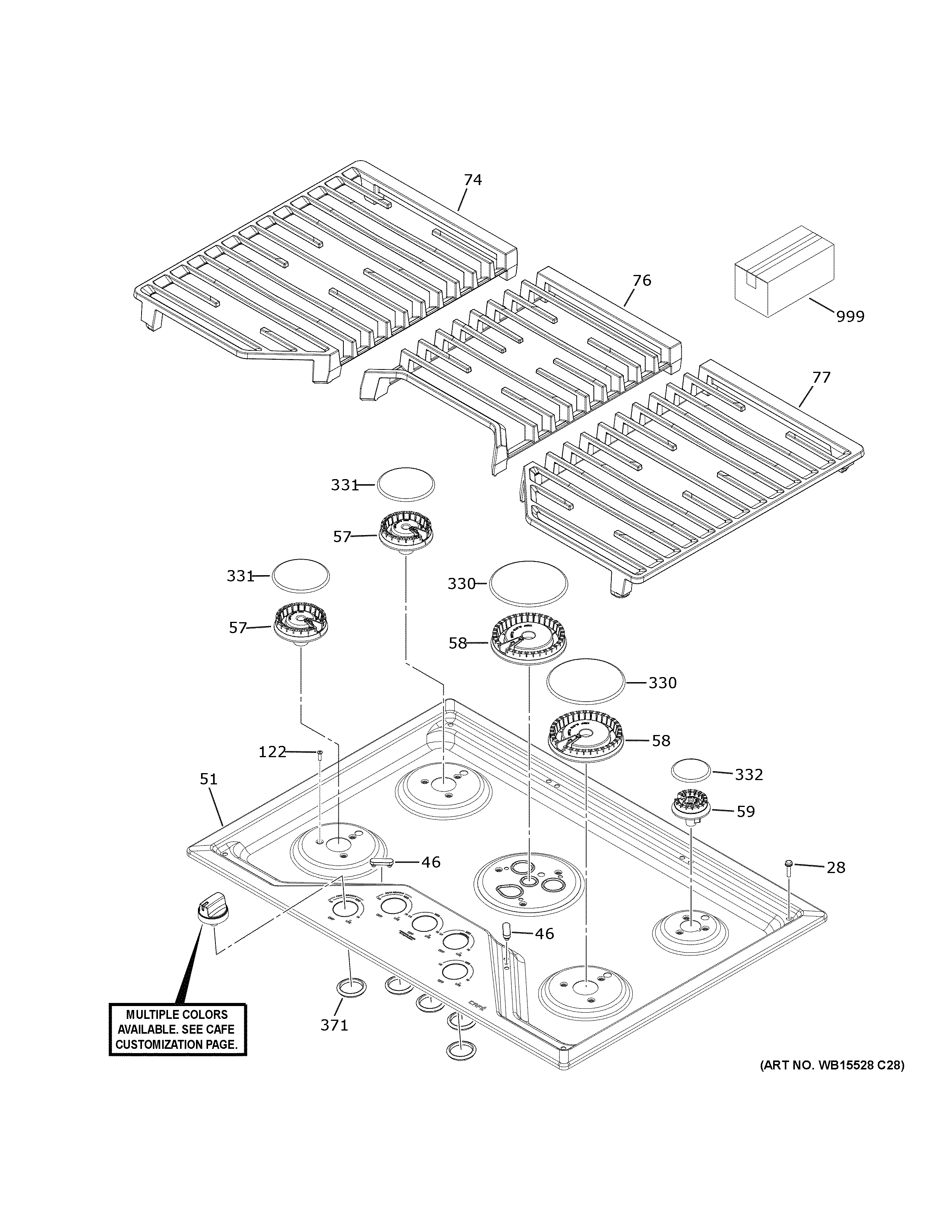

CGP70362N3S1 CONTROL PANEL & COOKTOP

Products

PositionProduct
28BUMPER
46WB02X30761 GE Oven Bridge Bumper
51WB62X33187 GE Stainless Steel Cafè Maindish Top
57WB16X24724 GE Oven Medium Burner
58WB16X24722 GE Oven Gas Range XL Surface Burner
59WB16X24721 GE Oven Range Small Cooktop Burner V2
74WB31X29388 GE Oven Grate Black
76WB31X29389 GE Oven Grate Black
77WB31X29390 GE Oven Grate Black
122WB01X30054 GE Screw 6-32 OVT15 1/2"
330CAP BURNER ASM (15K)
331WB29K10023 GE Oven Burner Cap Assembly
332WB16X28654 GE Oven Burner Cap Cover
371WB04T10042 GE Oven Black Control Seal
999PM QUICK OWNERS MANUAL
999PRINTED AND ONLINEMINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
