CGP95302M1S1 CONTROL PANEL & COOKTOP

CGP95302M1S1 CONTROL PANEL & COOKTOP

Written by

in

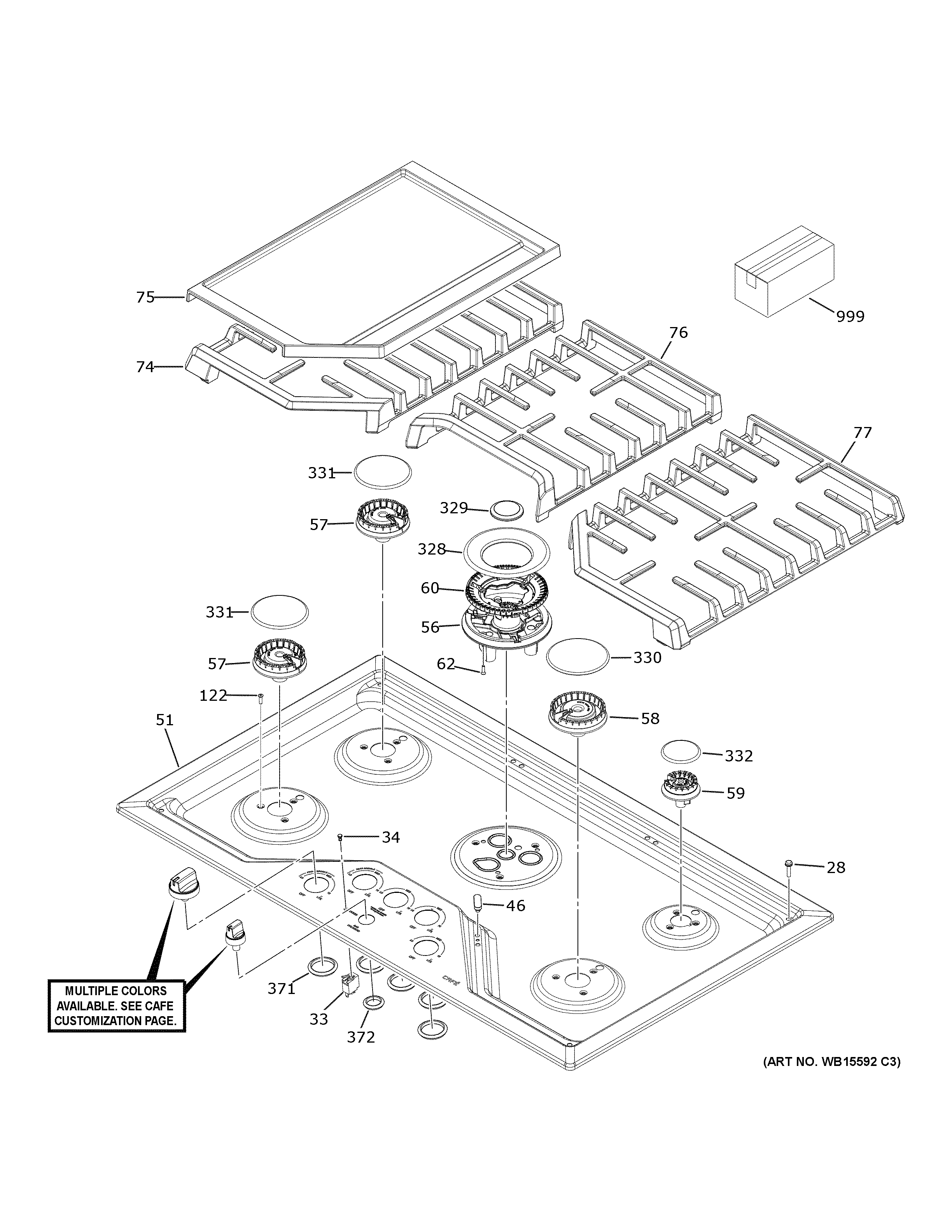

CGP95302M1S1 CONTROL PANEL & COOKTOP

Products

PositionProduct
28BUMPER
33WB25K10010 GE Oven Light Indicator Pilot
34WB25X29379 GE Oven Lens
46WB02X30761 GE Oven Bridge Bumper
51WB62X31365 GE Maintop Assembly 30" Stainless Steel
56WB16X28656 GE Oven Surface Burner Base
57WB16X24724 GE Oven Medium Burner
58WB16X24721 GE Oven Range Small Cooktop Burner V2
59BURNER LARGE V2
60HEAD BURNER
62WB01X24735 GE Oven CKT Screw
74WB31X29447 GE Left-Hand Grate
75WB31X29448 GE Cast Iron Griddle 30" Optional
76WB31X29445 GE Oven Center Grate
77WB31X29446 GE Right Hand Cafi Grate
122WB01X30054 GE Screw 6-32 OVT15 1/2"
328WB29X28253 GE Oven Surface Burner Cap
329WB16X28252 GE Oven Burner Cap Inner
330WB29K10024 GE Burner Cap Oven
331WB29K10023 GE Oven Burner Cap Assembly
332WB16X28654 GE Oven Burner Cap Cover
371WB04T10042 GE Oven Black Control Seal
372CONTROL SEAL BK
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
999PM OWNERS MANUAL
999PM QUICK OWNERS MANUAL
