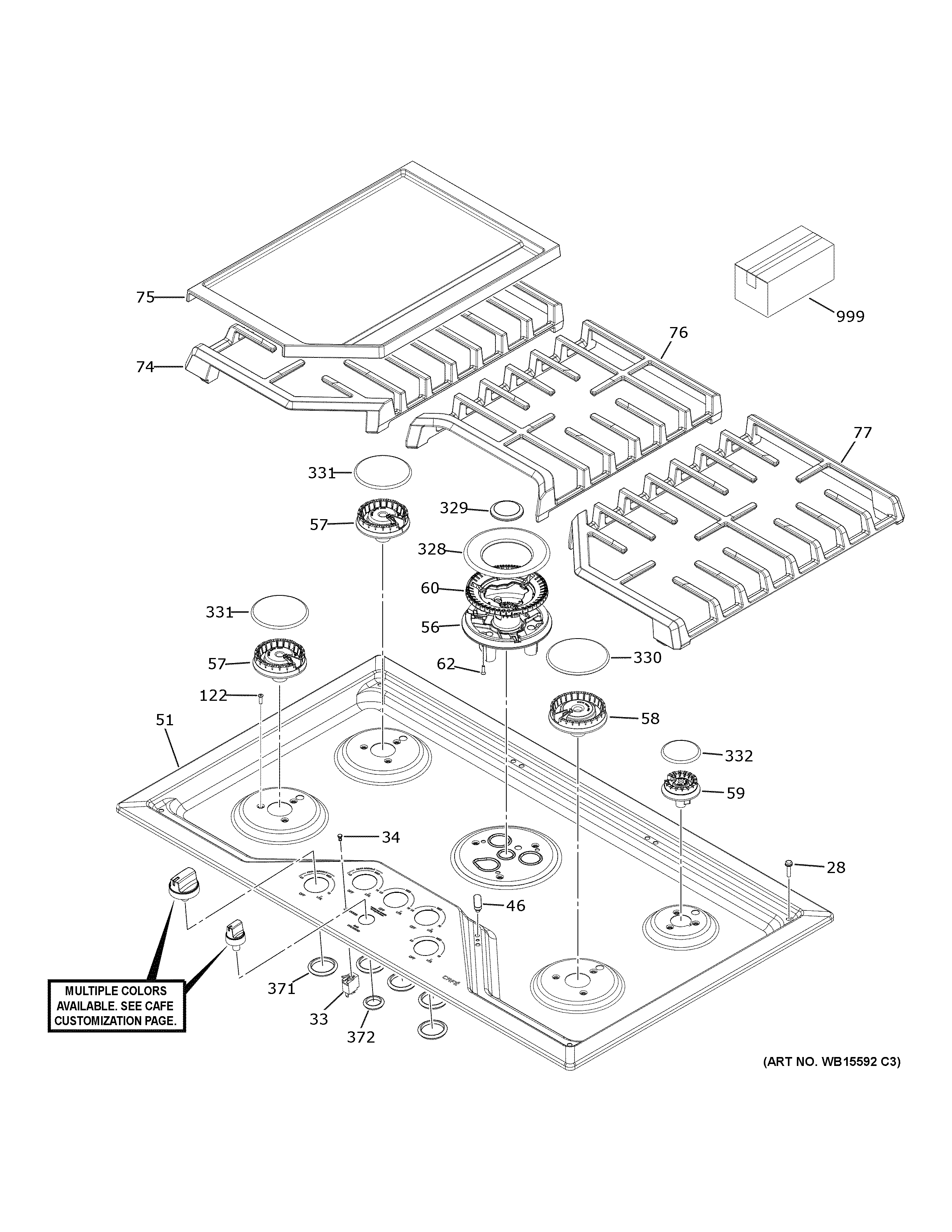

CGP95302M2S1 CONTROL PANEL & COOKTOP

Written by

Products

Position	Product
28	BUMPER
33	WB25K10010 GE Oven Light Indicator Pilot
34	WB25X29379 GE Oven Lens
46	WB02X30761 GE Oven Bridge Bumper
51	MAINTOP ASSEMBLY 30"
56	WB16X28656 GE Oven Surface Burner Base
57	WB16X24724 GE Oven Medium Burner
58	WB16X24721 GE Oven Range Small Cooktop Burner V2
59	BURNER LARGE V2
60	HEAD BURNER
62	WB01X24735 GE Oven CKT Screw
74	WB31X29447 GE Left-Hand Grate
75	WB31X29448 GE Cast Iron Griddle 30" Optional
76	WB31X29445 GE Oven Center Grate
77	WB31X29446 GE Right Hand Cafi Grate
122	WB01X30054 GE Screw 6-32 OVT15 1/2"
328	WB29X28253 GE Oven Surface Burner Cap
329	WB16X28252 GE Oven Burner Cap Inner
330	WB29K10024 GE Burner Cap Oven
331	WB29K10023 GE Oven Burner Cap Assembly
332	WB16X28654 GE Oven Burner Cap Cover
371	WB04T10042 GE Oven Black Control Seal
372	CONTROL SEAL BK
999	PM INSTALL INSTRUCTIONS
999	PM QUICK OWNERS MANUAL
999	PM MINI MANUAL AND WIRING
999	PM INSTALL INSTRUCTIONS
