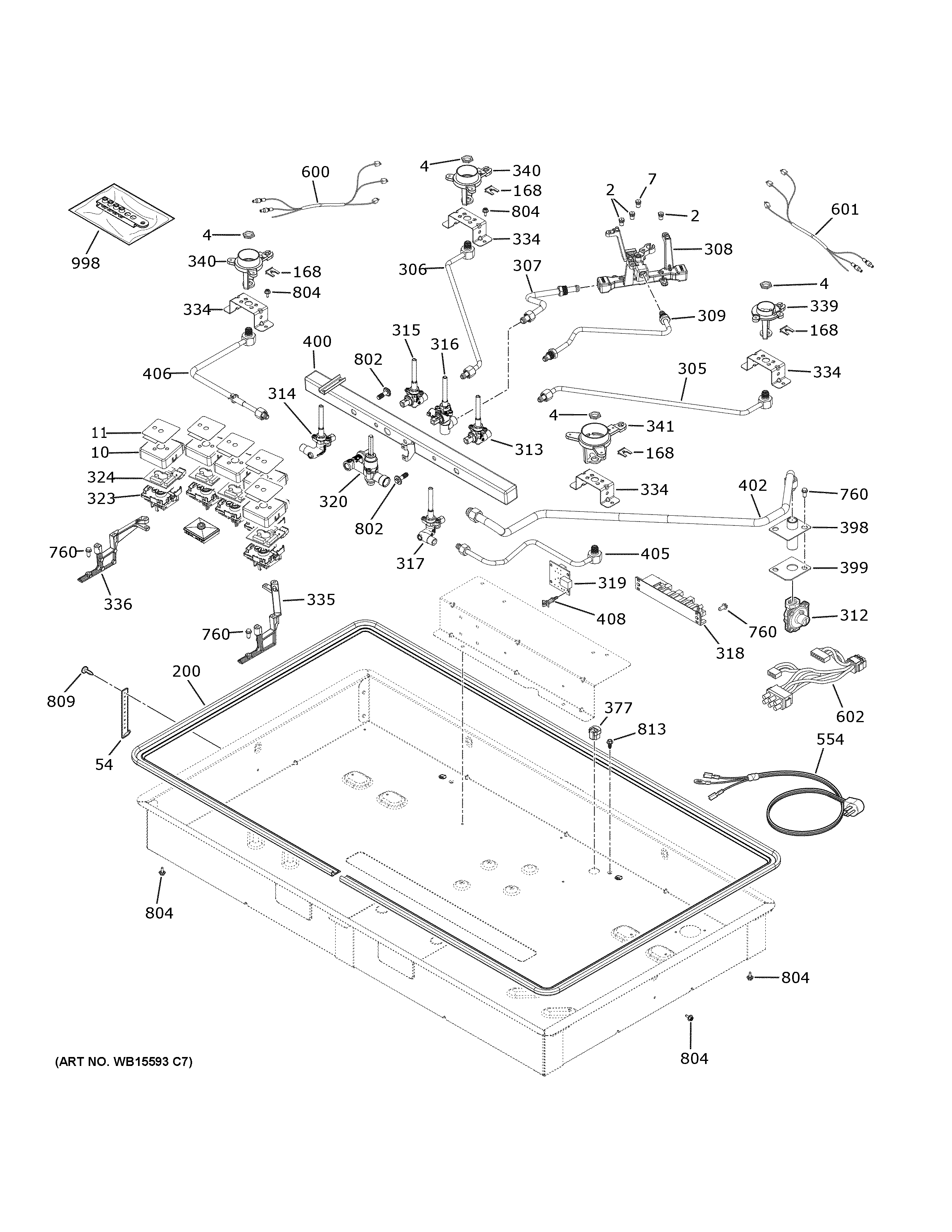

CGP95362M3S1 GAS & BURNER PARTS

CGP95362M3S1 GAS & BURNER PARTS

Written by

in

CGP95362M3S1 GAS & BURNER PARTS

Products

PositionProduct
2WB28X29397 GE Oven Natural Gas Orifice Spud
4WB01K10037 GE Oven Economic Nut
7WB28X29366 GE Oven Natural Gas Orifice Spud
10WB02X29380 GE LED Board Housing White
11WB02X29383 GE Film Housing
54WB2K5328 GE Oven Hold Down Bracket
168WB02X24976 GE Oven Igniter Clip V2
200WB35X31305 GE Gasket Burner Box
305WB28X29327 GE Gas Tube Assembly Rear
306WB28X29328 GE Gas Tube Assembly
307MAIN TUBE ASM CTR
308WB28X29391 GE Oven Igniter Assembly
309SIMMER TUBE ASM CR
312WB19T10089 GE Oven Pressure Regulator
313WB21X46237 GE Gas Valve Rear
314GAS VALVE LF
315GAS VALVE LR
316WB21X46472 GE Dual Gas Valve Center
317WB21X46233 GE Gas Valve
318SPARK MODULE
319WB27T11382 GE Oven Control Board LED
320LOCKOUT VALVE
323HARNESS SWITCH ASSEMBLY
324WB27X29381 GE LED Board
334WB34X29316 GE Oven Mounting Bracket
335WB34X29311 GE Right Hand Manifold Bracket
336WB34X29312 GE Manifold Bracket, Left Hand
339WB02X24728 GE Range Small Injector
340WB02X24727 GE Oven Right Front Burner Jet with Electrode
341WB02X24725 GE Oven Inlet XLV2
377GEN WB02K5275
398INLET GAS TUBE
399SEAL MANIFOLD
400MANIFOLD AND CLAMP ASM
402INLET GAS TUBE
405WB28X29325 GE Oven Gas Tube Assembly Right Front
406WB28X29326 GE Gas Tube Assembly Left
408WB02T10207 GE PCB Standoff
554WB18X25912 GE Range Cord
600IGNITERS AND HARNESS
601WB18X29376 GE Oven Igniter and Harness Assembly
602WB18X29355 GE Power Wire Harness
760WB1X536 GE Oven Screw
802WB01X30011 GE Gasket Screw 1/4-20 HXW 3/4
804WZ4X44D GE Screw Package
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
998WB28X29862 GE Oven High Altitude Natural Gas Conversion
998WB28X29861 GE Oven LP High Altitude Conversion
998WB28X29963 GE Oven LP Conversion Kit
