CGP95363M1S2 CONTROL PANEL & COOKTOP

CGP95363M1S2 CONTROL PANEL & COOKTOP

Written by

in

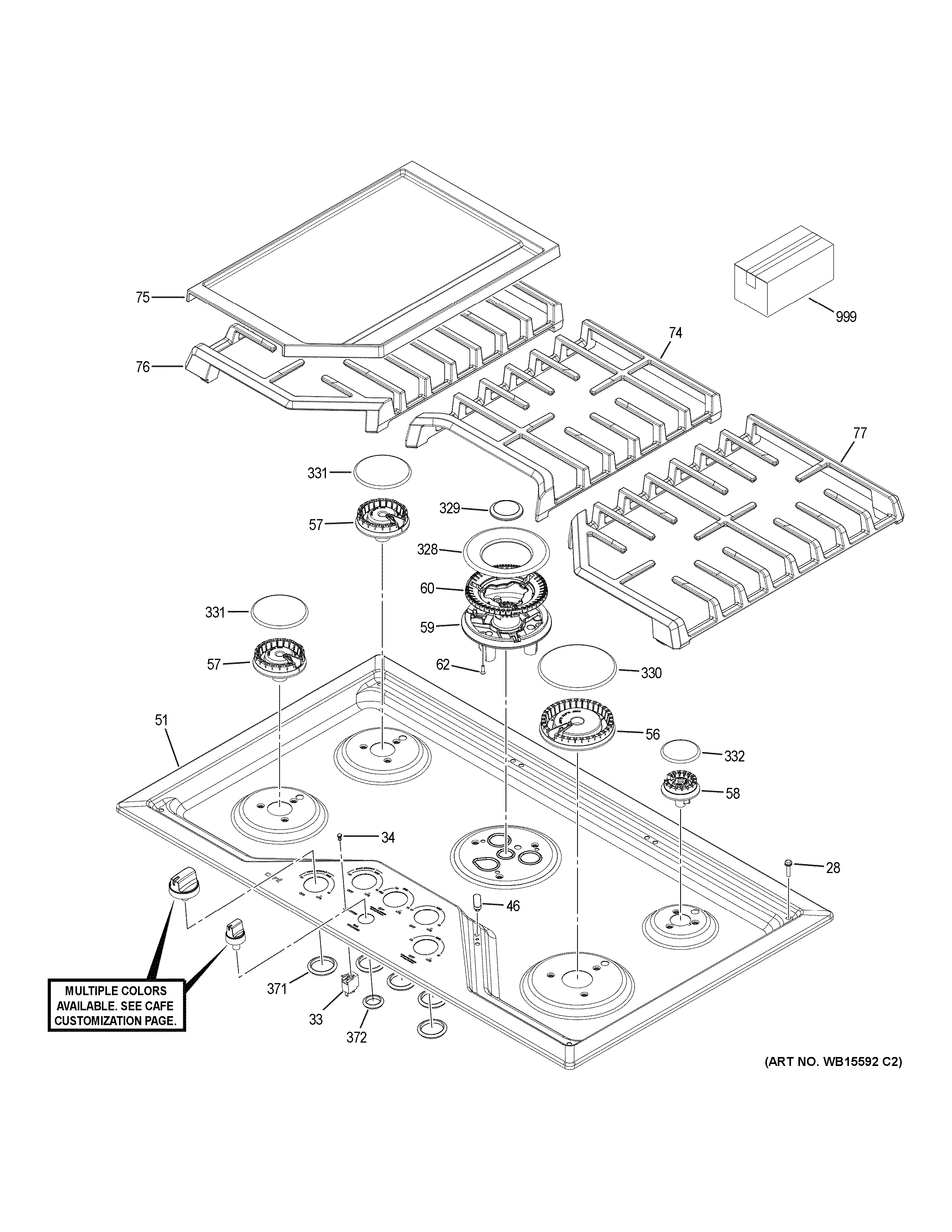

CGP95363M1S2 CONTROL PANEL & COOKTOP

Products

PositionProduct
28BUMPER
33WB25K10010 GE Oven Light Indicator Pilot
34WB25X29379 GE Oven Lens
46WB02X30761 GE Oven Bridge Bumper
51WB62X31367 GE Maintop Assembly 36" Stainless Steel
56WB16X24722 GE Oven Gas Range XL Surface Burner
57WB16X24724 GE Oven Medium Burner
58WB16X24721 GE Oven Range Small Cooktop Burner V2
59WB16X28656 GE Oven Surface Burner Base
60HEAD BURNER
62WB01X30054 GE Screw 6-32 OVT15 1/2"
74WB31X29389 GE Oven Grate Black
75WB31X29396 GE Oven Optional 36" Cast Iron GRIDD
76WB31X29388 GE Oven Grate Black
77WB31X29390 GE Oven Grate Black
328WB29X28253 GE Oven Surface Burner Cap
329WB16X28252 GE Oven Burner Cap Inner
330CAP BURNER ASM (15K)
331WB29K10023 GE Oven Burner Cap Assembly
332WB16X28654 GE Oven Burner Cap Cover
371WB04T10042 GE Oven Black Control Seal
372CONTROL SEAL BK
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM QUICK OWNERS MANUAL
