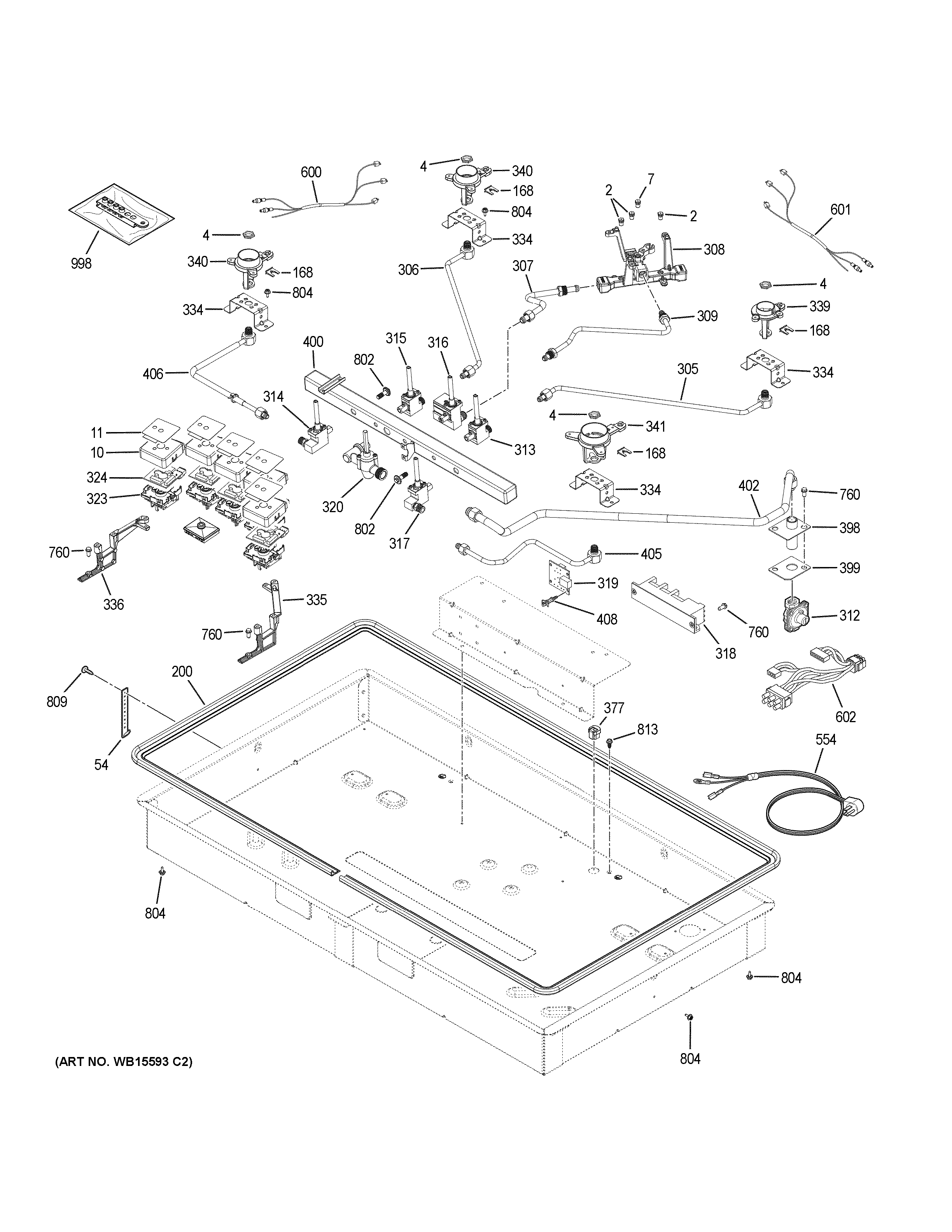

CGP95363M1S2 GAS & BURNER PARTS

CGP95363M1S2 GAS & BURNER PARTS

Written by

in

CGP95363M1S2 GAS & BURNER PARTS

Products

PositionProduct
2WB28X29397 GE Oven Natural Gas Orifice Spud
4WB01K10037 GE Oven Economic Nut
7WB28X29366 GE Oven Natural Gas Orifice Spud
10WB02X29380 GE LED Board Housing White
11WB02X29383 GE Film Housing
54WB2K5328 GE Oven Hold Down Bracket
168WB02X24976 GE Oven Igniter Clip V2
200WB35X31305 GE Gasket Burner Box
305WB28X29327 GE Gas Tube Assembly Rear
306WB28X29328 GE Gas Tube Assembly
307WB28X29374 GE Gas Tube Assembly Main Center
308WB28X29391 GE Oven Igniter Assembly
309WB28X29370 GE Gas Tube Assembly Center Simmer
312WB19T10089 GE Oven Pressure Regulator
313WB21X29318 GE Oven Gas Valve Right Rear
314WB21X29321 GE Oven Left Gas Valve
315WB21X29319 GE Oven Left Rear Gas Valve
316WB21X29369 GE Oven Dual Center Gas Valve
317WB21X29322 GE Oven Gas Valve Right Front
318SPARK MODULE KIT
319WB27T11382 GE Oven Control Board LED
320WB21X29372 GE Lockout Valve
323WB18X33171 GE Switch Harness Assembly
324WB27X29381 GE LED Board
334WB34X29316 GE Oven Mounting Bracket
335WB34X29311 GE Right Hand Manifold Bracket
336WB34X29312 GE Manifold Bracket, Left Hand
339WB02X24728 GE Range Small Injector
340WB02X24727 GE Oven Right Front Burner Jet with Electrode
341WB02X24725 GE Oven Inlet XLV2
377GEN WB02K5275
398WB04T10082 GE Oven Cooktop Inlet Supply
399WB04T10084 GE Oven Manifold Seal Cooktop
400MANIFOLD TUBE AND CLAMP ASM
402WB28X29371 GE Gas Inlet Tube Assembly
405WB28X29325 GE Oven Gas Tube Assembly Right Front
406WB28X29326 GE Gas Tube Assembly Left
408WB02T10207 GE PCB Standoff
554WB18X25912 GE Range Cord
600WB18X29353 GE Oven Igniter and Harness Assembly
601WB18X29376 GE Oven Igniter and Harness Assembly
602WB18X29355 GE Power Wire Harness
760WB1X536 GE Oven Screw
802WB01X30011 GE Gasket Screw 1/4-20 HXW 3/4
804WB01X24092 GE Oven Screw 8-18
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
998WB28X29963 GE Oven LP Conversion Kit
998WB28X29861 GE Oven LP High Altitude Conversion
998WB28X29862 GE Oven High Altitude Natural Gas Conversion
