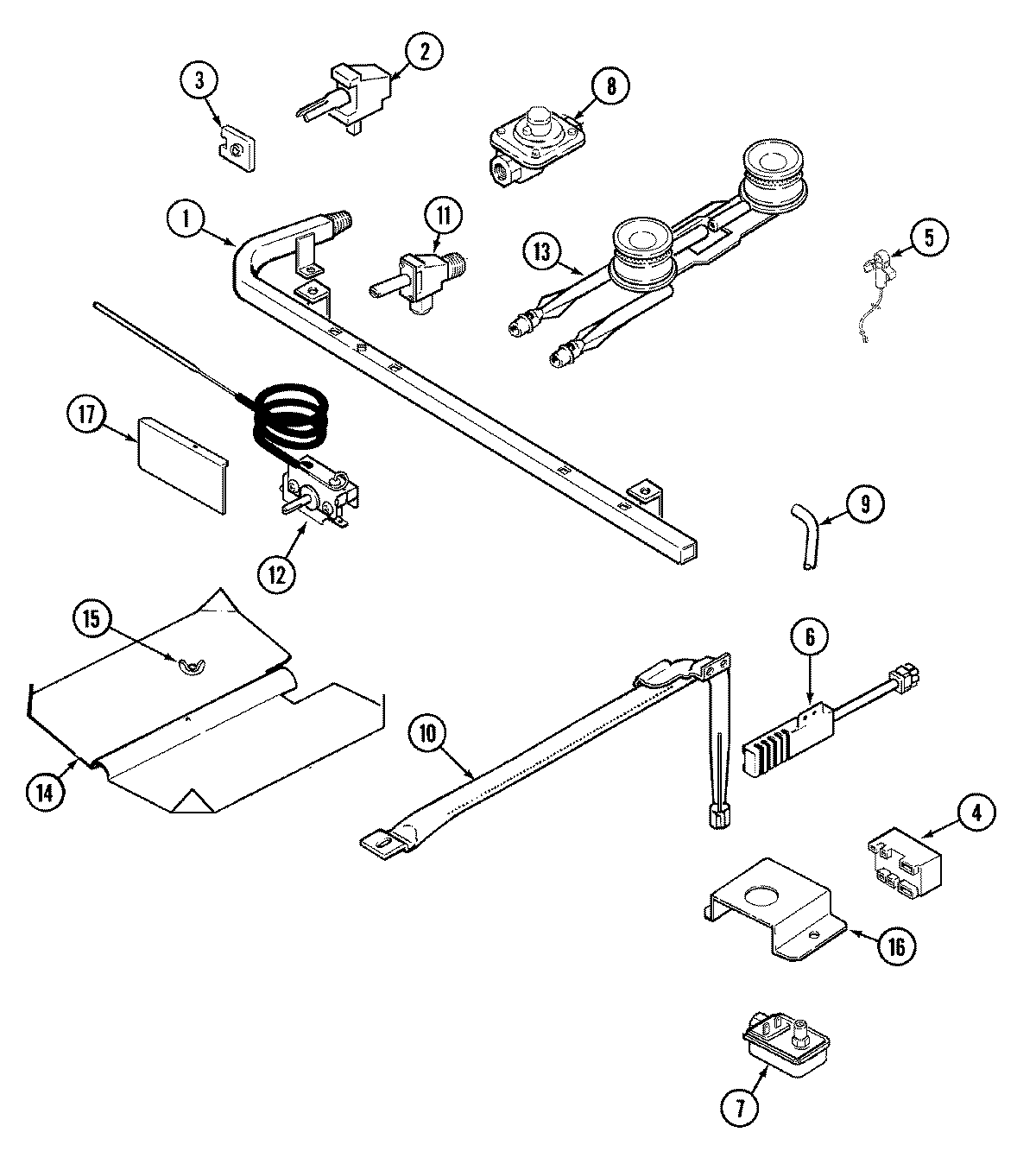

CGR1320BDH 04 – GAS CONTROLS

Products

Position	Product
NI	MAY 74002362
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	MAY 74002363
NI	MAY 74002457
1	MAY 74003913
2	WP8273096 Whirlpool Screw
2	MAY 74002383
3	MAY 74002384
4	MAY 74004282
5	MAY 74002386
5	MAY 74004483
6	SCREW (10-24X5/16-NI)
6	MAY 7432P075-60
7	MAY 74002387
7	MAY 74006281
8	MAY 7510P049-60
9	MAY 74002456
10	MAY 74002434
11	12002280 Whirlpool Oven Valve Kit and Screw
11	MAY 71003231
12	MAY 7101P280-60
12	WP74002390 Whirlpool Oven Thermostat
13	SCREW (8BX3/8-NI)
13	MAY 74003332
14	MAY 74002393
15	NUT, WING
16	MAY 74005051
17	MAY 74002391
17	SCREW
