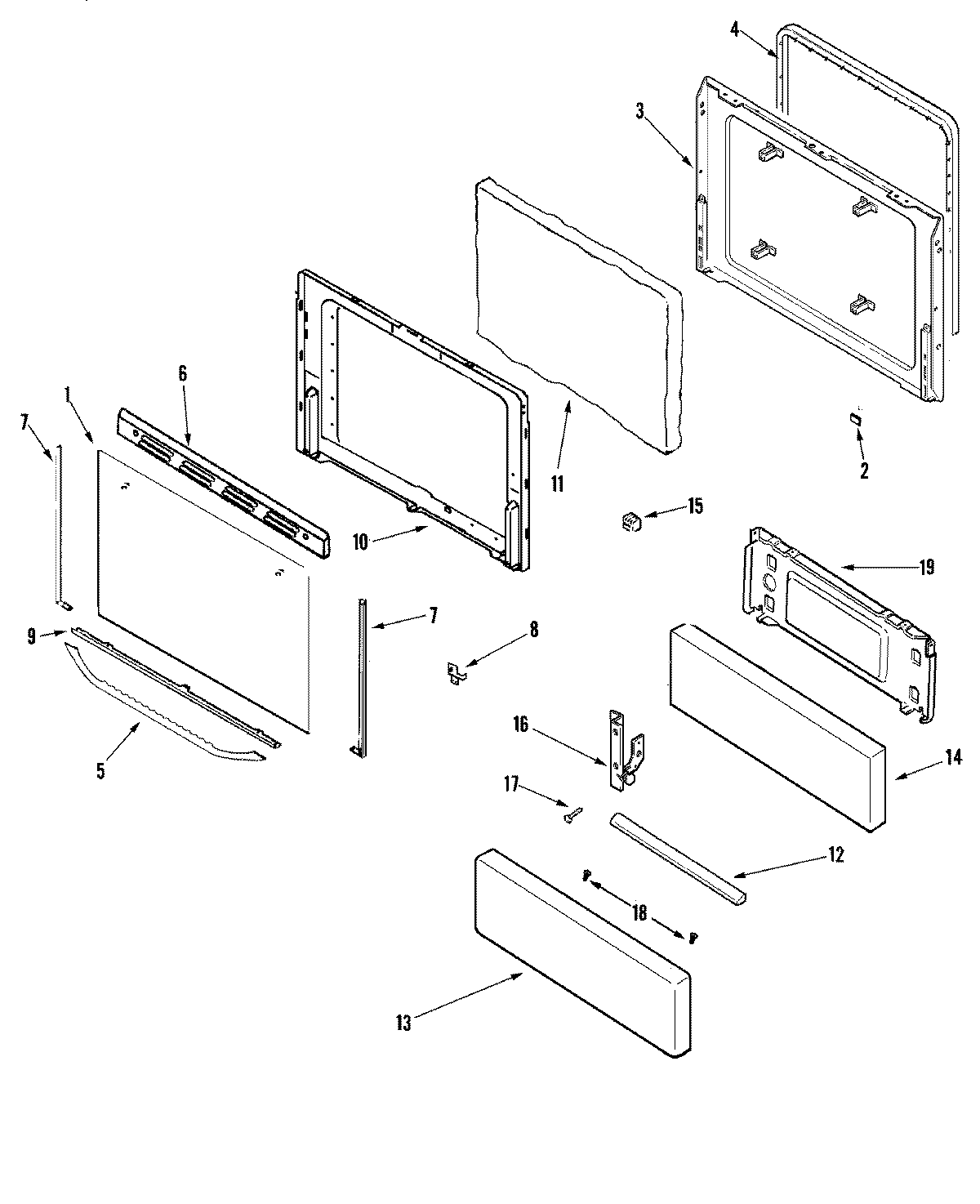

CGR1415ADH 03 – DOOR/DRAWER

CGR1415ADH 03 – DOOR/DRAWER

Written by

in

CGR1415ADH 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7101P147-60
1MAY 74010447
1MAY 7701P539-60
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3MAY 74010445
4WP7212P043-60 Whirlpool Oven Door Seal Gasket
5MAY 74010201
5WP74003976 Whirlpool Screw
5MAY 74010202
7WP7518P464-60 Whirlpool Burner Grate
8MAY 74009780
9MAY 74004827
10MAY 74009708
11MAY 74009800
11WP98008545 Whirlpool Screw
12MAY 74006536
12MAY 74009943
12MAY 71001394
12WP90767 Whirlpool Screw
13W11189172 Whirlpool Glide Drawer
13MAY 74003512
13WP74005546 Whirlpool RU Spacer
14MAY 74010446
17MAY 74009897
18SCREW
19MAY 74007553
19SPACER, RUBBER (BLK-SQUARE)
