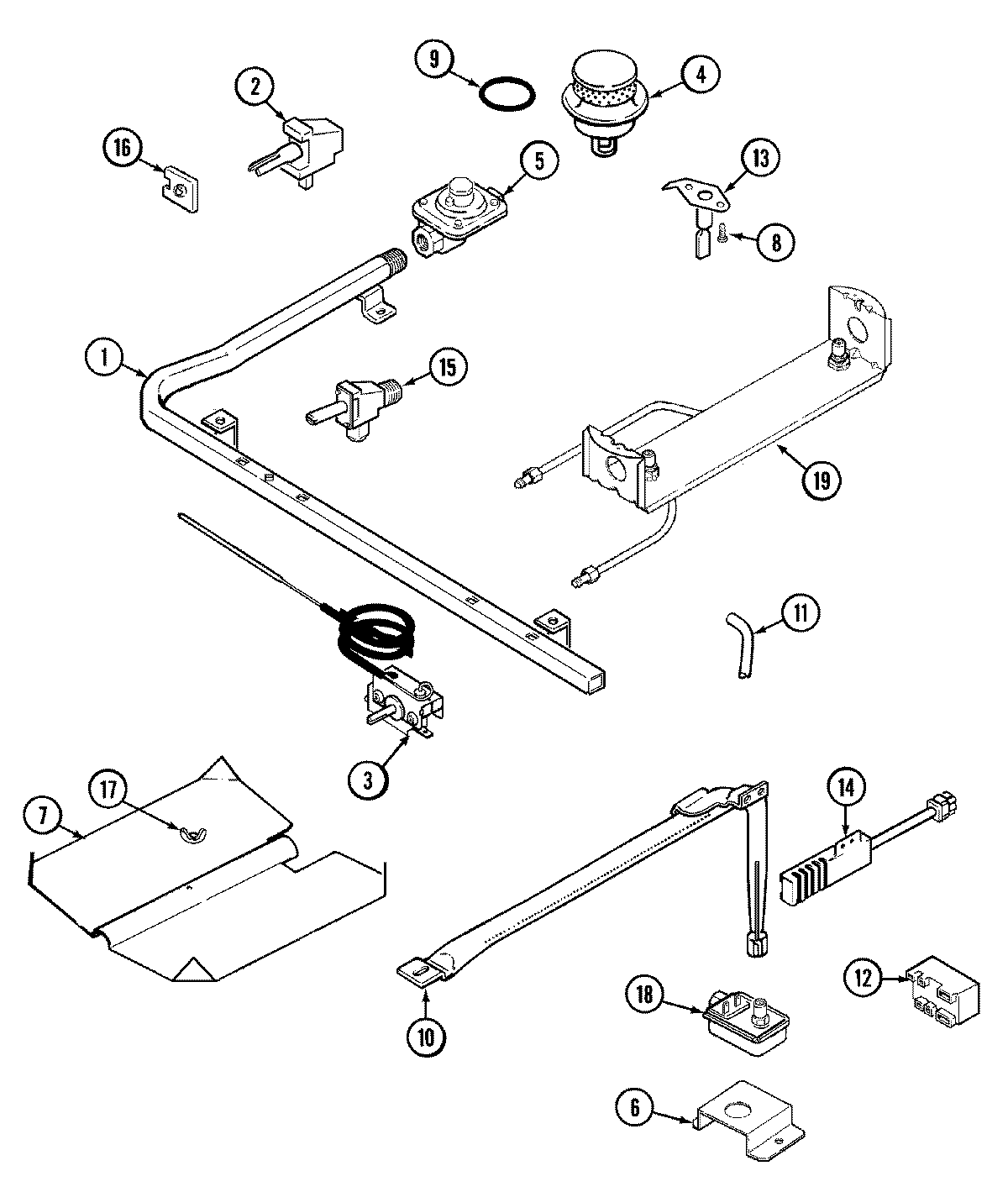

CGR1420BDQ 04 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	MAY 74002363
NI	MAY 74004231
NI	MAY 74002457
1	MAY 74002454
1	MAY 74009463
2	12002276 Whirlpool Valve Kit and Screw
2	MAY 74002455
2	WP8273096 Whirlpool Screw
3	WP74002390 Whirlpool Oven Thermostat
3	MAY 7101P280-60
4	MAY 74003966
5	MAY 7510P049-60
6	MAY 74005051
7	MAY 74002393
8	MAY Y707113
9	MAY 7201P050-60
10	MAY 74002434
10	SCREW
11	MAY 74002456
11	MAY 1555251
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
14	MAY 7432P075-60
14	SCREW (10-24X5/16-NI)
15	12002277 Whirlpool Oven Valve Kit & Screw
15	MAY 71003231
15	12002280 Whirlpool Oven Valve Kit and Screw
16	MAY 74002384
16	MAY 74009461
17	NUT, WING
18	MAY 74002387
18	MAY 74006281
19	WP5187M026-60 Whirlpool Surface Burner Orifice Holder
