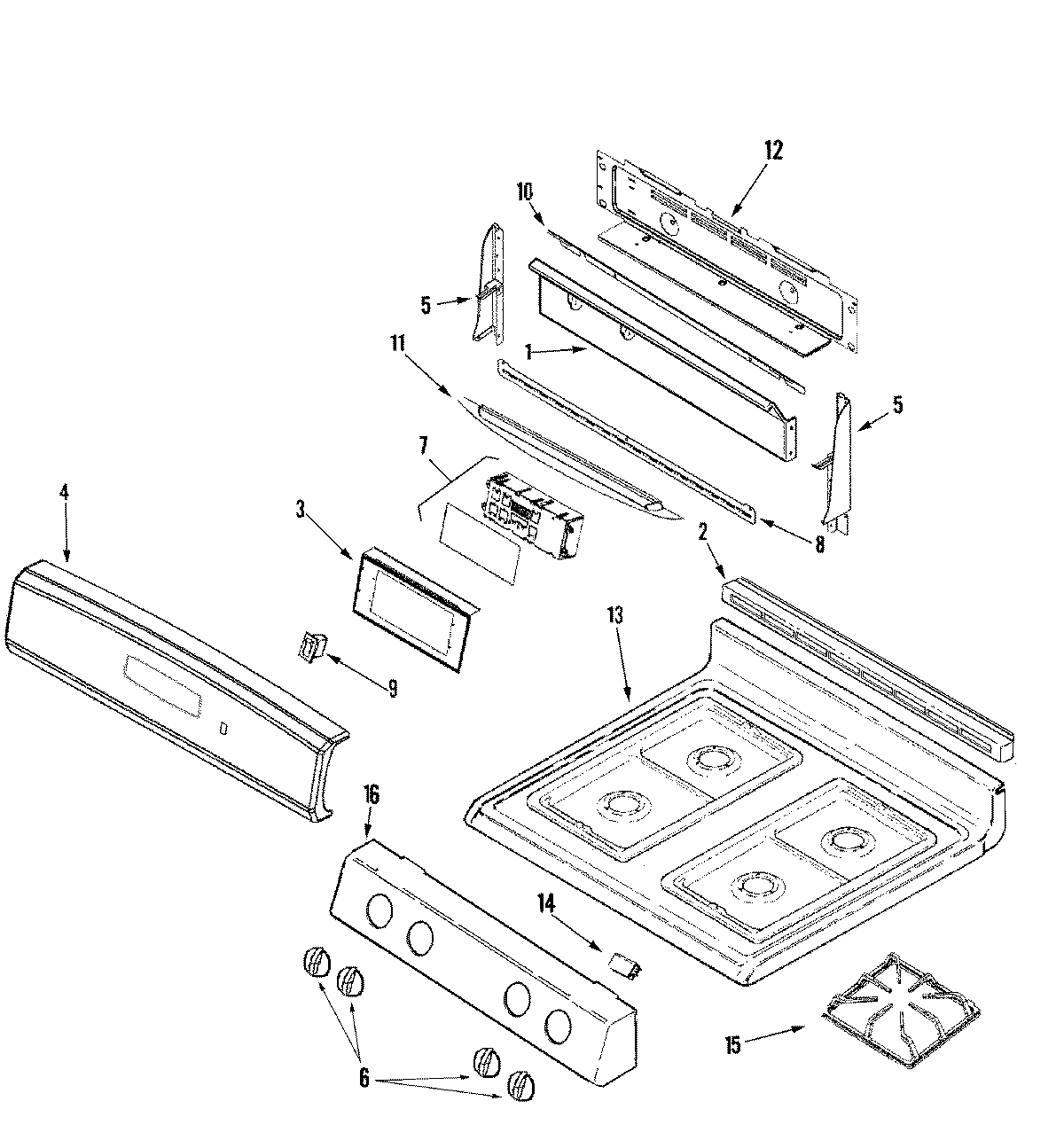

CGR1425ADH 02 – CONTROL PANEL/TOP ASSEMBLY

CGR1425ADH 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

CGR1425ADH 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009779
1MAY 7101P147-60
2SCREW (10ABX1/4P TR ZN)
2MAY 74009797
3MAY 74008716
4MAY 74010426
5MAY 74010202
5MAY 74010201
5WP98008545 Whirlpool Screw
7WP74003976 Whirlpool Screw
7MAY 74010309
8MAY 74009780
9SWITCH, ROCKER (BLK)
10MAY 74009708
10SCREW
11MAY 74009800
11MAY 74009801
12MAY 71001394
12MAY 74006536
12MAY 74009943
12WP90767 Whirlpool Screw
13W11189172 Whirlpool Glide Drawer
13MAY 74003512
13WP74005546 Whirlpool RU Spacer
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74010429
