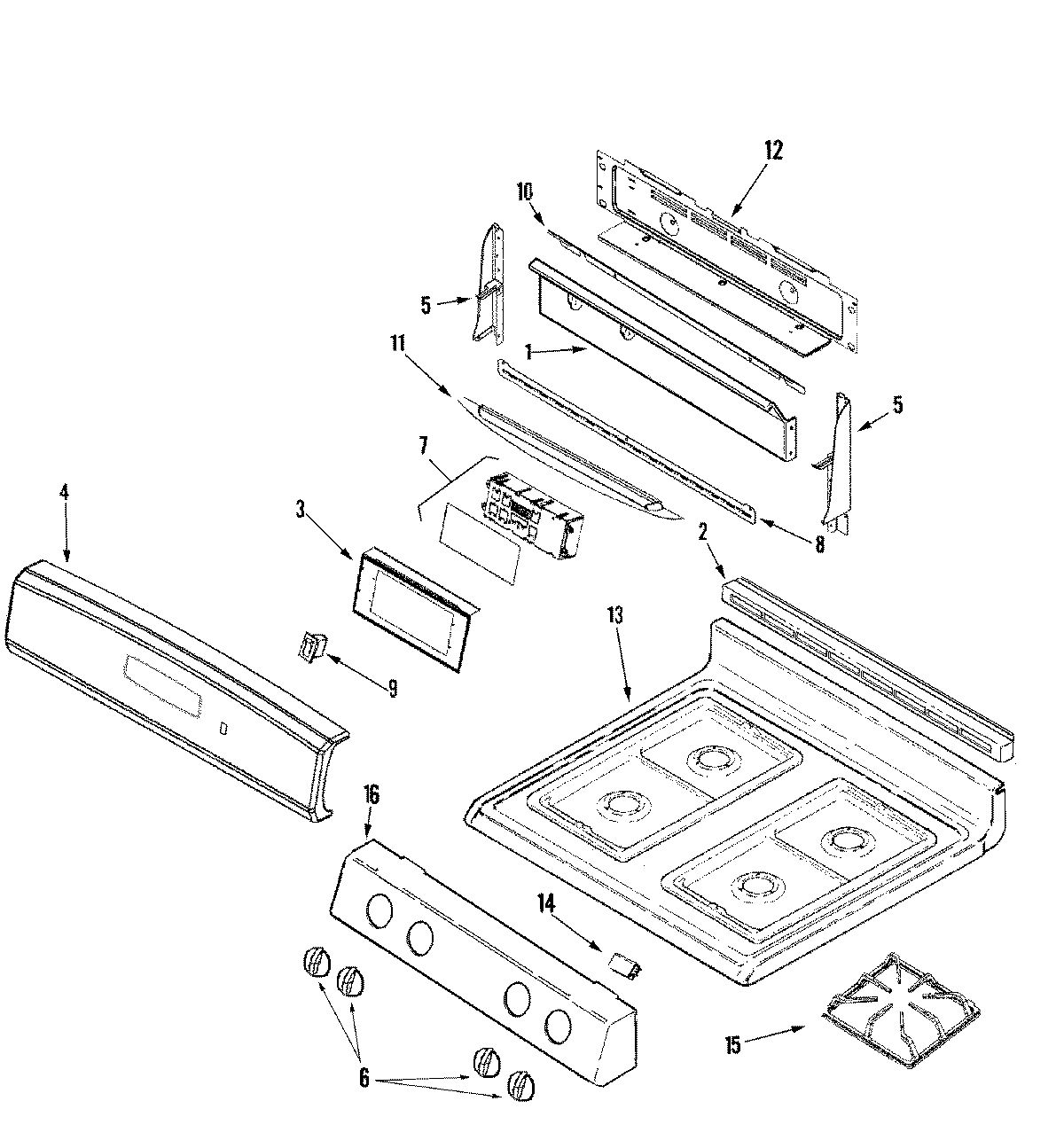

CGR1425ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

CGR1425ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

CGR1425ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P147-60
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3MAY 74008716
4MAY 74010428
5WP74009541 Whirlpool Screw Assembly
5MAY 74010213
5MAY 74010214
6MAY 74010434
7MAY 74010308
7WP74003976 Whirlpool Screw
8MAY 74009780
974008765 Whirlpool Range Oven Rocker Switch Bisque
10SCREW
10MAY 74009708
11MAY 74009803
11MAY 74009798
12MAY 71001394
12MAY 74009943
12WP90767 Whirlpool Screw
12MAY 74006536
13MAY 74004964
13WP74005546 Whirlpool RU Spacer
13W11189172 Whirlpool Glide Drawer
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74010431
