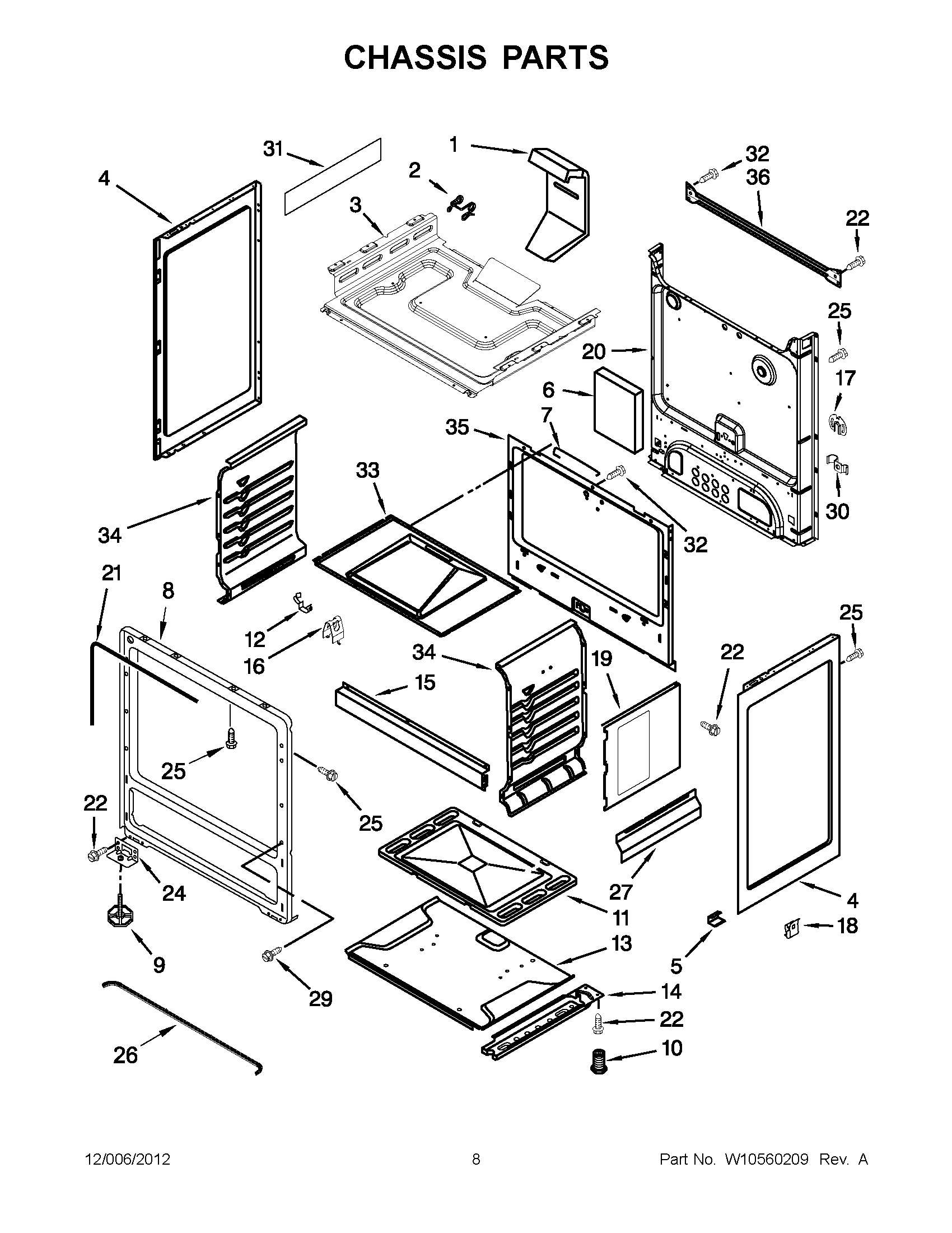

CGR3300XDW0 04 – CHASSIS PARTS

CGR3300XDW0 04 – CHASSIS PARTS

Written by

in

CGR3300XDW0 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10137227
NI	MAY W10137233
1	BOX, FLUE
2	SPRING, TORSION (FLUE BOX)
3	BOX-BURNER
4	PANEL, SIDE (WHITE)
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT
7	MAY 98006739
8	MAY W10166434
9	FOOT, FRONT
10	FOOT, LEVELING
11	MAY 98004449
12	CLIP, THERM BULB
13	MAY 98003847
14	RAIL, BASE
15	MAY 98012175
16	RETAINER, THERMOCOUPLE
17	MAY 98005713
18	U-NUT
19	BAFFLE, SIDE
20	MAY 98015100
21	MAY W10217472
22	SCREW
24	BASE, FOOT
25	SCREW
26	Gasket, Broil Door
27	SHIELD, HEAT (LOWER)
29	SCREW (BLACK)
30	CLIP, TUBING
31	FOIL, SIDE
32	Screw
33	MAY 98004447
34	SIDE, OVEN (RIGHT HAND)
34	SIDE, OVEN (LEFT HAND)
35	MAY 98005768
36	MAY 98015363
