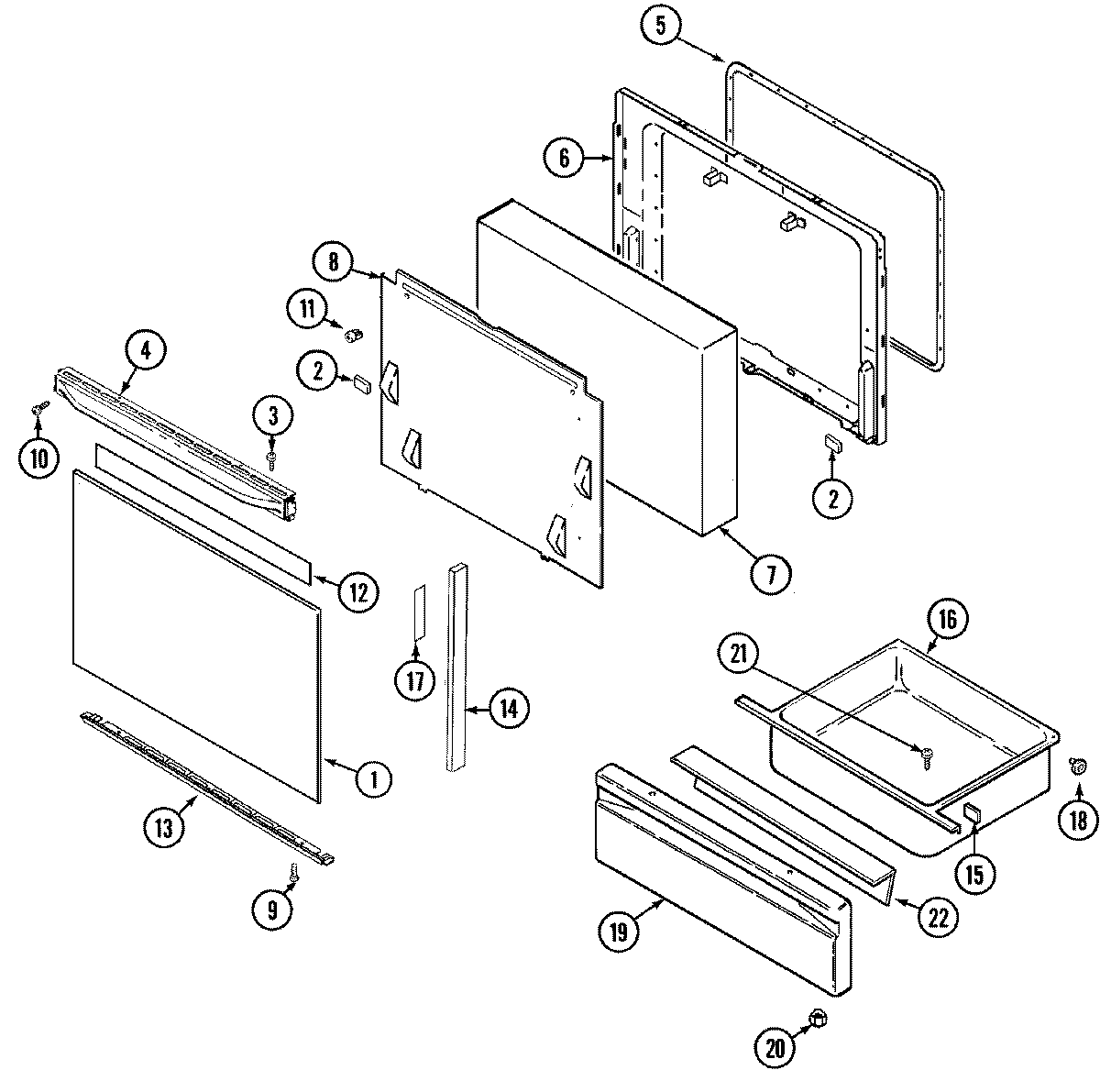

CGR3520ADL 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P325-60
2	MAY 8010P085-60
3	WP98008545 Whirlpool Screw
4	MAY 74003429
5	GASKT-DOOR OVEN
6	MAY 74003245
7	MAY 74001842
8	MAY 3601F218-51
10	SCREW
11	MAY 7103P045-60
12	MAY 8270P078-60
13	MAY 74003432
14	MAY 74003430
15	WP854334 Whirlpool Air Conditioner Sealing Strip
16	MAY 71003042
17	MAY 8270P093-60
18	MAY 74003462
18	WP488130 Whirlpool Air Conditioner Nut
19	MAY 74003522
20	WPW10131078 Whirlpool Nut Assembly
21	WP7101P072-60 Whirlpool Screw
22	LINING, DRAWER PANEL
