CGR3520ADL 04 – GAS CONTROLS – Aparts

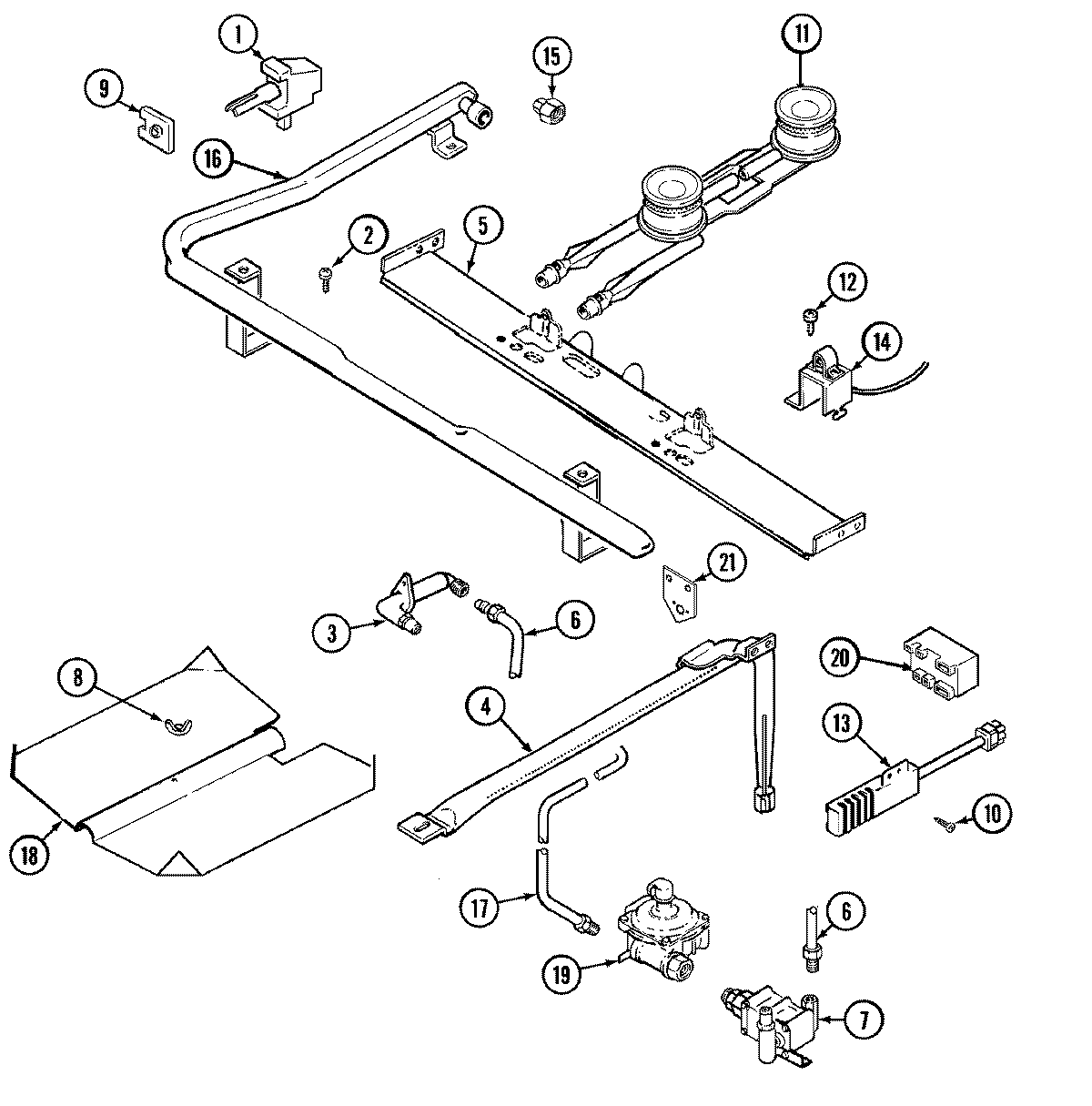

CGR3520ADL 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74002383
2	MAY 7101P044-60
3	MAY 7507P088-60
4	MAY 3403D043-45
5	MAY 74003539
6	MAY 3414F102-44
7	WP74006427 Whirlpool Oven Valve
8	NUT, WING
9	MAY 74002384
10	WP3351614 Whirlpool Screw
11	MAY 74003332
12	SCREW (8BX3/8-NI)
13	MAY 7432P076-60
13	MAY 4005F421-45
14	MAY 74004482
14	MAY 74003538
14	MAY 74002386
15	MAY 7103P130-60
16	MAY 74002487
17	MAY 1555258K
17	MAY 74002553
18	MAY 3601F217-47
19	WP74006429 Whirlpool Regulator
20	MAY 74004282
20	MAY 7431P006-60
21	MAY 3605F186-45
