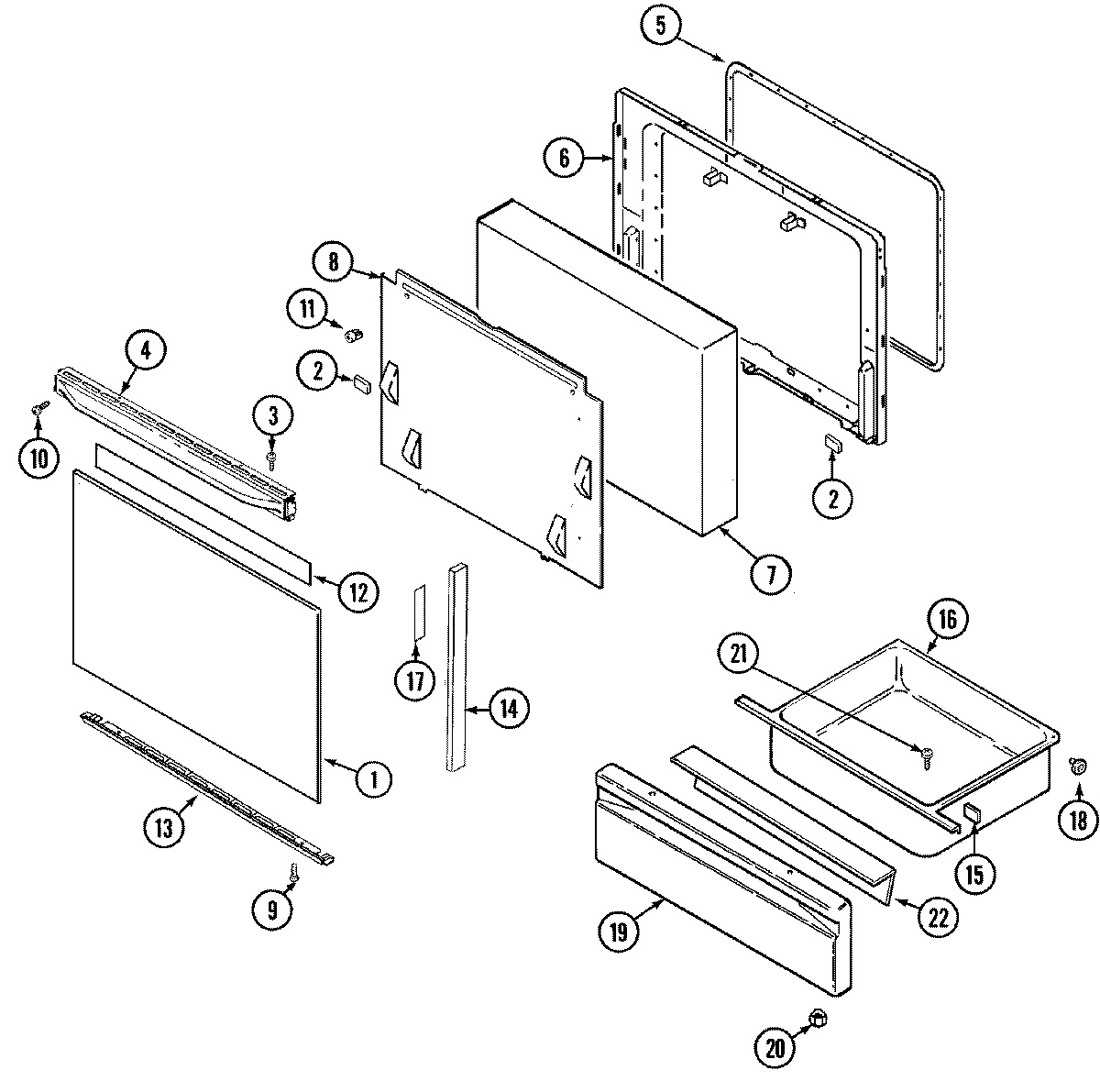

CGR3520BDH 03 – DOOR/DRAWER

CGR3520BDH 03 – DOOR/DRAWER

Written by

in

CGR3520BDH 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7902P325-60
2MAY 8010P085-60
3WP98008545 Whirlpool Screw
4MAY 74003429
5GASKT-DOOR OVEN
6MAY 74003245
7MAY 74001842
8MAY 3601F218-51
10SCREW
11MAY 7103P045-60
12TAPE, FOIL (3“ WIDE)
13MAY 74003432
14MAY 74003430
15WP854334 Whirlpool Air Conditioner Sealing Strip
16MAY 71003042
17MAY 74004075
18WP74004078 Whirlpool Door Roller
18WP488130 Whirlpool Air Conditioner Nut
18MAY 74004079
19PANEL, DRAWER (WHT)
19PANEL, DRAWER (BSQ)
20WPW10131078 Whirlpool Nut Assembly
22LINING, DRAWER PANEL
