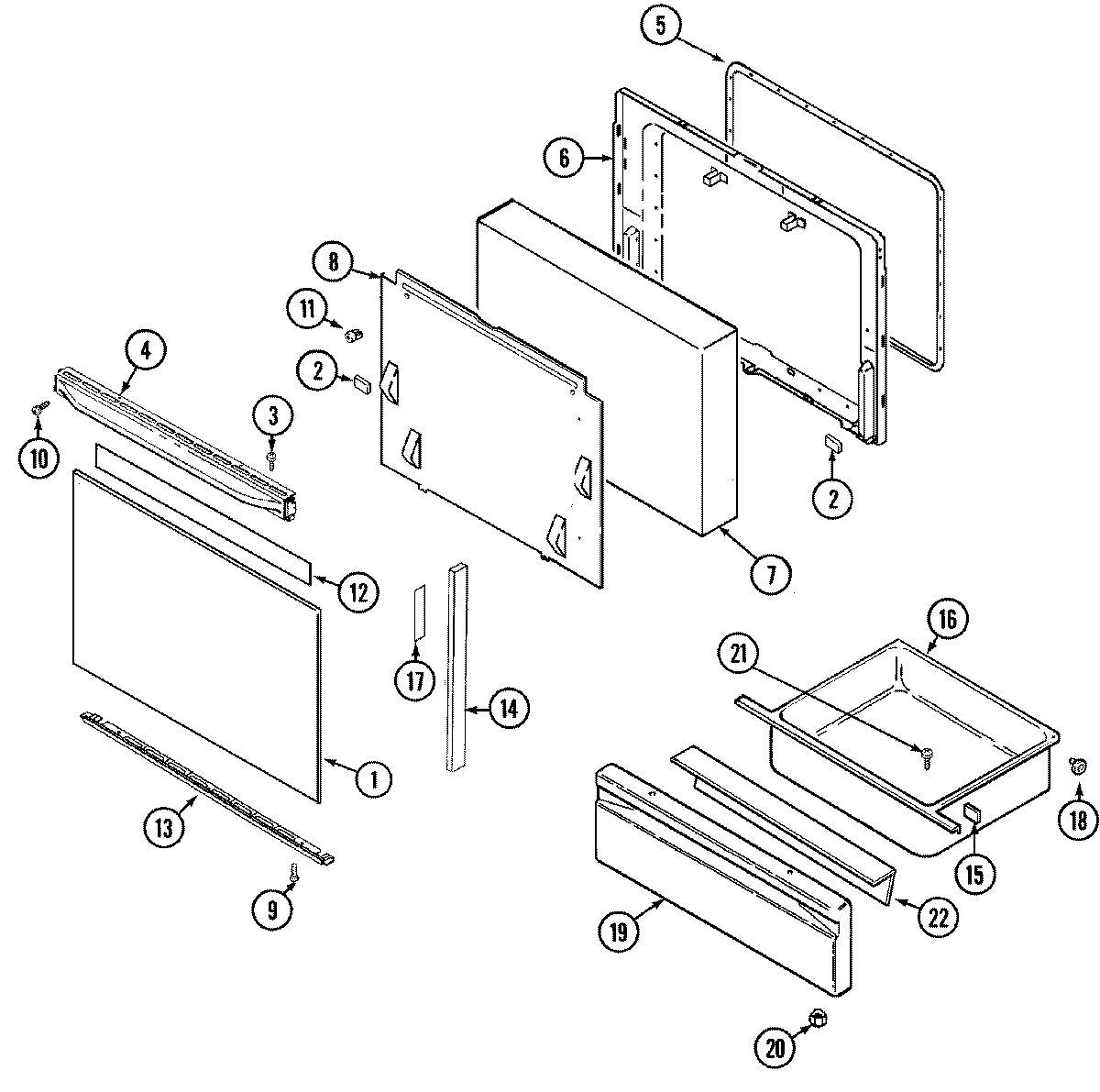

CGR3520BDT 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P325-60
2	MAY 8010P085-60
3	WP98008545 Whirlpool Screw
4	MAY 74003429
5	GASKT-DOOR OVEN
6	MAY 74003245
7	MAY 74001842
8	MAY 3601F218-51
10	SCREW
11	MAY 7103P045-60
12	TAPE, FOIL (3`` WIDE)
13	MAY 74003432
14	MAY 74003430
15	WP854334 Whirlpool Air Conditioner Sealing Strip
16	MAY 71003042
17	MAY 74004075
18	WP74004078 Whirlpool Door Roller
18	WP488130 Whirlpool Air Conditioner Nut
18	MAY 74004079
19	PANEL, DRAWER (WHT)
19	PANEL, DRAWER (BSQ)
20	WPW10131078 Whirlpool Nut Assembly
22	LINING, DRAWER PANEL
