CGR3520BDT 05 – OVEN/BASE – Aparts

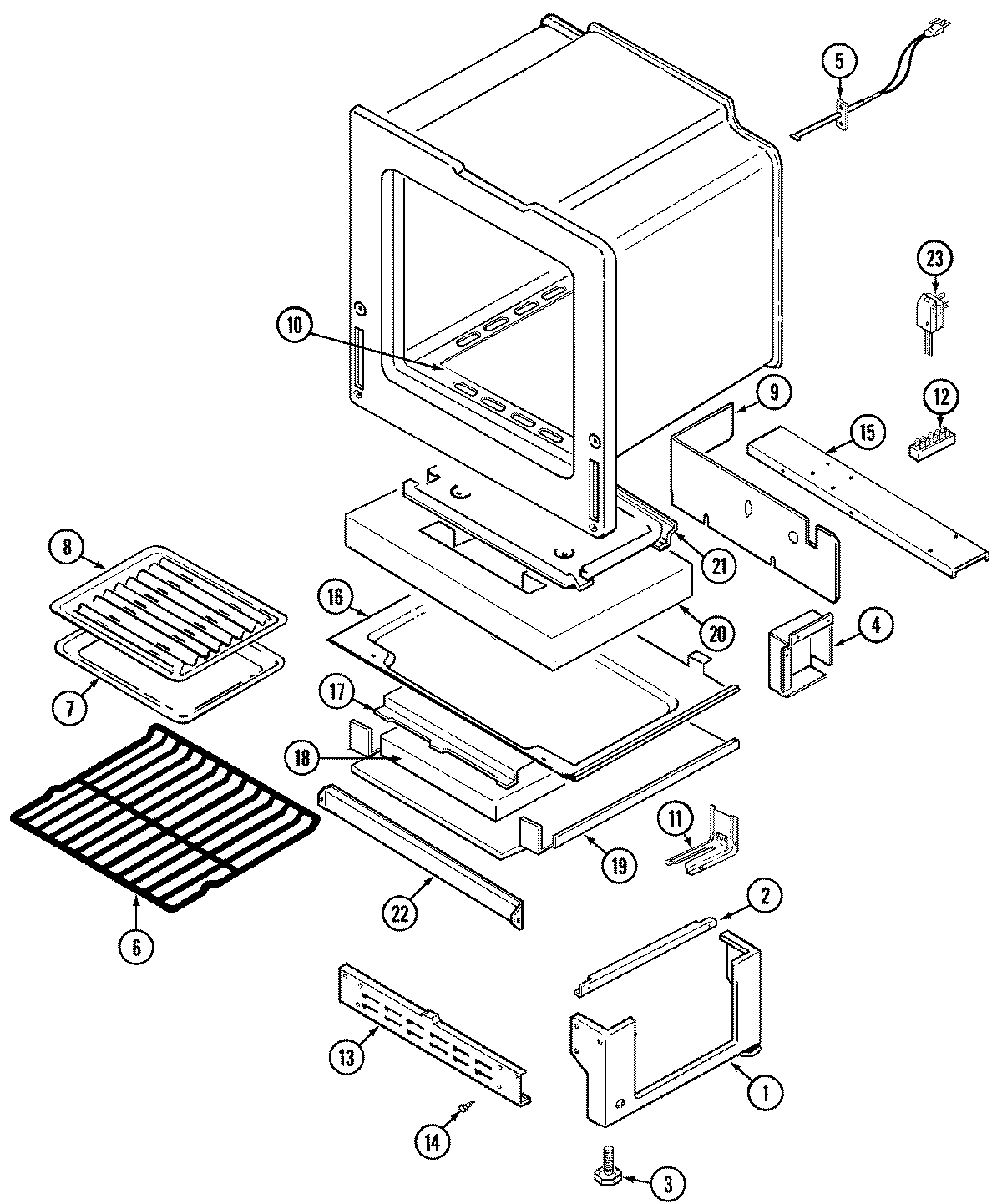

CGR3520BDT 05 – OVEN/BASE

Products

Position	Product
1	MAY 74003405
2	RUNNER, DRAWER
3	W11665456 Whirlpool Range Level Foot
4	MAY 74004499
5	12001655 Whirlpool Oven Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY Y3401F02019
8	MAY Y3413F01619
9	MAY 74003329
10	MAY 5504M004-19
11	MAY 74002311
11	MAY 7101P344-60
12	MAY 7401P037-60
13	MAY 4020F001-80
14	SCREW
15	MAY 74004167
16	MAY 74004296
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 74003503
21	PAN, BAKE BURNER
22	BAFFLE, OVEN FRONT
23	MAY 7402P043-60
