Aparts

CGR3725ADB 03 – DOOR/DRAWER

CGR3725ADB 03 – DOOR/DRAWER

Written by

in

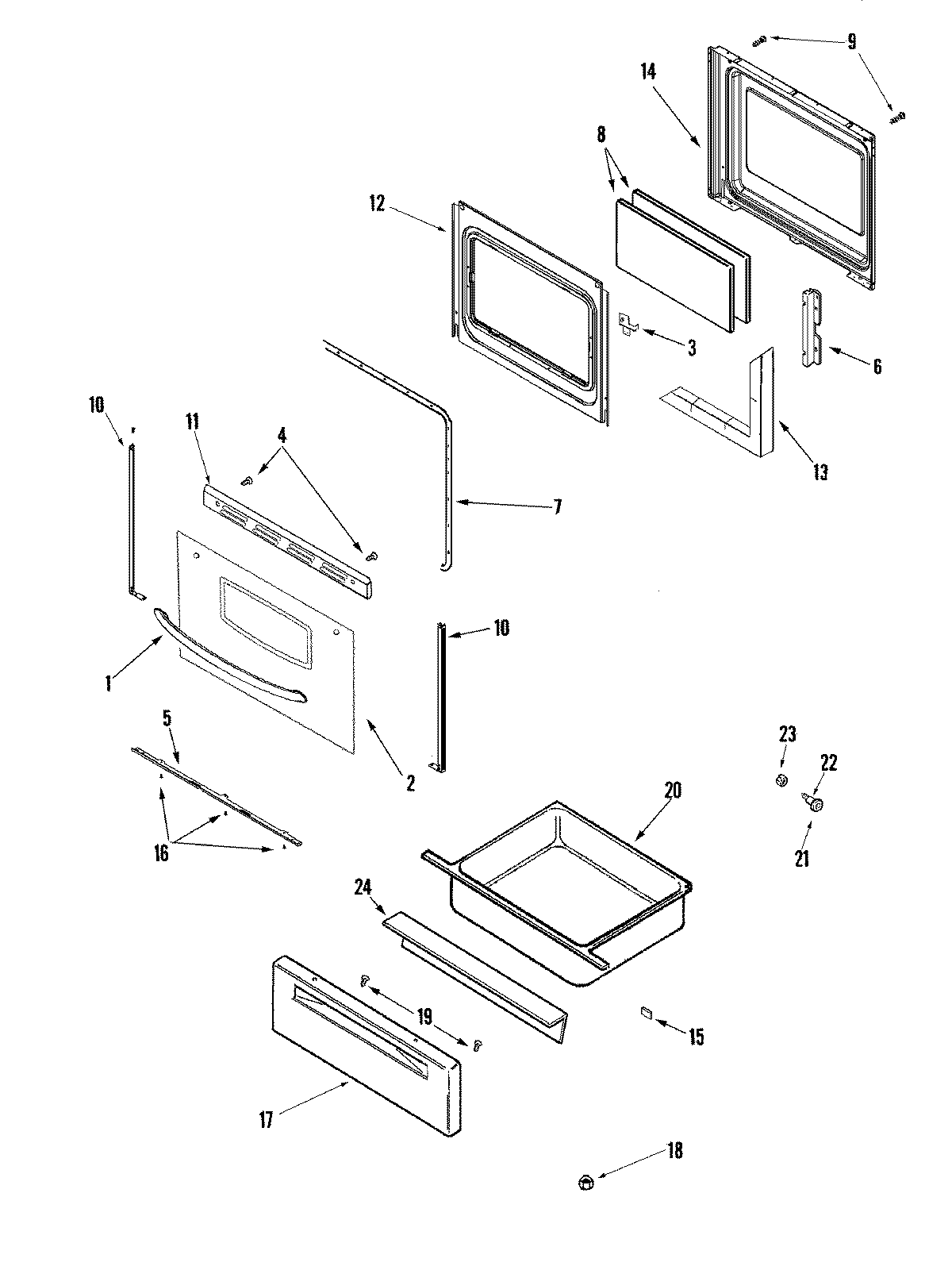

CGR3725ADB 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74010338
1MAY 7701P539-60
2MAY 74010345
2MAY 74003146
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
4MAY 74001521
5SUPPORT, GLASS (BLK)
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
9SCREW
10WP74004224 Whirlpool Tape
10WP3608F116-70 Whirlpool Door Trim
10WP3608F117-70 Whirlpool Door Trim
10WP98008545 Whirlpool Screw
11MAY 7101P356-60
11MAY 74010239
12MAY 74006536
12MAY 74009943
12BAFFLE, OVEN DOOR
12WP90767 Whirlpool Screw
13MAY 71003047
13MAY 74001842
14LINING, OVEN DOOR
14MAY 74004827
14NUT, SNAP (ROUND-BLK)
15WP74005546 Whirlpool RU Spacer
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74010429
24LINING, DRAWER PANEL
