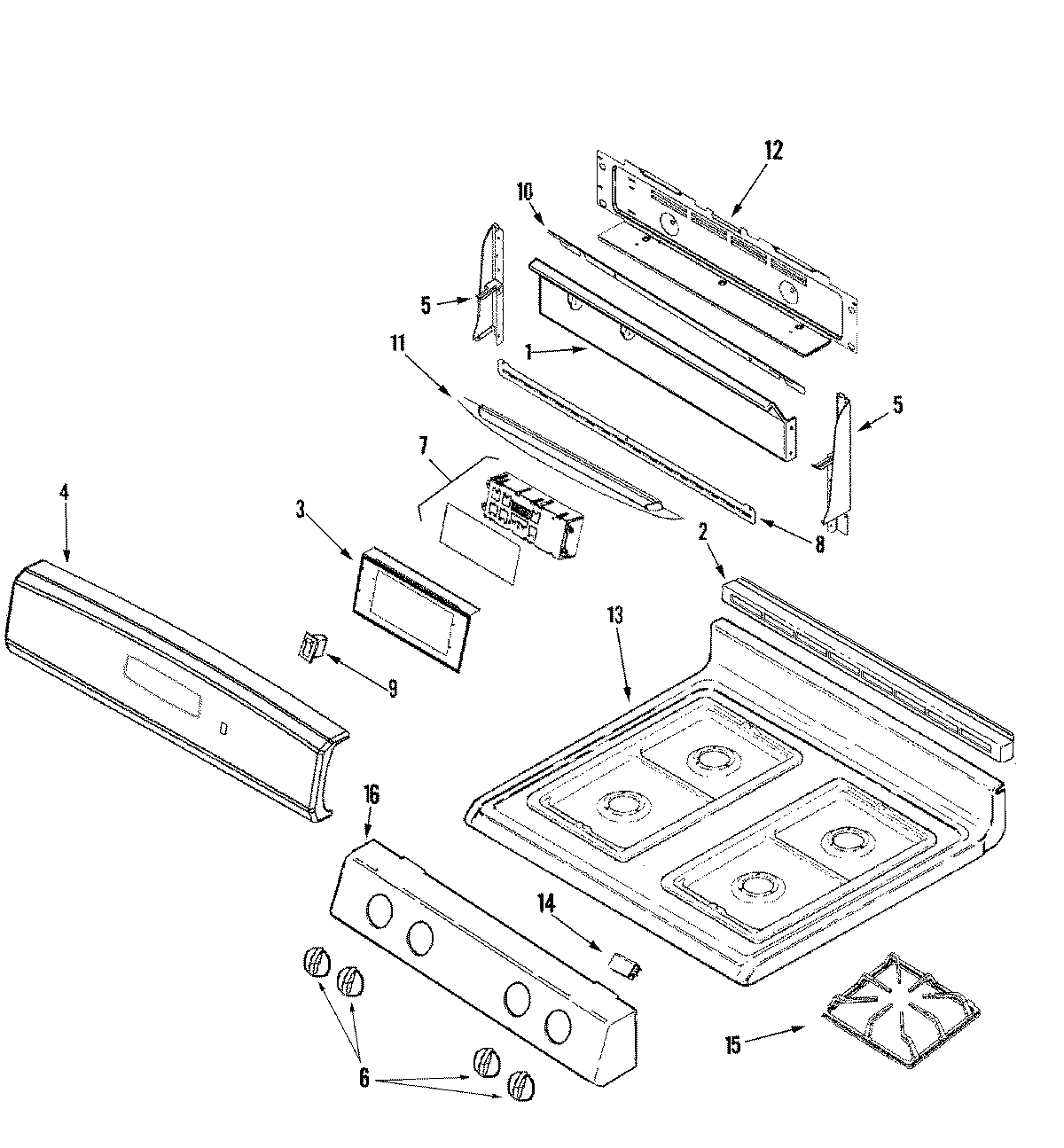

CGR3725ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

CGR3725ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

CGR3725ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2SCREW (10ABX1/4P TR ZN)
2MAY 74009797
3MAY 74008716
4MAY 74008836
4MAY 74010428
5MAY 74010214
5WP74009541 Whirlpool Screw Assembly
5MAY 74010213
6MAY 74009846
6MAY 74010434
7MAY 74010317
7WP74003976 Whirlpool Screw
8MAY 74009780
974008765 Whirlpool Range Oven Rocker Switch Bisque
10MAY 74009978
10SCREW
11MAY 74009803
11MAY 74009798
12MAY 74009943
12WP90767 Whirlpool Screw
12MAY 71001394
12MAY 74006536
13WP74005546 Whirlpool RU Spacer
13MAY 74004964
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74010431
