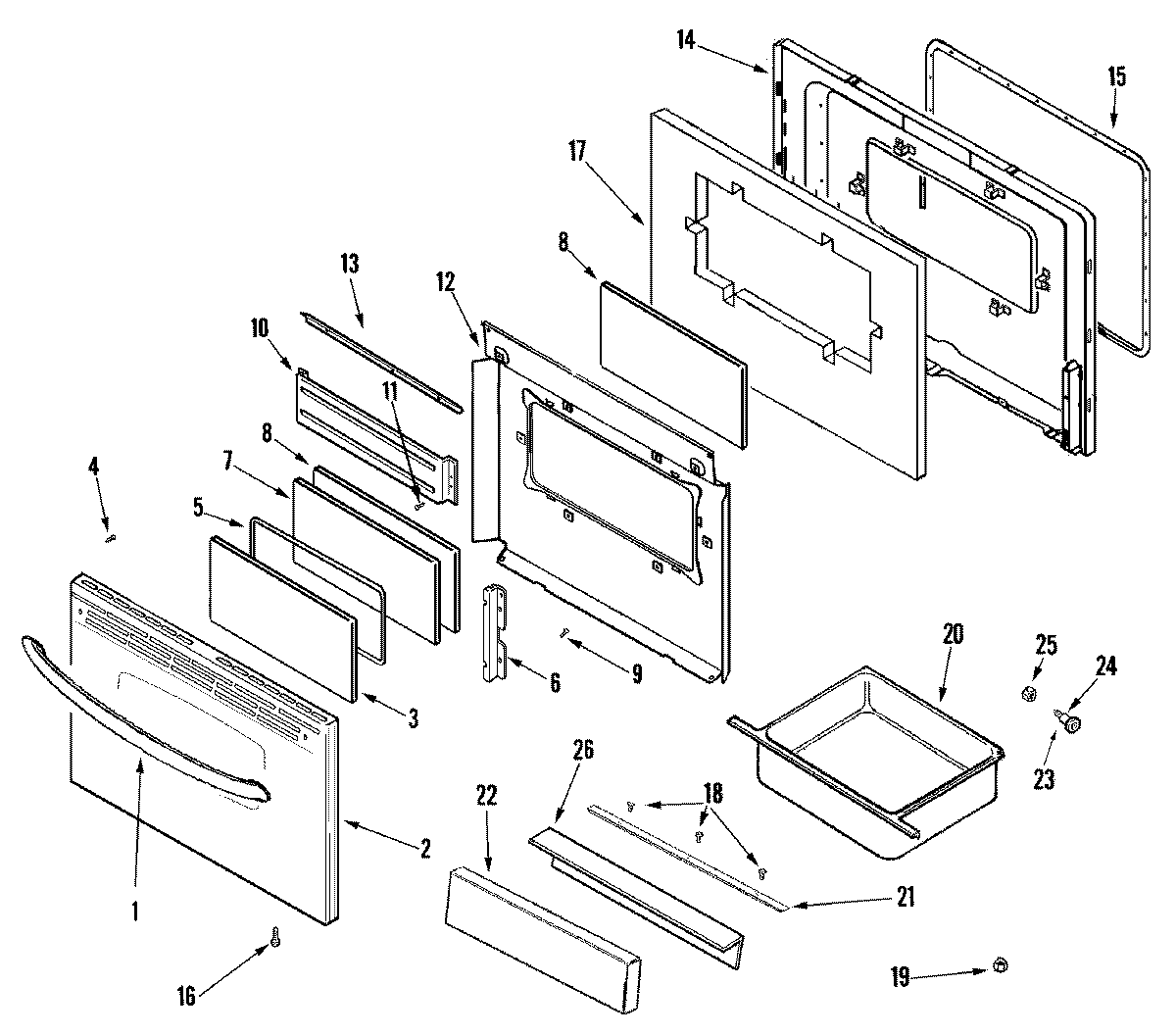

CGR3725ADS 03 – DOOR/DRAWER (STL)

CGR3725ADS 03 – DOOR/DRAWER (STL)

Written by

in

CGR3725ADS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 7701P539-60
1MAY 74010338
2MAY 74010355
2MAY 74010298
3MAY 74001072
4NUT, SNAP (ROUND-BLK)
4WP74006515 Whirlpool Washer Screw
5MAY 7201P017-60
6MAY 74003048
7MAY 74002002
8GLASS, INNER
10MAY 74005458
12BAFFLE, OVEN DOOR
13MAY 74004902
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16SCREW
17MAY 74001842
19WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21HANDLE, DRAWER (STL)
22MAY 74009840
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WP74004078 Whirlpool Door Roller
26LINING, DRAWER PANEL
