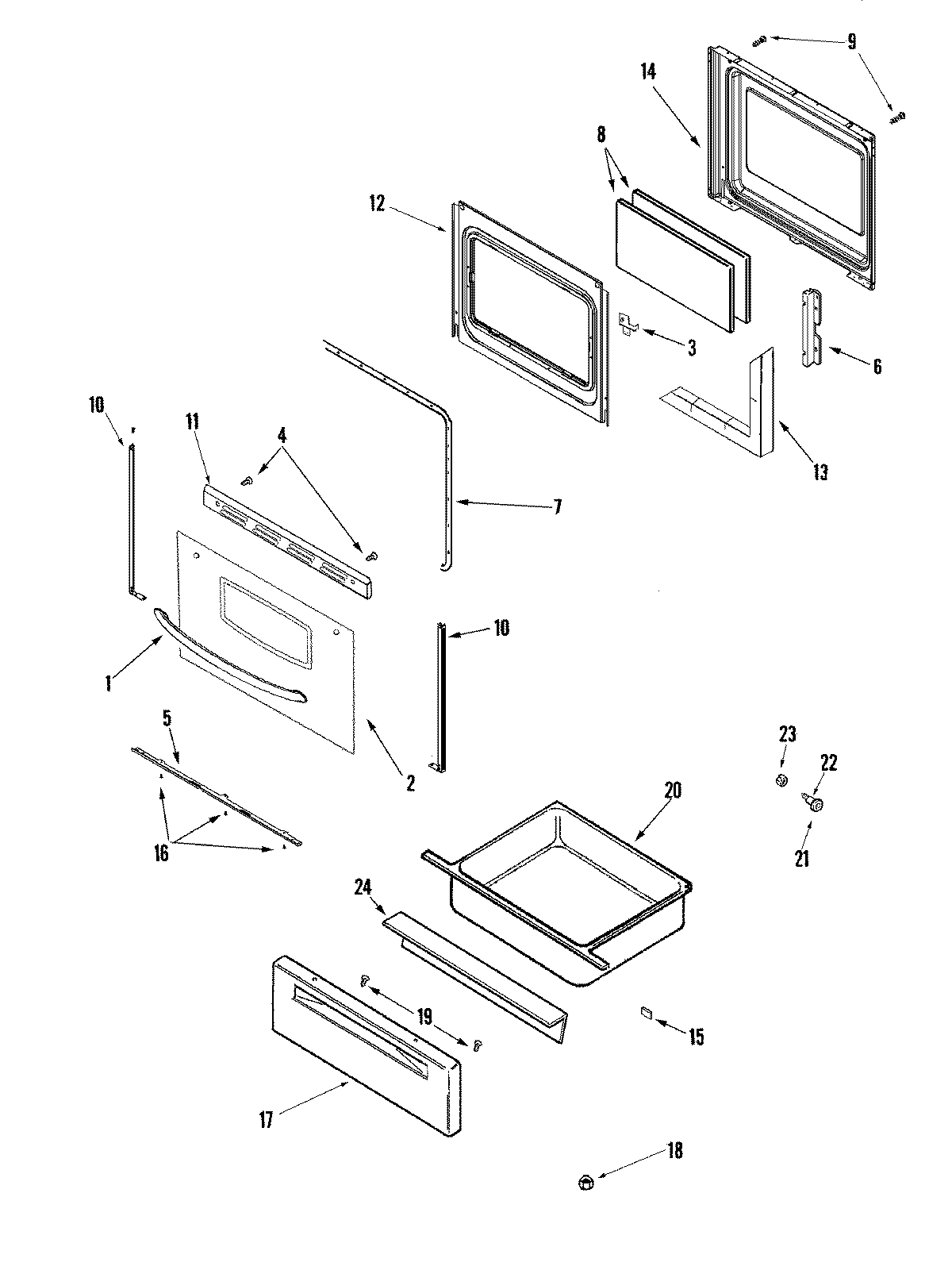

CGR3726ADW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74010337
2	MAY 74010344
2	MAY 74003146
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
4	MAY 74001521
5	WP3807F708-71 Whirlpool Support
6	MAY 74001844
7	GASKT-DOOR OVEN
8	GLASS, INNER
9	SCREW
10	WP3608F117-71 Whirlpool Door Trim
10	WP3608F116-71 Whirlpool Door Trim
10	WP74004224 Whirlpool Tape
11	MAY 74010238
11	WP98008544 Whirlpool Screw Assembly
12	BAFFLE, OVEN DOOR
13	MAY 74001842
14	LINING, OVEN DOOR
14	NUT, SNAP (ROUND-BLK)
15	WP74005546 Whirlpool RU Spacer
16	SCREW, 8 X 1/2
17	PANEL, DRAWER (WHT)
18	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008337
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
23	WP488130 Whirlpool Air Conditioner Nut
24	LINING, DRAWER PANEL
