CGR3740ADH 03 – DOOR/DRAWER (ADH, ADL)

CGR3740ADH 03 – DOOR/DRAWER (ADH, ADL)

Written by

in

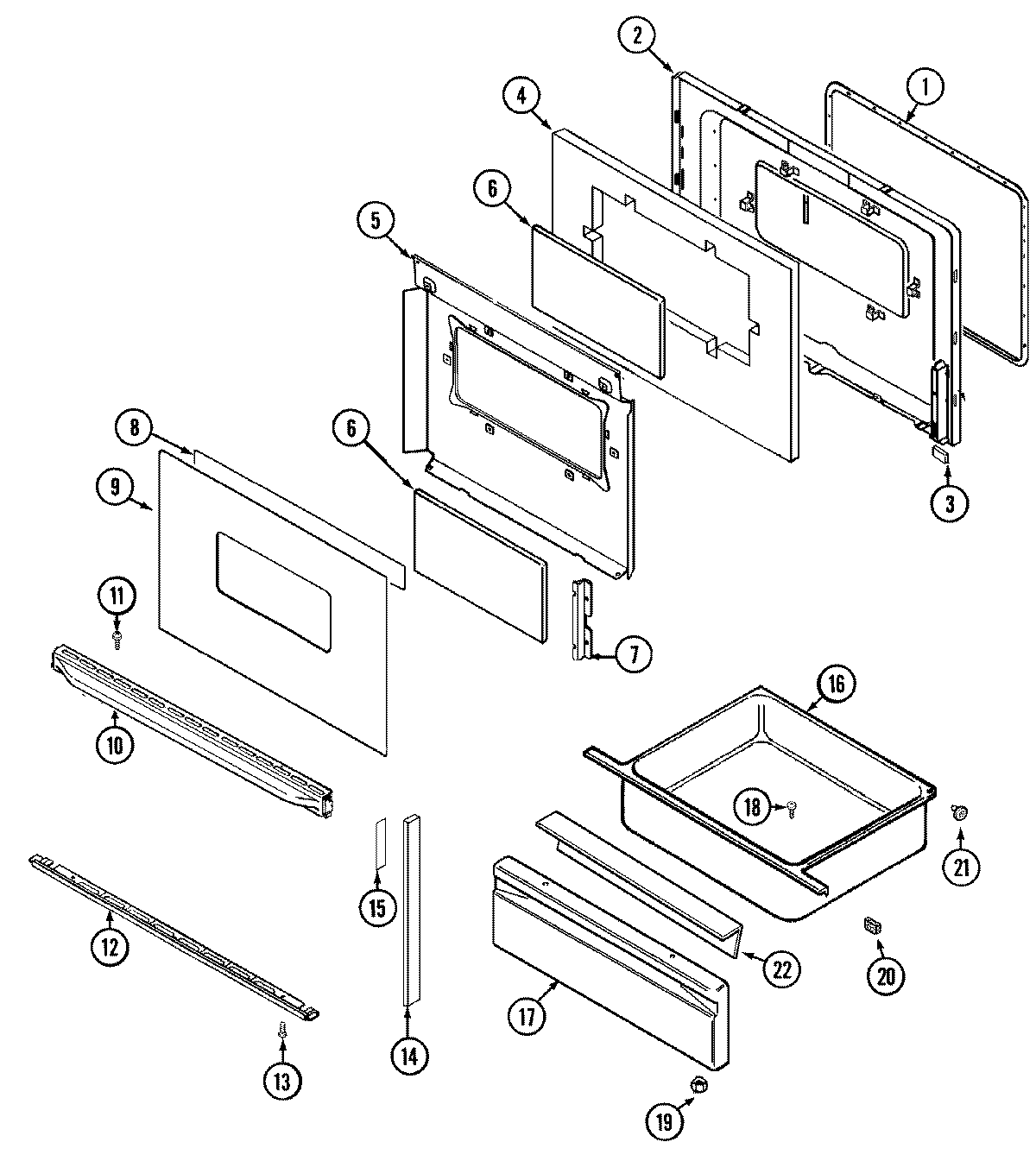

CGR3740ADH 03 – DOOR/DRAWER (ADH, ADL)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 74003244
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8MAY 8270P078-60
9MAY 74003431
10MAY 74003429
11SCREW (8ABX1/2“-BLK)
12MAY 74003432
13SCREW
14MAY 74003430
15MAY 8270P093-60
16MAY 71003042
17PANEL, DRAWER (WHT)
18MAY 7101P037-60
19WPW10131078 Whirlpool Nut Assembly
20WP854334 Whirlpool Air Conditioner Sealing Strip
21WP488130 Whirlpool Air Conditioner Nut
21MAY 74003462
22LINING, DRAWER PANEL
