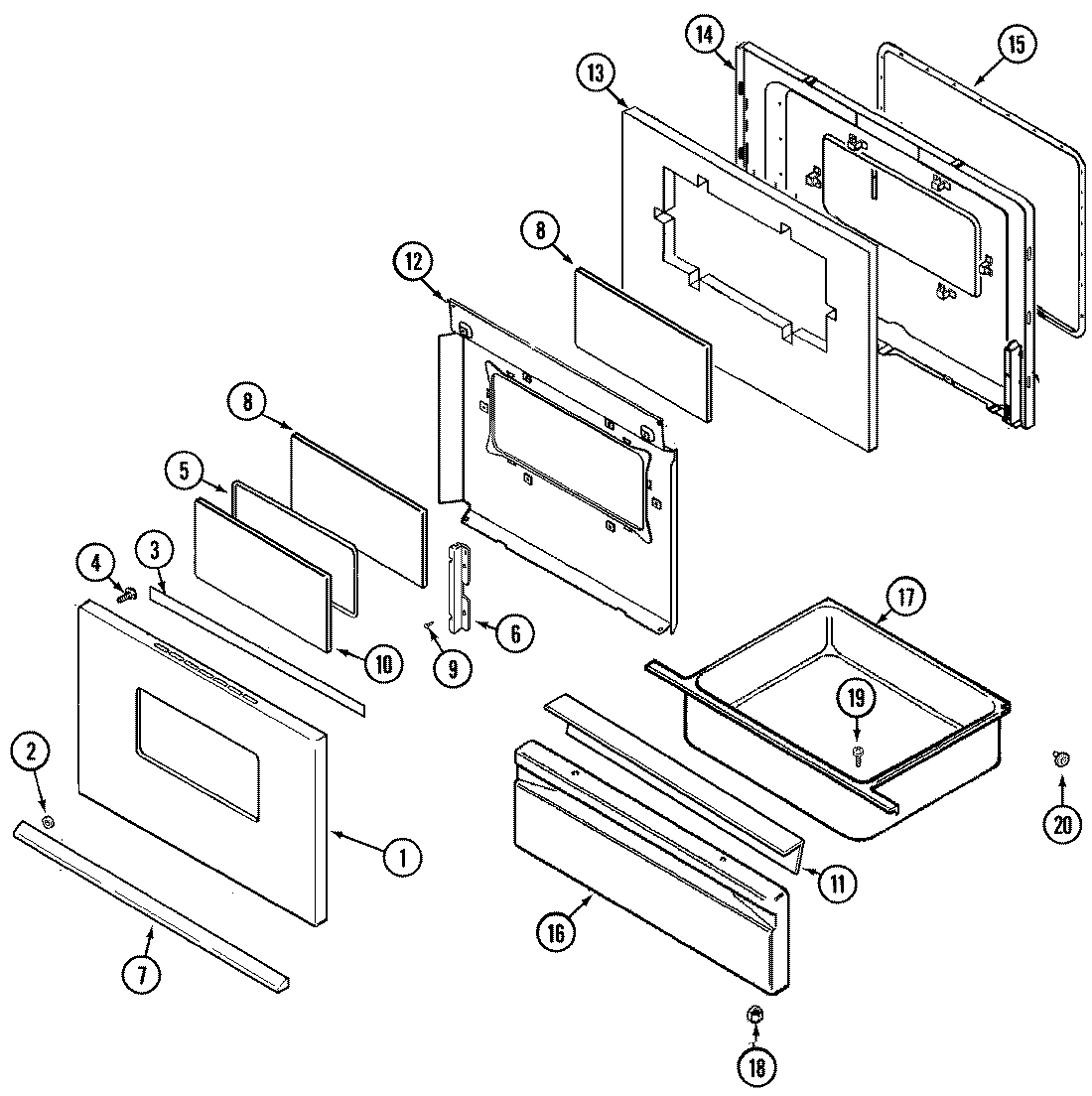

CGR3740BDW 03 – DOOR/DRAWER (BDW)

CGR3740BDW 03 – DOOR/DRAWER (BDW)

Written by

in

CGR3740BDW 03 – DOOR/DRAWER (BDW)

Products

PositionProduct
1MAY 74005267
1WP98008544 Whirlpool Screw Assembly
2WP74005058 Whirlpool Spacer Assembly
3MAY 74003472
3MAY 8270P078-60
4WP3387230 Whirlpool Screw
5MAY 7201P017-60
6MAY 74003048
7WP2411F013-71 Whirlpool Door Handle
8GLASS, INNER
9SCREW
10MAY 74003049
11LINING, DRAWER PANEL
12MAY 74001843
13MAY 74001842
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16PANEL, DRAWER (WHT)
17MAY 71003042
18WPW10131078 Whirlpool Nut Assembly
20WP488130 Whirlpool Air Conditioner Nut
20WP74004078 Whirlpool Door Roller
20MAY 74004079
