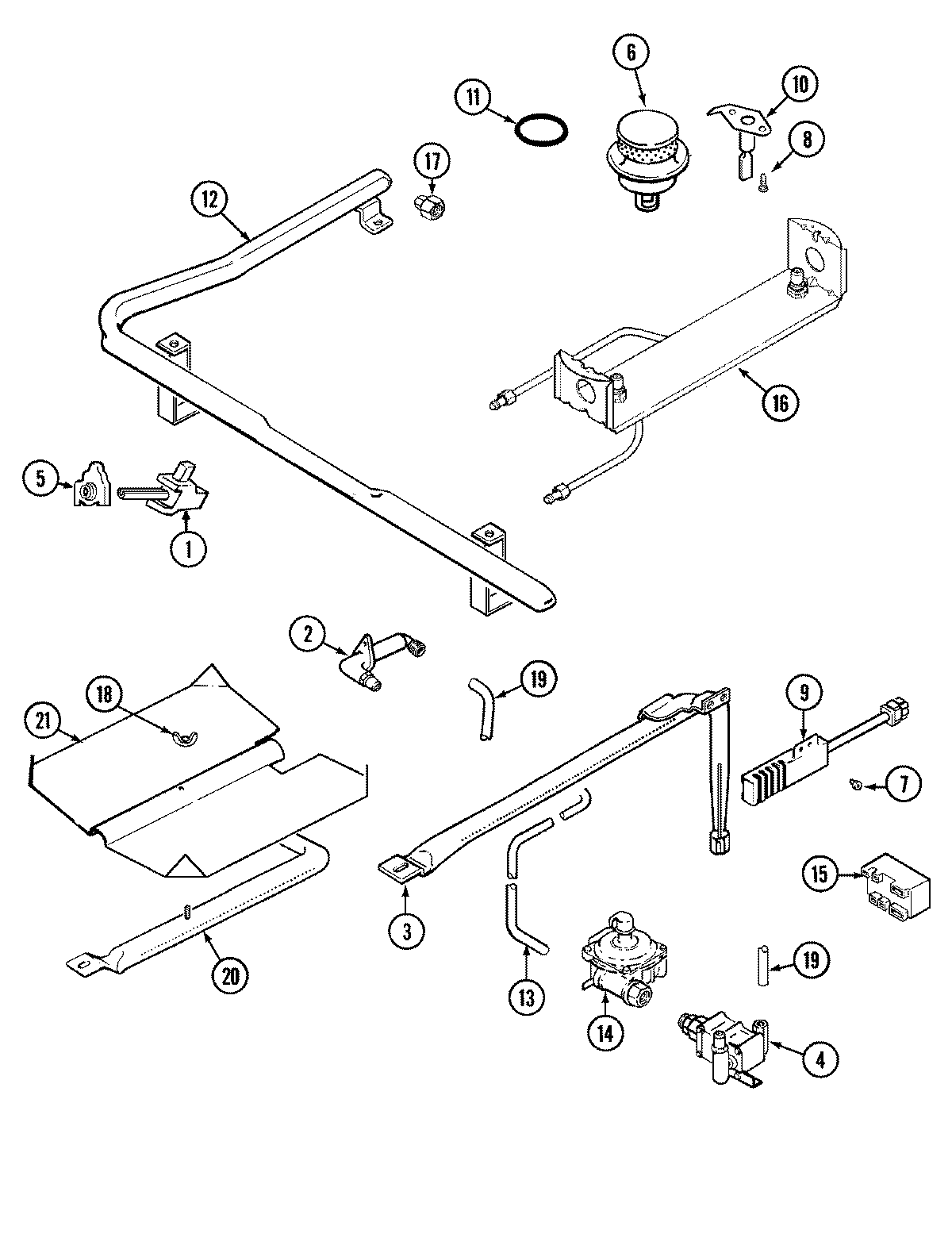

CGR3742ADC 04 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	MAY 71003540
NI	MAY 5140D035-60
1	MAY 7101P044-60
1	MAY 7502P251-60
2	MAY 7507P088-60
2	MAY 3605F186-45
2	WP3387230 Whirlpool Screw
3	MAY 3403D043-45
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 3412D018-09
7	WP3351614 Whirlpool Screw
8	MAY 7101P315-60
9	MAY 4005F421-45
9	MAY 7432P076-60
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
11	MAY 74002745
12	MAY 74003504
13	MAY 3414F103-44
14	WP74006429 Whirlpool Regulator
15	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
15	MAY 74003288
16	WP5787M052-60 Whirlpool Fitting
16	MAY 74003506
17	MAY 7103P121-60
18	NUT, WING
19	MAY 3414F102-44
19	MAY 1555258K
20	MAY 3403D024-45
21	SCREW
21	MAY 3601F217-47
