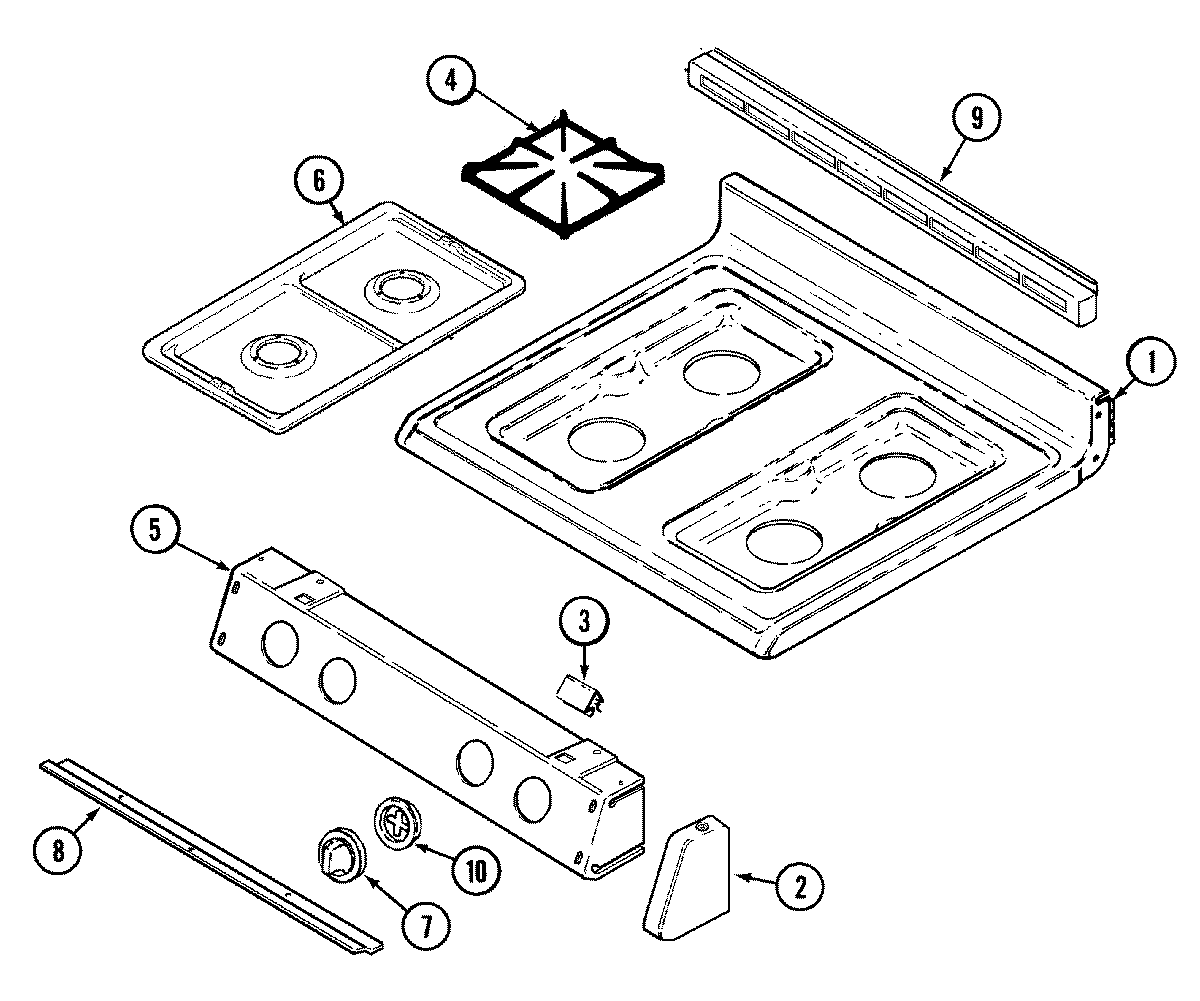

CGR3742ADC 06 – TOP ASSEMBLY

CGR3742ADC 06 – TOP ASSEMBLY

Written by

in

CGR3742ADC 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74003496
1MAY 74001428
2MAY 74003860
2MAY 74003498
2MAY 74003497
3MAY 7112P087-60
3MAY 74004827
4MAY 74001769
5MAY 7101P074-60
5MAY 74003882
5SCREW (8BX3/8-NI)
6MAY 5401A452-60
7WP74003781 Whirlpool Valve Knob
8SCREW
8MAY 74002447
9SCREW (10ABX1/4P TR ZN)
9MAY 74003501
10WP7740P058-60 Whirlpool Knob Bezel
