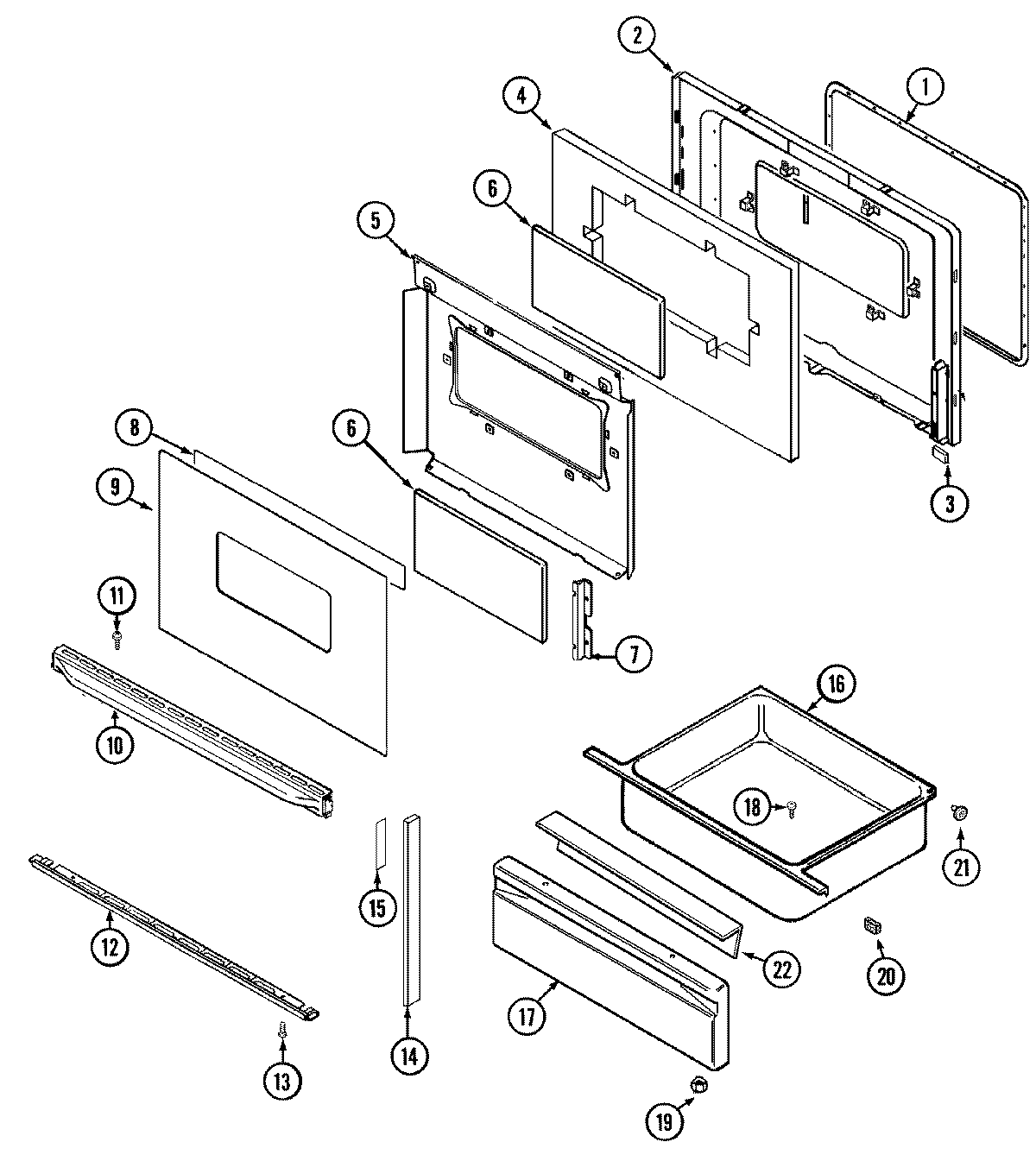

CGR3742BDQ 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	LINING, OVEN DOOR
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	GLASS, INNER
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 74005041
10	MAY 74005042
11	WP74009541 Whirlpool Screw Assembly
12	MAY 74005043
13	SCREW
14	MAY 74005044
15	MAY 74004075
16	MAY 71003042
17	PANEL, DRAWER (BSQ)
19	WPW10131078 Whirlpool Nut Assembly
20	WP854334 Whirlpool Air Conditioner Sealing Strip
21	MAY 74004079
21	WP488130 Whirlpool Air Conditioner Nut
21	WP74004078 Whirlpool Door Roller
22	LINING, DRAWER PANEL
