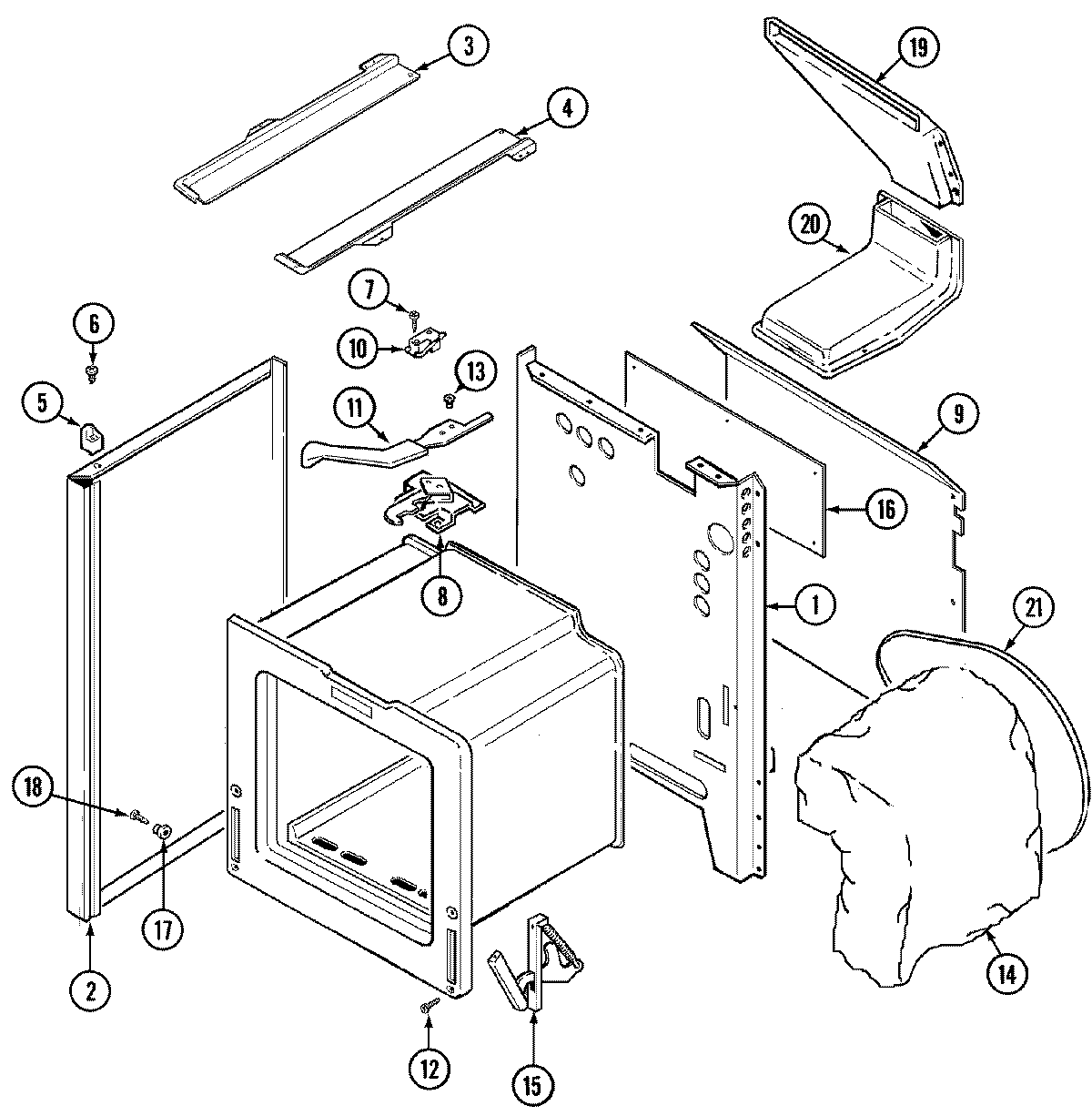

CGR3742CDT 01 – BODY

Products

Position	Product
1	MAY 74005216
1	MAY 74006548
1	GROMMET
1	MAY 8008P021-60
2	MAY 74004965
2	TAPE, FOIL (3“ WIDE)
3	MAY 74002633
4	MAY 74002632
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7101P313-60
7	MAY 7101P330-60
8	MAY 74001084
8	MAY 74003139
8	MAY 12001942
8	MAY 74003502
9	MAY 74003816
10	MAY 74003383
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 7003P063-60
11	LEVER, LATCH (BLK)
12	SCREW (10-24X5/16-NI)
13	SCREW, LEVER
14	WP74010942 Whirlpool Insulation
14	MAY 74003381
15	WP74011140 Whirlpool Oven Hinge
16	SCREW
16	MAY 3604F165-51
17	MAY 8004P024-60
18	MAY 74001449
18	W11693756 Whirlpool Screw Assembly
19	MAY 4022W007-19
19	SCREW (8BX3/8-NI)
20	WP74003976 Whirlpool Screw
20	MAY 74006420
21	MAY 74003385
