CGR3760BDQ 03 – DOOR/DRAWER

CGR3760BDQ 03 – DOOR/DRAWER

Written by

in

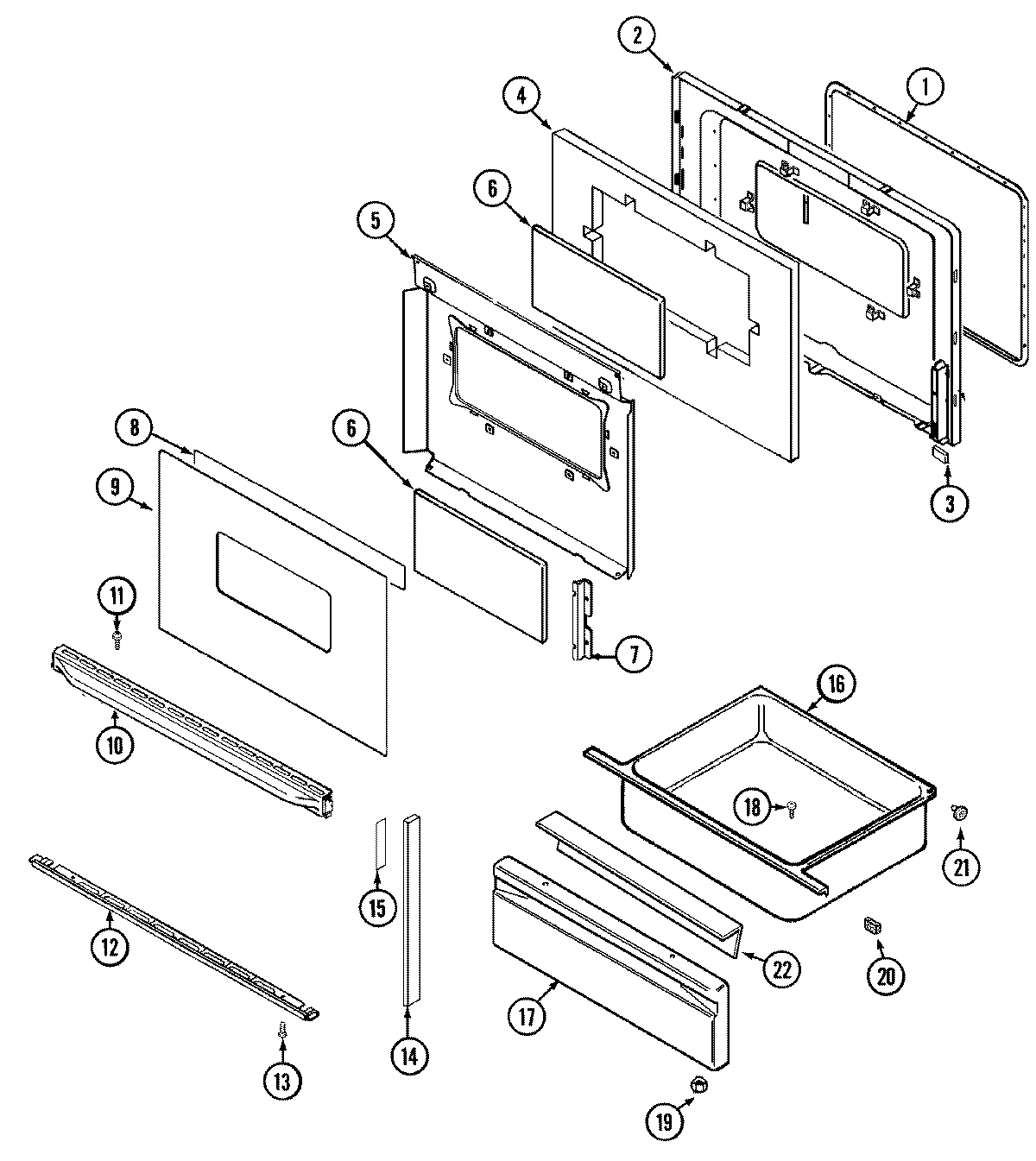

CGR3760BDQ 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2LINING, OVEN DOOR
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74005041
10MAY 74005042
11WP74009541 Whirlpool Screw Assembly
12MAY 74005043
13SCREW
14MAY 74005044
15MAY 74004075
16MAY 71003042
17PANEL, DRAWER (BSQ)
19WPW10131078 Whirlpool Nut Assembly
20WP854334 Whirlpool Air Conditioner Sealing Strip
21MAY 74004079
21WP488130 Whirlpool Air Conditioner Nut
21WP74004078 Whirlpool Door Roller
22LINING, DRAWER PANEL
