CGR3765ADC 01 – BODY

CGR3765ADC 01 – BODY

Written by

in

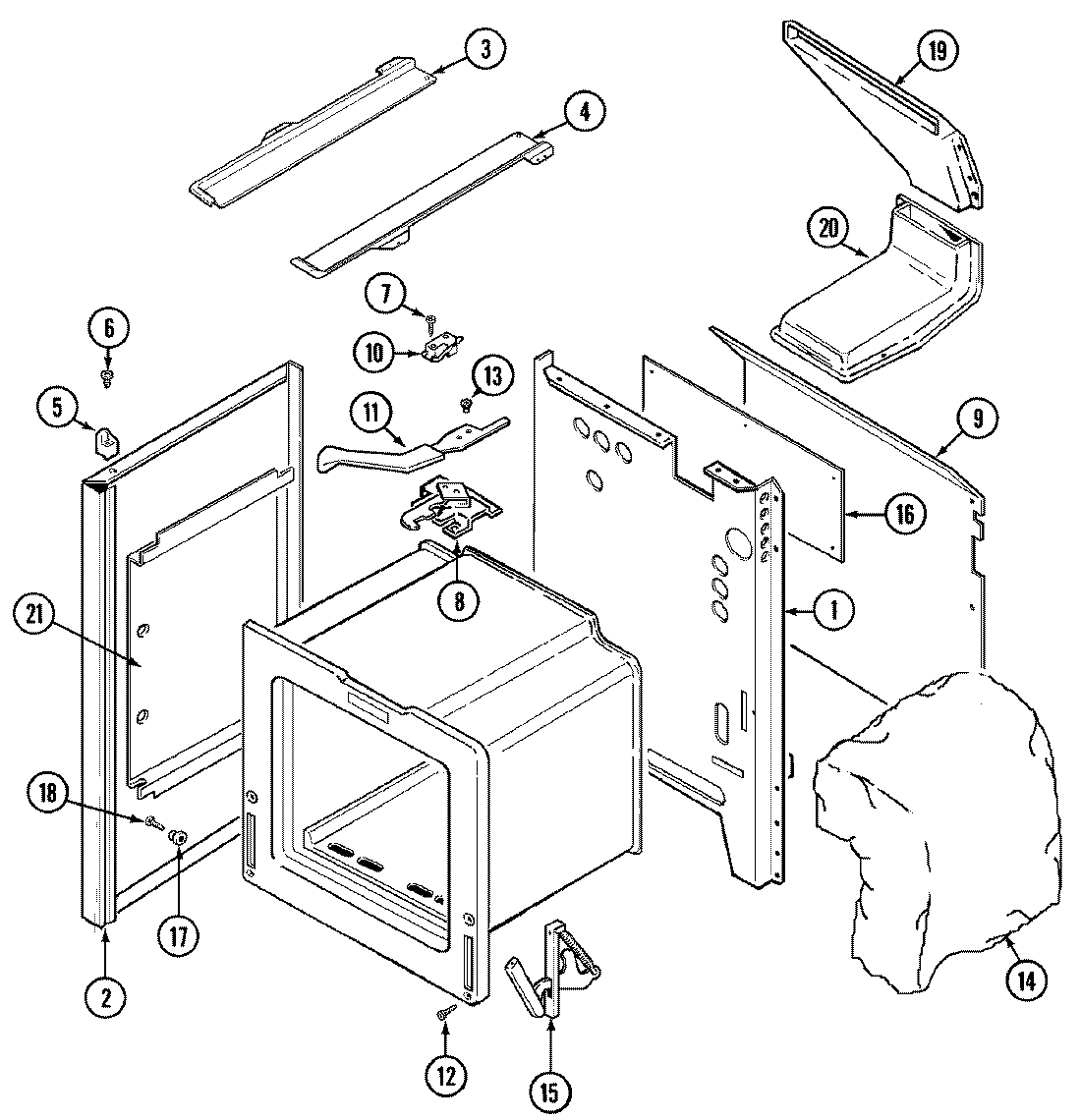

CGR3765ADC 01 – BODY

Products

PositionProduct
1MAY 74003451
2MAY 74003283
2MAY 8270P078-60
3MAY 74002633
4MAY 74002632
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7MAY 7101P330-60
8MAY 74001084
8MAY 74003502
9MAY 4005F331-51
10MAY 74003383
11LEVER, LATCH (BLK)
12SCREW (10-24X5/16-NI)
13SCREW, LEVER
14MAY 74003381
14WP74010942 Whirlpool Insulation
15HINGE-OVEN DOOR
16MAY 3604F165-51
17MAY 8004P024-60
18SCREW
19MAY 4022W007-19
20MAY 74002367
21MAY 74003422
