CGR3765BDC 03 – DOOR/DRAWER

CGR3765BDC 03 – DOOR/DRAWER

Written by

in

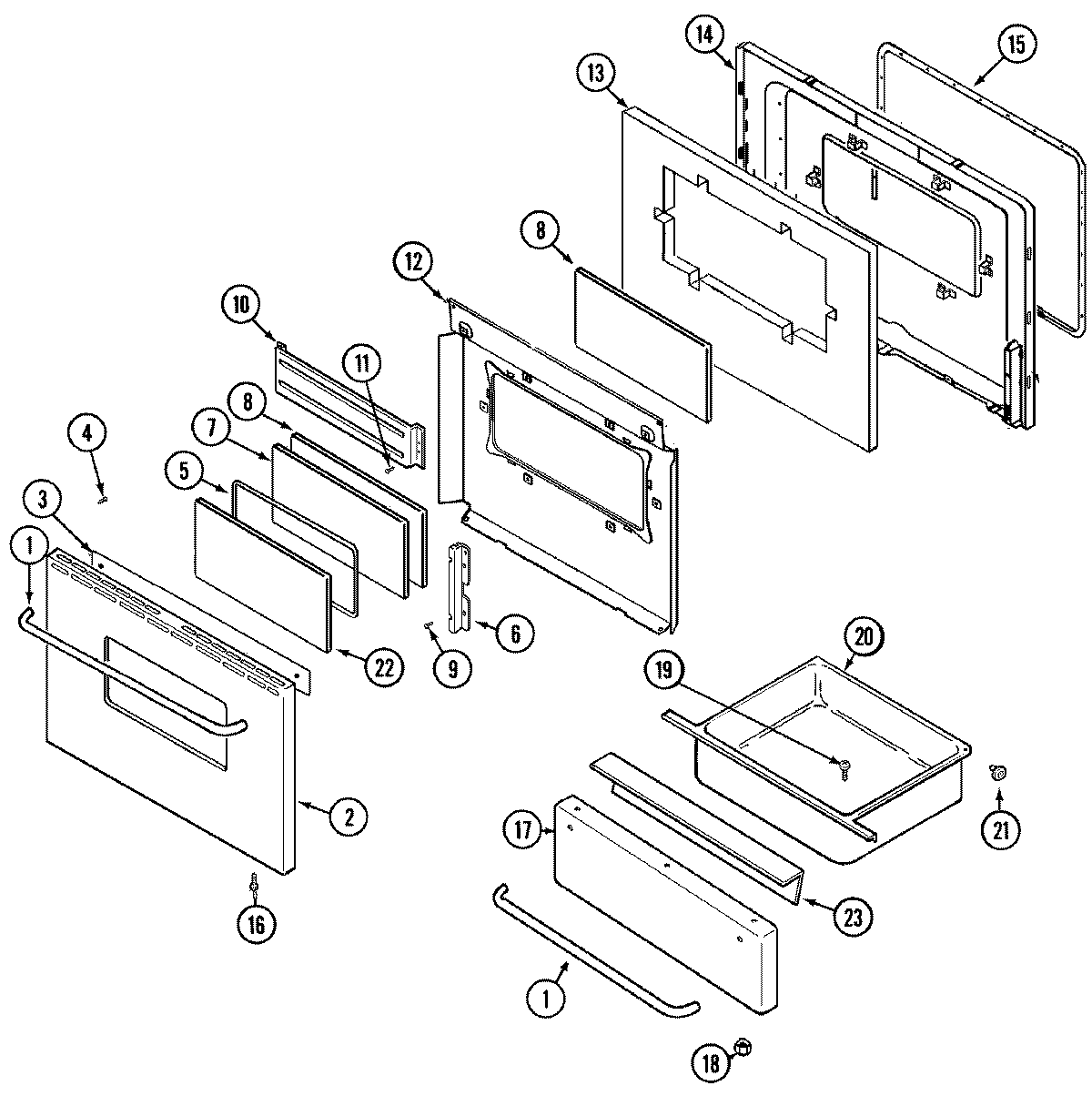

CGR3765BDC 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74001071
2MAY 74005271
3MAY 74003146
4MAY 74001521
5GASKET, WINDOW
6MAY 74003048
7MAY 74002002
8GLASS, INNER
10MAY 74004901
11MAY 7101P356-60
12MAY 74001843
13MAY 74001842
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16SCREW
17MAY 74003312
18WPW10131078 Whirlpool Nut Assembly
20MAY 71003042
21MAY 74004079
21WP488130 Whirlpool Air Conditioner Nut
21WP74004078 Whirlpool Door Roller
22MAY 74001072
23LINING, DRAWER PANEL
