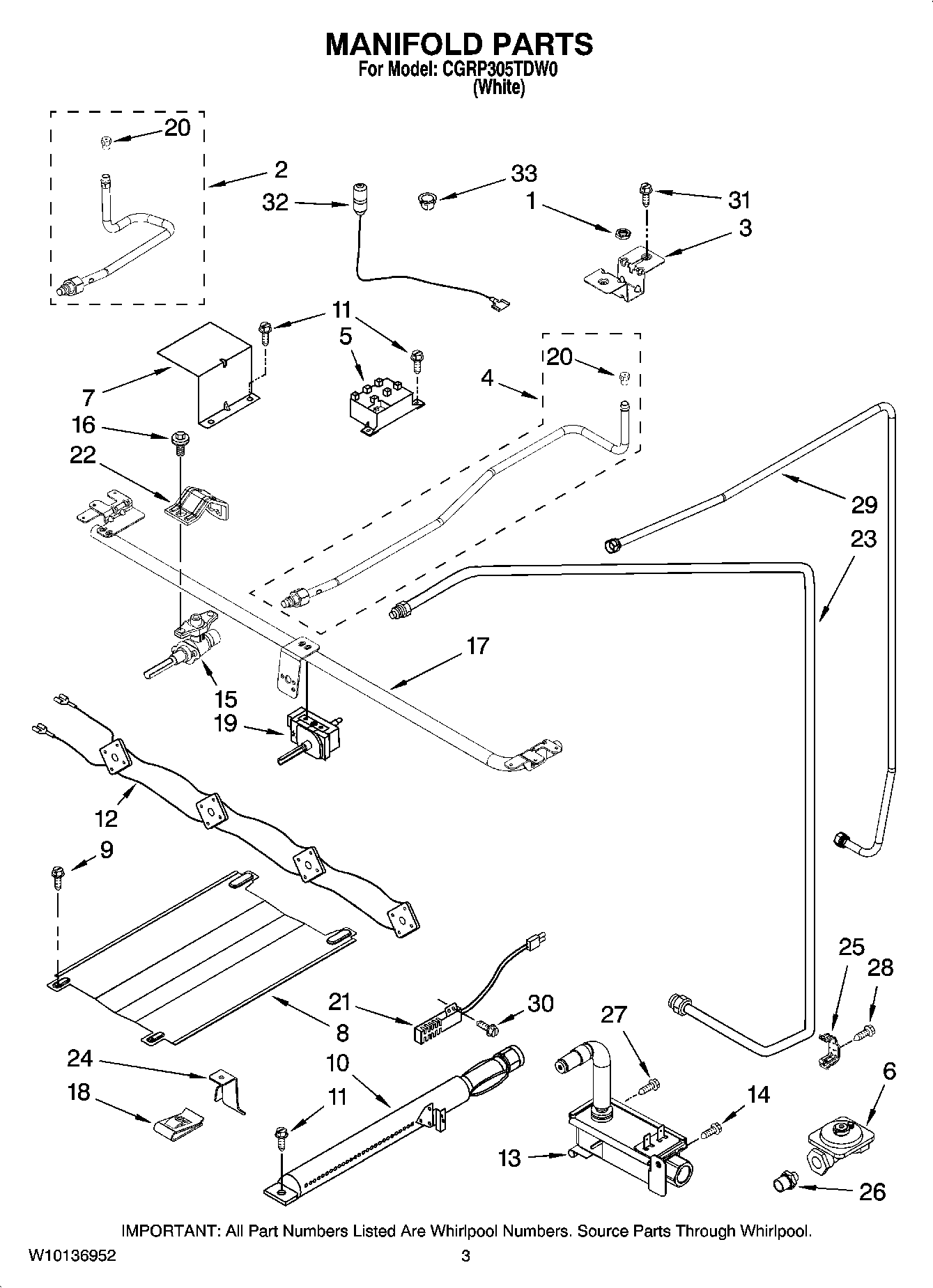

CGRP305TDW0 03 – MANIFOLD PARTSadmin2025-04-26T09:33:32+00:00CGRP305TDW0 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| 1 | NUT |
| 2 | VENTURI, FRONT (RF) |
| 3 | BRACKET, VENTURI |
| 4 | VENTURI, REAR |
| 5 | MAY 6610341 |
| 6 | MAY 98007411 |
| 7 | MAY 98007192 |
| 8 | SPREAD, FLAME (BAKE) |
| 9 | SCREW |
| 10 | MAY 98012138 |
| 12 | MAY 98014545 |
| 13 | MAY 98014893 |
| 14 | SCREW |
| 15 | MAY 98017498 |
| 16 | MAY 98017517 |
| 17 | MAY 98017558 |
| 18 | U-NUT |
| 19 | MAY 98003984 |
| 20 | Orifice (RF, RR, LR) |
| 21 | Igniter, Oven Oven Pilot) |
| 22 | BRACKET, VALVE |
| 23 | TUBING (REGULATOR TO OVEN VALVE) |
| 24 | MAY 98013314 |
| 25 | MAY 98007410 |
| 26 | MAY 98007431 |
| 27 | MAY 98013634 |
| 28 | Screw |
| 29 | Tubing, Inlet |
| 30 | MAY 98005659 |
| 31 | MAY 98004484 |
| 32 | MAY 98017917 |
| 32 | MAY 98014516 |
| 32 | Igniter, Top (RF, RR) |
| 33 | MAY W10032010 |
| 33 | MAY 98015032 |
