CGS1230ADH 04 – OVEN/BASE – Aparts

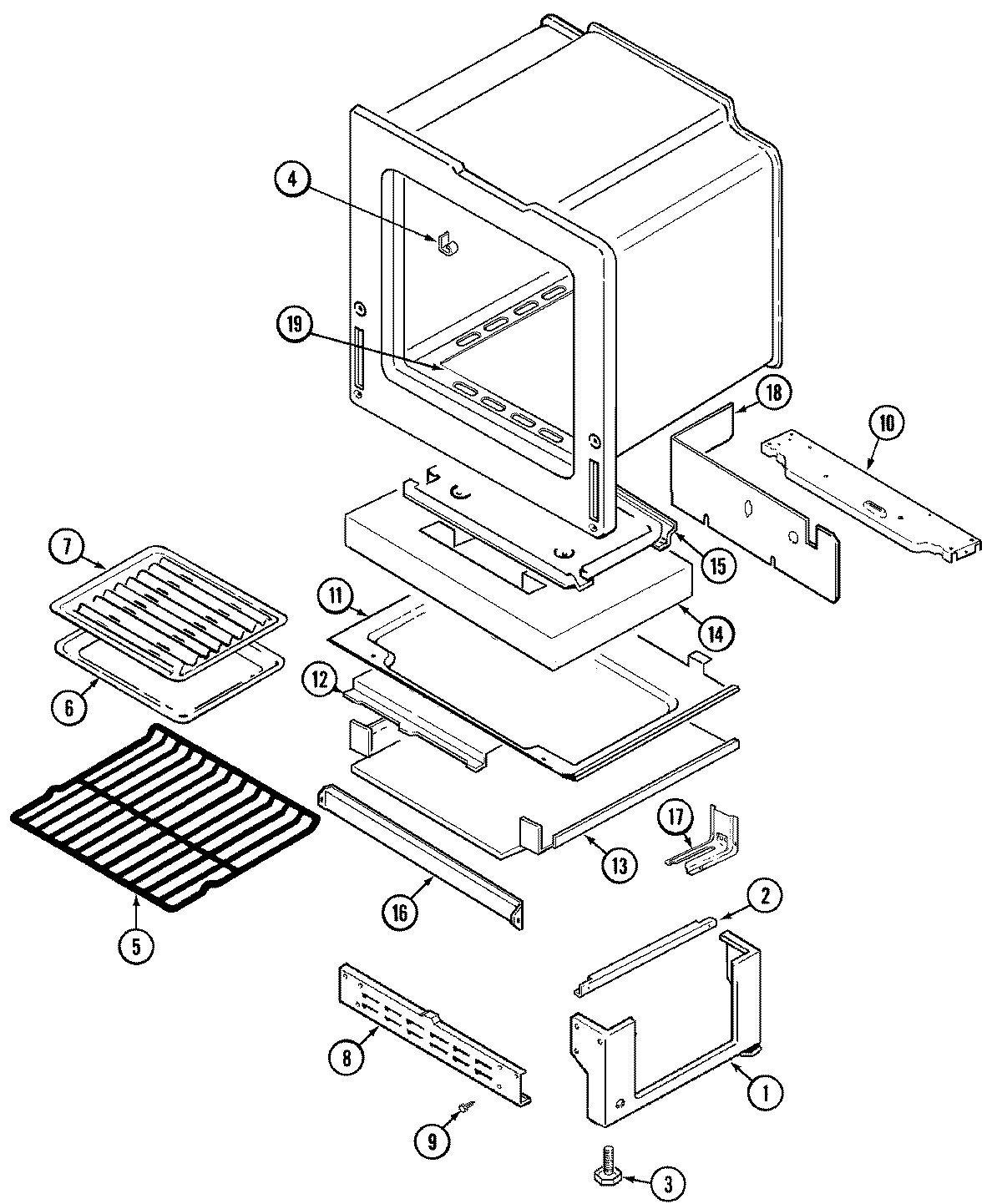

CGS1230ADH 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003405
2	RUNNER, DRAWER
3	W11665456 Whirlpool Range Level Foot
4	CLIP, THERMOSTAT BULB
5	WPW10282492 Whirlpool Oven Rack
6	MAY Y3401F02019
7	MAY Y3413F01619
8	MAY 4020F001-80
9	SCREW
10	MAY 74004167
11	MAY 74004296
12	MAY 3604F204-51
13	MAY 3604F205-51
14	MAY 74003503
15	MAY 74001651
16	BAFFLE, OVEN FRONT
17	MAY 74002311
17	MAY 7101P344-60
18	MAY 74003329
19	MAY 74002380
19	MAY 5504M004-19
