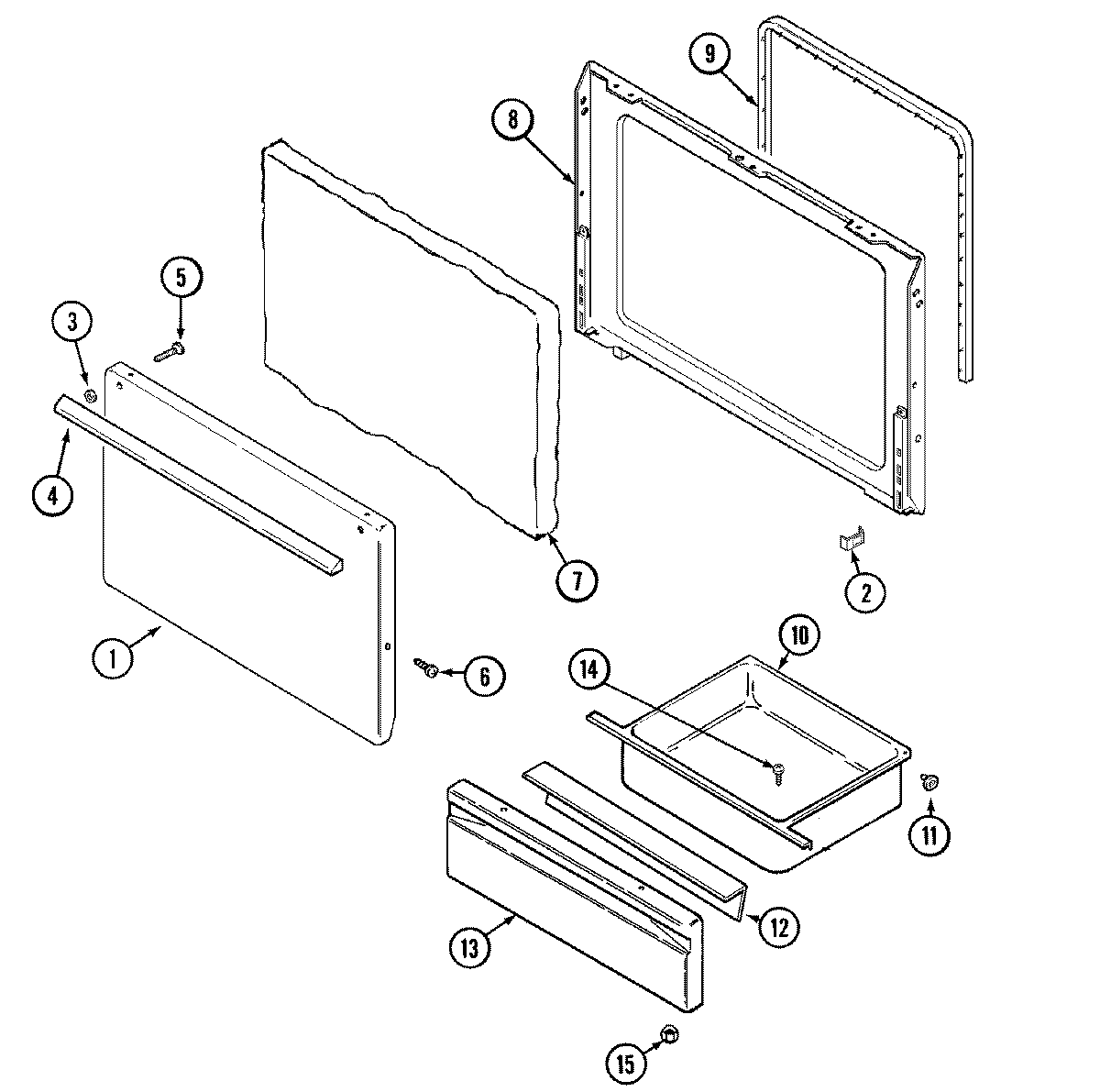

CGS1230ADL 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 2401F096-74
2	CLIP, DOOR
3	MAY 8010P084-60
4	WP2411F013-70 Whirlpool Door Handle
5	WP3387230 Whirlpool Screw
6	SCREW
7	MAY 4804F050-60
8	MAY 74003240
9	WP7212P043-60 Whirlpool Oven Door Seal Gasket
10	MAY 71003042
11	MAY 74003566
11	WP488130 Whirlpool Air Conditioner Nut
12	LINING, DRAWER PANEL
13	MAY 74003522
15	WPW10131078 Whirlpool Nut Assembly
