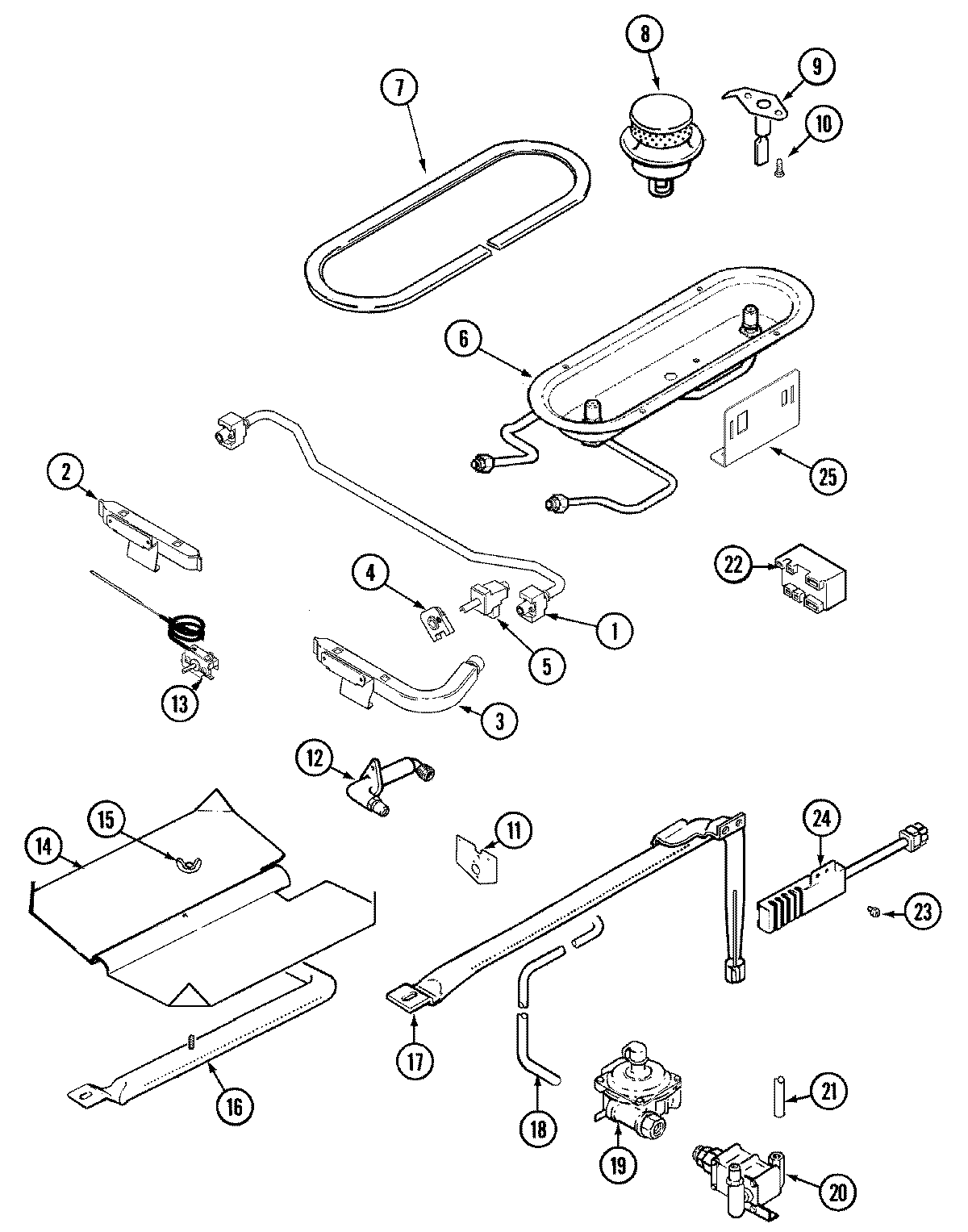

CGS1230ADT 02 – GAS CONTROLS

Products

Position	Product
1	MAY 74004298
2	MAY 74004300
3	MAY 74004301
4	MAY 74002533
4	WP7403P287-60 Whirlpool Igniter Switch
5	MAY 74004303
5	WP8273096 Whirlpool Screw
5	MAY 74004299
5	MAY 74004302
5	MAY 71003231
6	MAY 74004304
6	MAY 74004306
6	MAY 74004366
6	MAY 74004305
7	MAY 74006056
8	WP3412D024-09 Whirlpool Oven Burner Head
9	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
10	MAY Y707113
11	MAY 74004307
12	MAY 7507P088-60
13	MAY 74004308
14	MAY 3601F217-45
15	NUT, WING
16	MAY 74004076
17	MAY 74003960
17	MAY 3807F446-45
18	MAY 74004462
19	WP74006429 Whirlpool Regulator
20	WP74006427 Whirlpool Oven Valve
20	MAY 74007621
21	MAY 74004408
21	MAY 1555258K
22	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
23	SCREW (10-24X5/16-NI)
24	MAY 7432P075-60
24	MAY 4005F421-45
25	WP74007593 Whirlpool Orifice
25	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
