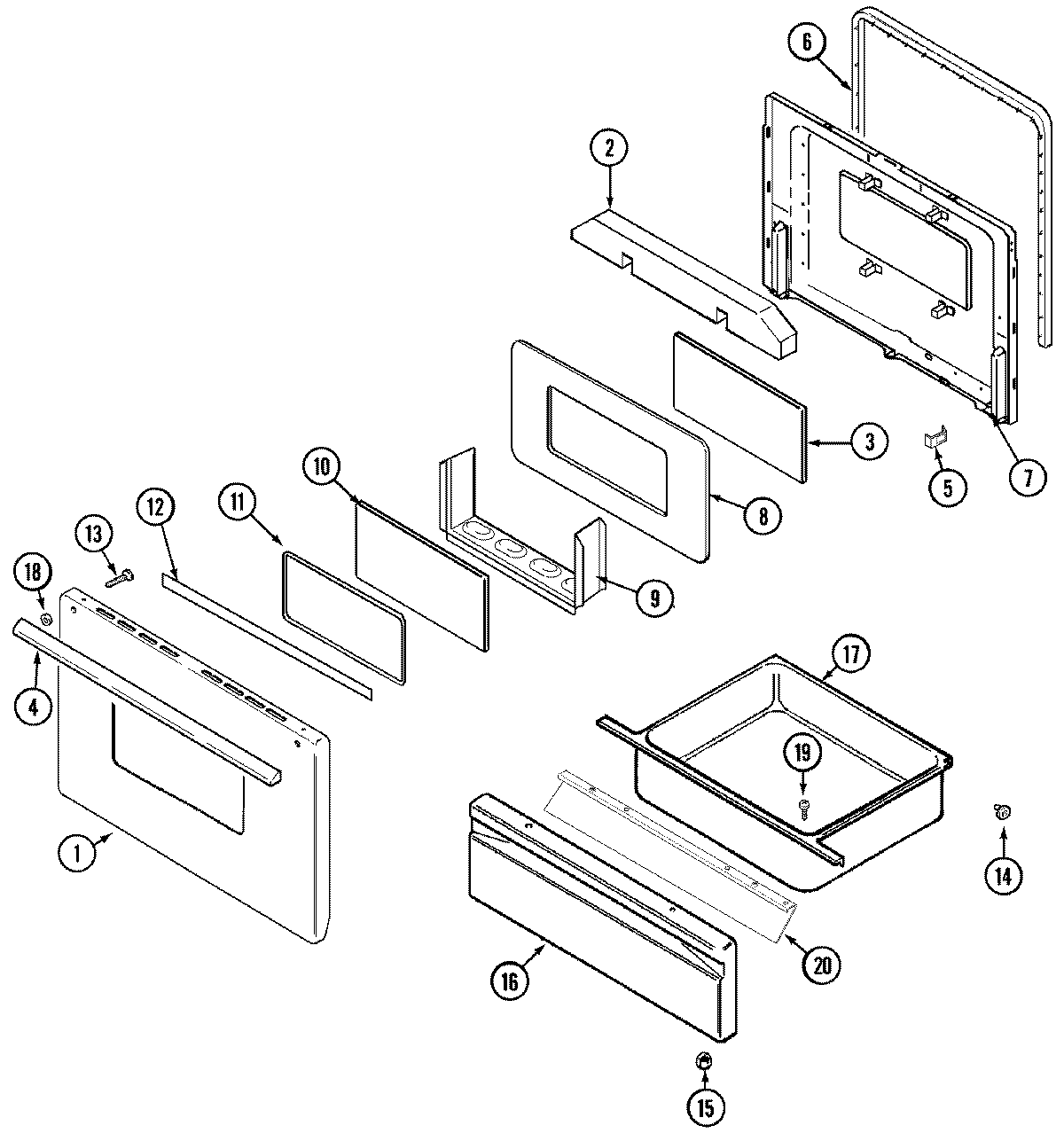

CGS1740ADL 02 – DOOR/DRAWER

CGS1740ADL 02 – DOOR/DRAWER

Written by

in

CGS1740ADL 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 2401F121-74
2MAY 74002458
3MAY 74002459
4WP2411F013-70 Whirlpool Door Handle
5CLIP, DOOR
6WP7212P043-60 Whirlpool Oven Door Seal Gasket
7MAY 74003248
8MAY 7101P209-60
8MAY 74002461
9MAY 74002462
10MAY 74002463
11MAY 7201P017-60
12TAPE, FOIL (3“ WIDE)
13WP3387230 Whirlpool Screw
14MAY 74003566
14WP488130 Whirlpool Air Conditioner Nut
15WPW10131078 Whirlpool Nut Assembly
16MAY 74003522
17MAY 71003042
18MAY 8010P084-60
19WP7101P072-60 Whirlpool Screw
20LINING, DRAWER PANEL
20SCREW
